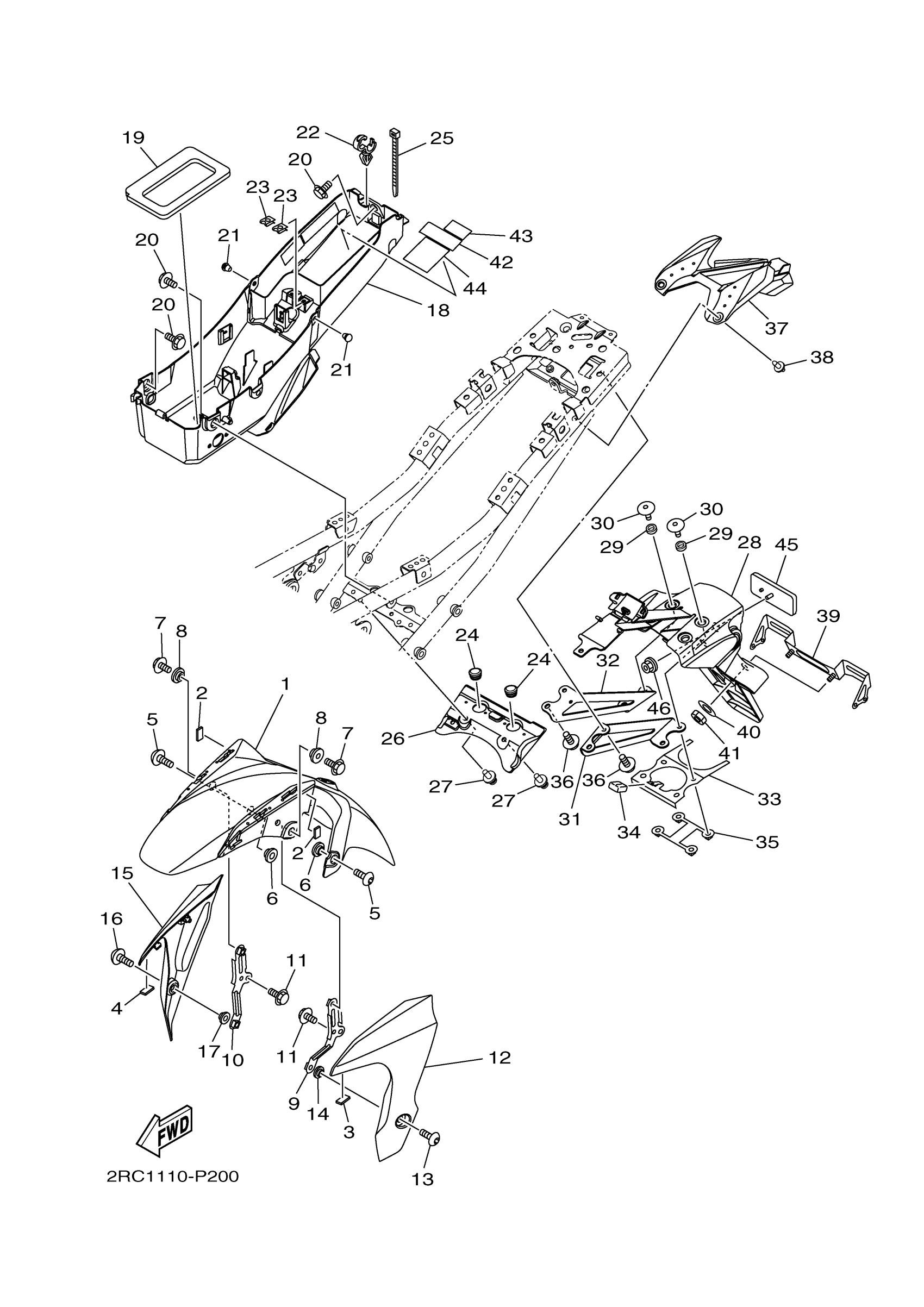

Yamaha FZ07FW (FZ07) 2RC11 2015 FENDER Diagram
#
12
STAY, FENDER 1
1WS-21513-00-P4
Unavailable
15
STAY, FENDER 2
1WS-21514-00-P4
Unavailable
18
BOX, BATTERY 1
1WS-8212B-00-00
Unavailable
19
DAMPER 2
1WS-21639-00-00
Unavailable
20
BOLT
90109-06202-00
Unavailable
21
PLUG(1NL)
90338-07180-00
Unavailable
22
CLAMP
90464-18002-00
Unavailable
23
NUT, SPRING(47R)
90183-04039-00
Unavailable
24
GROMMET 285216390000
90480-14100-00
Unavailable
25
CLAMP(MF1)
90464-15152-00
Unavailable
26
GUARD, FLAP
1WS-21642-01-00
Unavailable
27
RIVET
90269-06002-00
Unavailable
28
GUARD, MUD
1WS-21629-00-00
Unavailable
29
COLLAR
90387-06106-00
Unavailable
30
BOLT
90111-06061-00
Unavailable
31
STAY 1
1WS-2164F-00-00
Unavailable
32
STAY 2
1WS-2164G-00-00
Unavailable
33
STAY, PLATE
1WS-21682-00-00
Unavailable
34
DAMPER
1WS-21746-00-00
Unavailable
35
BRACKET 6
1WS-2161G-00-00
Unavailable
36
BOLT,WASHER BASED
90105-06206-00
Unavailable
37
COVER, REAR FENDER
1WS-2163A-00-00
Unavailable
38
RIVET
90269-07008-00
Unavailable
39
BRACKET, LICENSE
2RC-84751-00-00
Unavailable
40
WASHER, PLAIN (646)
92990-06600-00
Unavailable
41
NUT, SELF-LOCKING
95617-06100-00
Unavailable
42
LABEL, CAUTION
3JJ-28446-A2-00
Unavailable
43
LABEL, CAUTION
3SA-24877-A0-00
Unavailable
44
PLATE, ROUTING 2
4B5-21686-01-00
Unavailable
45
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
46
NUT, S/L FLANGE
95607-05200-00
Unavailable
