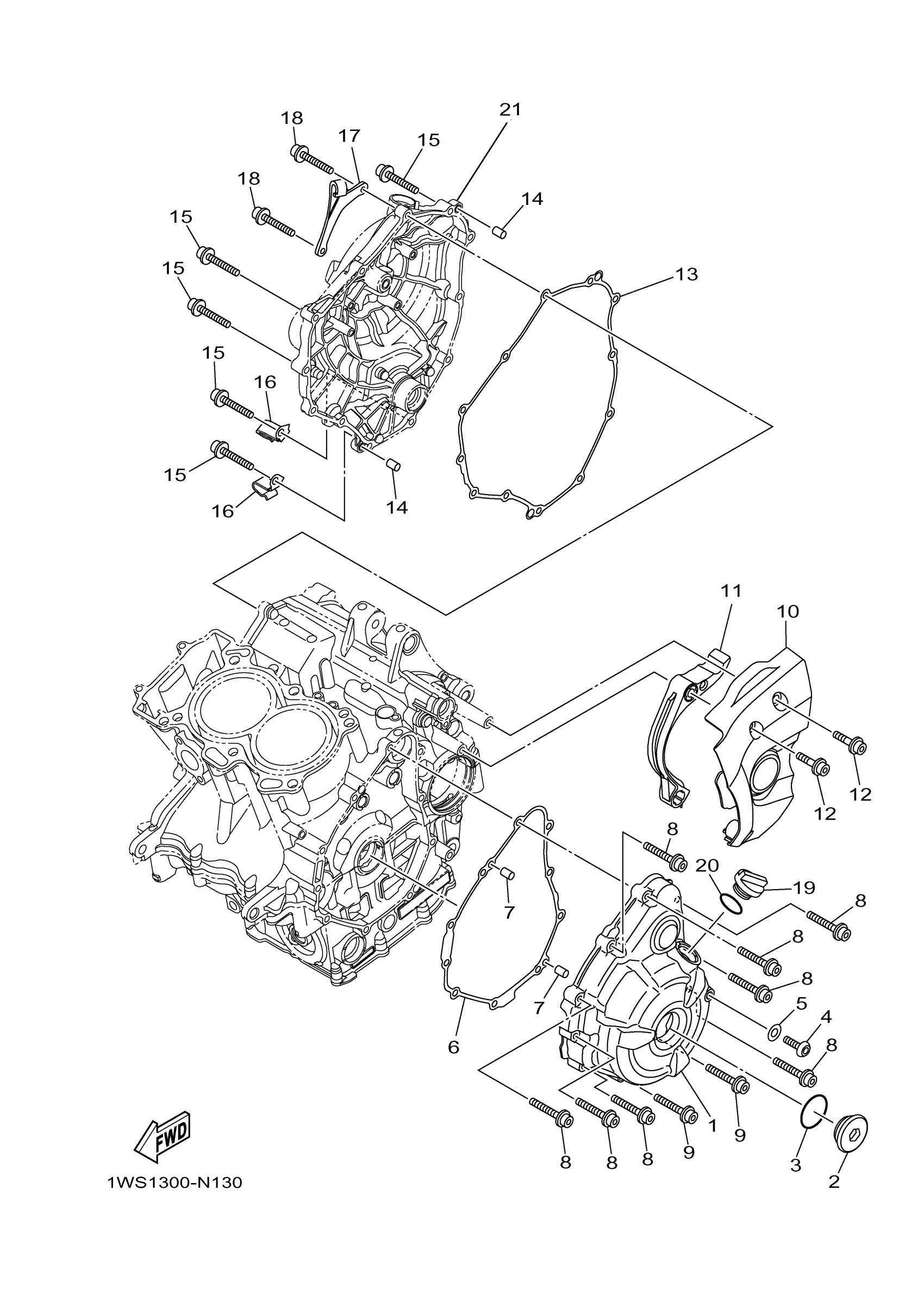

Yamaha FZ07FW (FZ07) 2RC11 2015 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

1WS-15411-00-00

$102.99

2

PLUG, STRAIGHT SCREW

90340-36005-00

$24.13

3

O-RING

93210-35804-00

$0.46

4

BOLT, BUTTON HEAD

92017-08012-00

$5.76

5

. GASKET

90430-08143-00

$2.88

6

GASKET, CRANKCASE

1WS-15451-00-00

$17.03

7

PIN, DOWEL

99530-08012-00

$4.89

8

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

$4.57

9

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

$4.57

10

COVER, CHAIN CASE

1WS-15418-00-00

$23.12

11

GUIDE, INLET

1WS-15377-00-00

$26.95

12

BOLT, HEXAGON SOCKET HEAD

90110-06396-00

$2.33

13

GASKET, CRANKCASE

1WS-15461-00-00

$28.89

14

PIN, DOWEL

99530-08012-00

$4.89

15

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

$4.57

16

CLAMP

90465-08045-00

Unavailable

17

HOLDER, CLUTCH CAB

1WS-15441-00-00

Unavailable

18

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

$4.57

19

PLUG, OIL LEVEL

BAT-15362-00-00

Unavailable

20

O-RING(1KT)

93210-27778-00

Unavailable

21

COVER, CRANKCASE 2

1WS-15421-00-00

Unavailable
