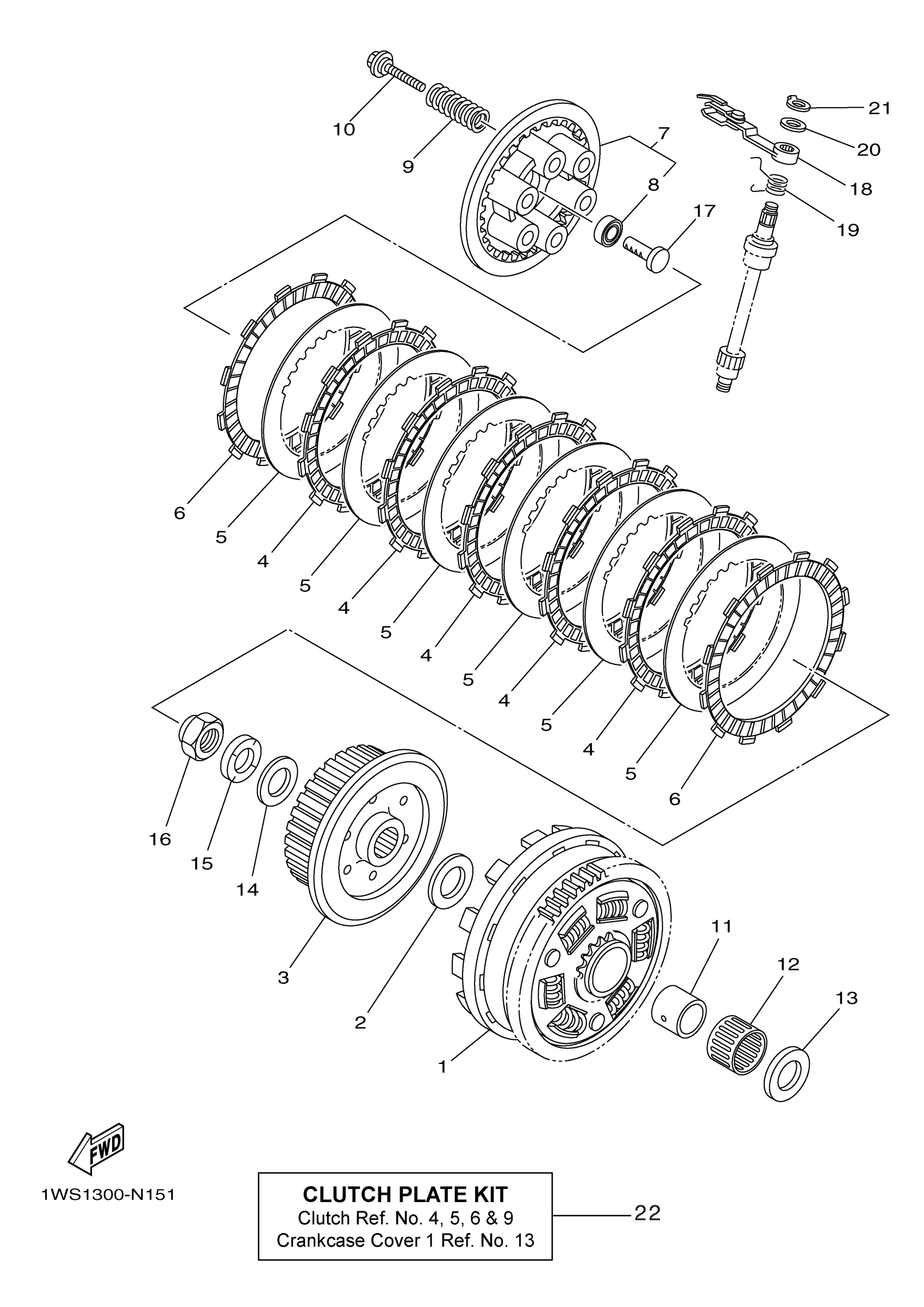

Yamaha FZ07FW (FZ07) 2RC11 2015 CLUTCH Diagram

#

Description
Price

1

PRIMARY DRIVEN GEA

1WS-16150-00-00

$388.47

2

PLATE, THRUST

363-16154-00-00

$13.33

3

BOSS, CLUTCH

1WS-16371-01-00

$60.01

4

PLATE, FRICTION

5VY-16321-00-00

$18.21

5

PLATE, CLUTCH 2

5VY-16325-20-00

Unavailable

6

PLATE, FRICTION

5TG-16321-00-00

$12.15

7

PRESSURE PLATE ASS

1WS-16350-00-00

$64.21

8

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$23.71

9

SPRING, COMPRESSION(3GM)

90501-230E4-00

$7.77

10

BOLT, WITH WASHER

90119-06263-00

$5.81

11

SPACER 1

1WS-16181-00-00

$43.50

12

BEARING

93310-232R9-00

$33.77

13

PLATE, THRUST

363-16154-00-00

$13.33

14

WASHER, PLATE

90201-20030-00

$5.73

15

WASHER, CONICAL SPRING

90208-20001-00

$13.70

16

NUT

90179-20022-00

Unavailable

17

ROD, PUSH 1

1WS-16356-00-00

Unavailable

18

PUSH LEVER ASSY

1WS-16340-01-00

Unavailable

19

SPRING, TORSION

90508-18132-00

Unavailable

20

WASHER, PLATE

90201-10029-00

Unavailable

21

CIRCLIP(10W)

99009-10400-00

Unavailable

22

CLUTCH PLATE KIT

BTK-W001G-00-00

Unavailable
