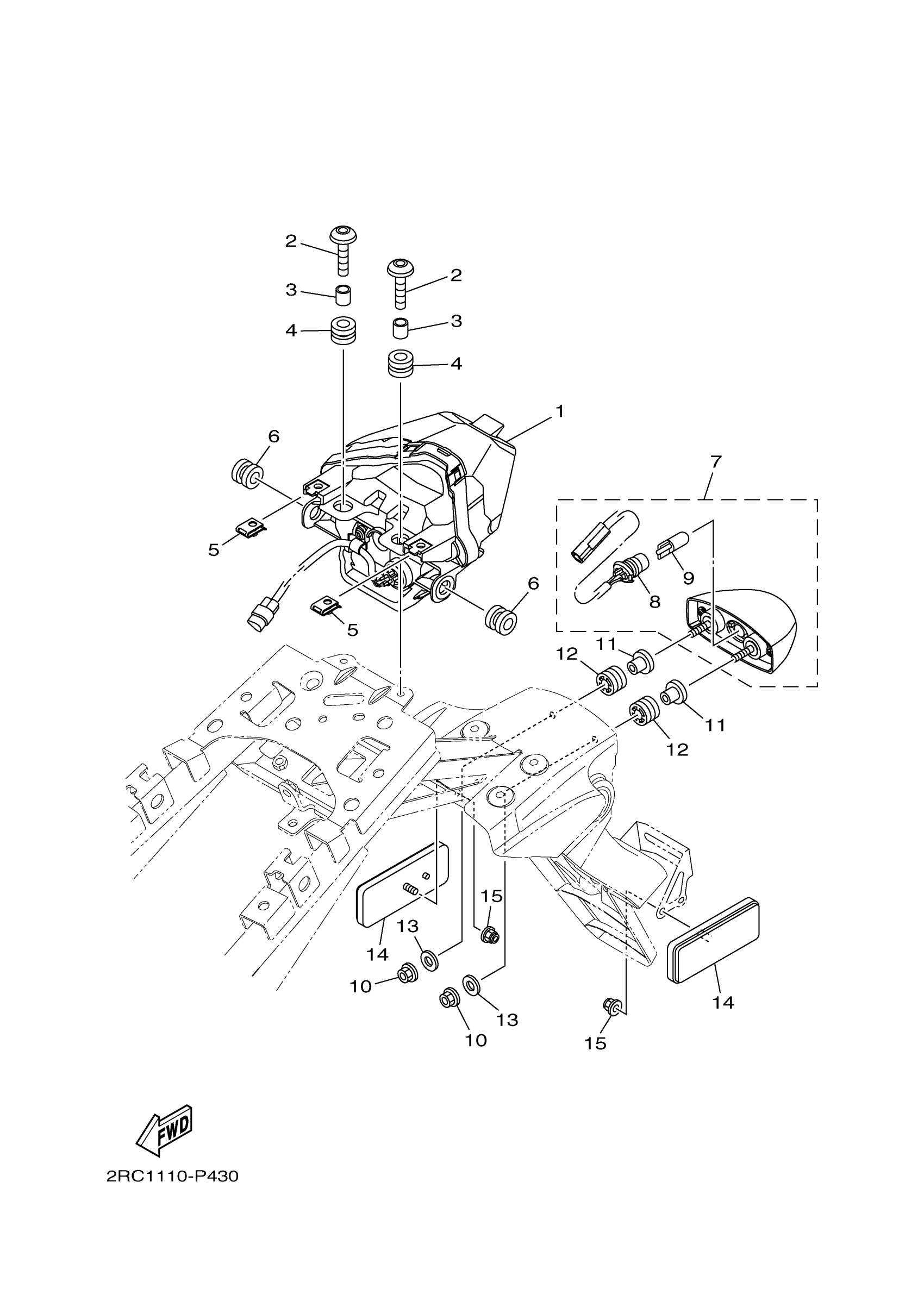

Yamaha FZ07AHR (FZ07 ABS) BU25 2017 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASS

1WS-84710-00-00

$104.47

2

BOLT,HEX. SOCKET BUTTON

90111-06137-00

$4.46

3

COLLAR

90387-067V1-00

$2.75

4

GROMMET

90480-13001-00

$0.70

5

NUT, SPRING(1YT)

90183-05042-00

$0.86

6

GROMMET

90480-10003-00

$5.86

7

LICENCE LIGHT ASSY

1WS-84740-00-00

Unavailable

8

CORD, LICENCE LIGH

1WS-84547-00-00

Unavailable

9

BULB

1TP-84347-00-00

$5.55

10

NUT, S/L FLANGE

95607-05200-00

$6.39

11

COLLAR

90387-05042-00

$4.46

12

GROMMET

90480-12023-00

$5.81

13

WASHER PLATE (664)

90201-05556-00

Unavailable

14

REAR REFLECTOR ASSY

3Y6-85130-02-00

$21.21

15

NUT, FLANGE

95702-05500-00

$0.73
