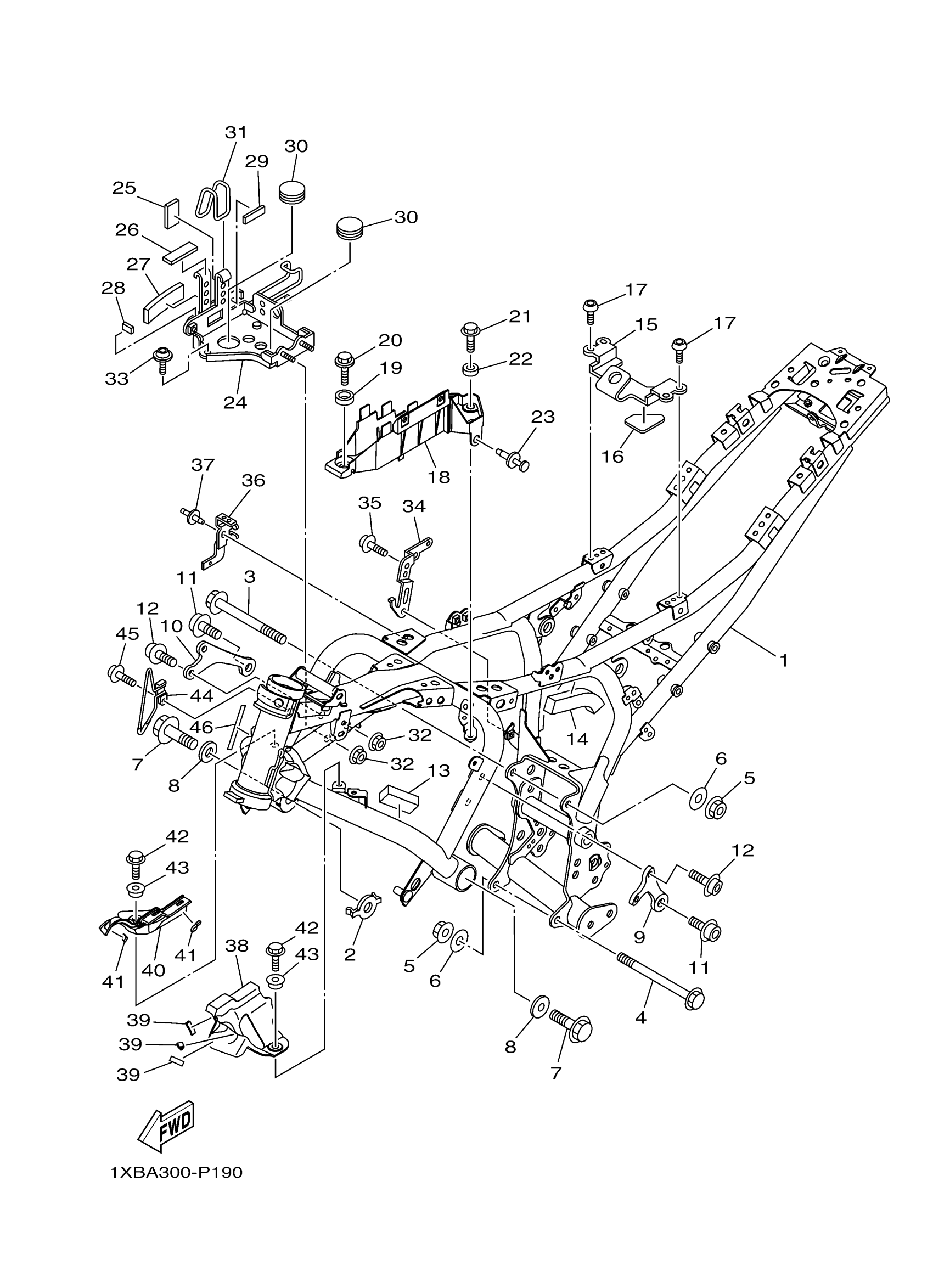

Yamaha FZ07AHR (FZ07 ABS) BU25 2017 FRAME Diagram
#
1
FRAME COMP.
BU2-21110-11-00
Unavailable
4
BOLT, FLANGE
90105-10349-00
Unavailable
9
STAY, ENGINE 1
1WS-21315-00-00
Unavailable
10
STAY, ENGINE 2
1WS-21316-00-00
Unavailable
15
BRACKET, SEAT FITTING
1WS-21946-01-00
Unavailable
16
SEAT 1
1WS-2112B-01-00
Unavailable
17
BOLT, BUTTON HEAD
92012-06010-00
Unavailable
18
COVER 3
1WS-2117N-00-00
Unavailable
19
COLLAR
90387-1001B-00
Unavailable
20
BOLT, WITH WASHER
90119-06209-00
Unavailable
21
BLOT, FLANGE DEEP RECESS
95D32-06012-00
Unavailable
22
COLLAR
90387-06106-00
Unavailable
23
RIVET
90269-06002-00
Unavailable
24
BRACKET
1WS-21158-00-00
Unavailable
25
DAMPER, PLATE
90520-01004-00
Unavailable
26
DAMPER, SEAT
3UF-24737-00-00
Unavailable
27
DAMPER 4
3KJ-15337-00-00
Unavailable
28
PLATE, FOOTREST
1HX-27415-00-00
Unavailable
29
DAMPER
5DM-28371-00-00
Unavailable
30
GROMMET (2A6)
90480-30167-00
Unavailable
31
BAND, TOOL
4XV-21376-00-00
Unavailable
32
NUT, FLANGE
95702-06500-00
Unavailable
33
BOLT,HEX. SOCKET BUTTON
90111-06122-00
Unavailable
34
BRACKET 8
1WS-2161J-00-00
Unavailable
35
BOLT, BUTTON HEAD
92017-06010-00
Unavailable
36
BRACKET 2
1WS-2175U-00-00
Unavailable
37
RIVET(4PH)
90269-07077-00
Unavailable
38
COVER 4
1WS-2117R-00-00
Unavailable
39
PLATE, FOOTREST
1HX-27415-00-00
Unavailable
40
COVER 5
1WS-2117T-01-00
Unavailable
41
PLATE, FOOTREST
1HX-27415-00-00
Unavailable
42
BOLT, FLANGE DEEP RECESS
95D07-06012-00
Unavailable
43
C0LLAR
90387-062M9-00
Unavailable
44
GUIDE, CABLE
BU2-21288-00-00
Unavailable
45
BOLT, FLANGE(4MY)
95027-06010-00
Unavailable
46
PROTECTOR, FUEL TANK
3HA-24141-00-00
Unavailable
