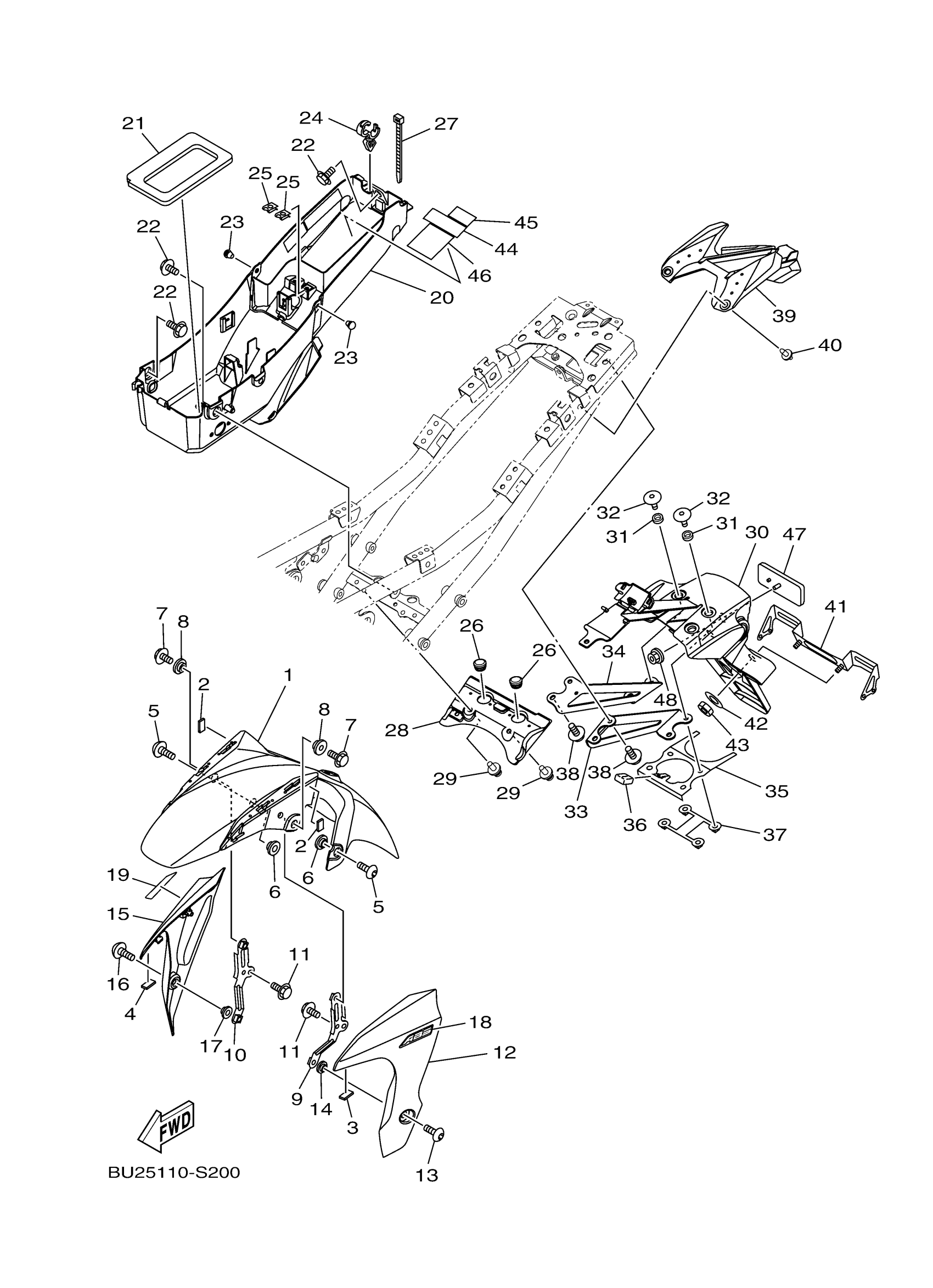

Yamaha FZ07AHR (FZ07 ABS) BU25 2017 FENDER Diagram
#
18
EMBLEM
5VS-21578-10-00
Unavailable
19
EMBLEM
5VS-21578-10-00
Unavailable
20
BOX, BATTERY 1
1WS-8212B-00-00
Unavailable
21
DAMPER 2
1WS-21639-00-00
Unavailable
22
BOLT
90109-06202-00
Unavailable
23
PLUG(1NL)
90338-07180-00
Unavailable
24
CLAMP
90464-18002-00
Unavailable
25
NUT, SPRING(47R)
90183-04039-00
Unavailable
26
GROMMET 285216390000
90480-14100-00
Unavailable
27
CLAMP(MF1)
90464-15152-00
Unavailable
28
GUARD, FLAP
1WS-21642-01-00
Unavailable
29
RIVET
90269-06002-00
Unavailable
30
GUARD, MUD
1WS-21629-00-00
Unavailable
31
COLLAR
90387-06106-00
Unavailable
32
BOLT
90111-06061-00
Unavailable
33
STAY 1
1WS-2164F-00-00
Unavailable
34
STAY 2
1WS-2164G-00-00
Unavailable
35
STAY, PLATE
1WS-21682-00-00
Unavailable
36
DAMPER
1WS-21746-00-00
Unavailable
37
BRACKET 6
1WS-2161G-00-00
Unavailable
38
BOLT,WASHER BASED
90105-06206-00
Unavailable
39
COVER, REAR FENDER
1WS-2163A-00-00
Unavailable
40
RIVET
90269-07008-00
Unavailable
41
BRACKET, LICENSE
2RC-84751-00-00
Unavailable
42
WASHER, PLAIN (646)
92990-06600-00
Unavailable
43
NUT, SELF-LOCKING
95617-06100-00
Unavailable
44
LABEL, CAUTION
3JJ-28446-A2-00
Unavailable
45
LABEL, CAUTION
3SA-24877-A0-00
Unavailable
46
PLATE, ROUTING 2
4B5-21686-01-00
Unavailable
47
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
48
NUT, S/L FLANGE
95607-05200-00
Unavailable
