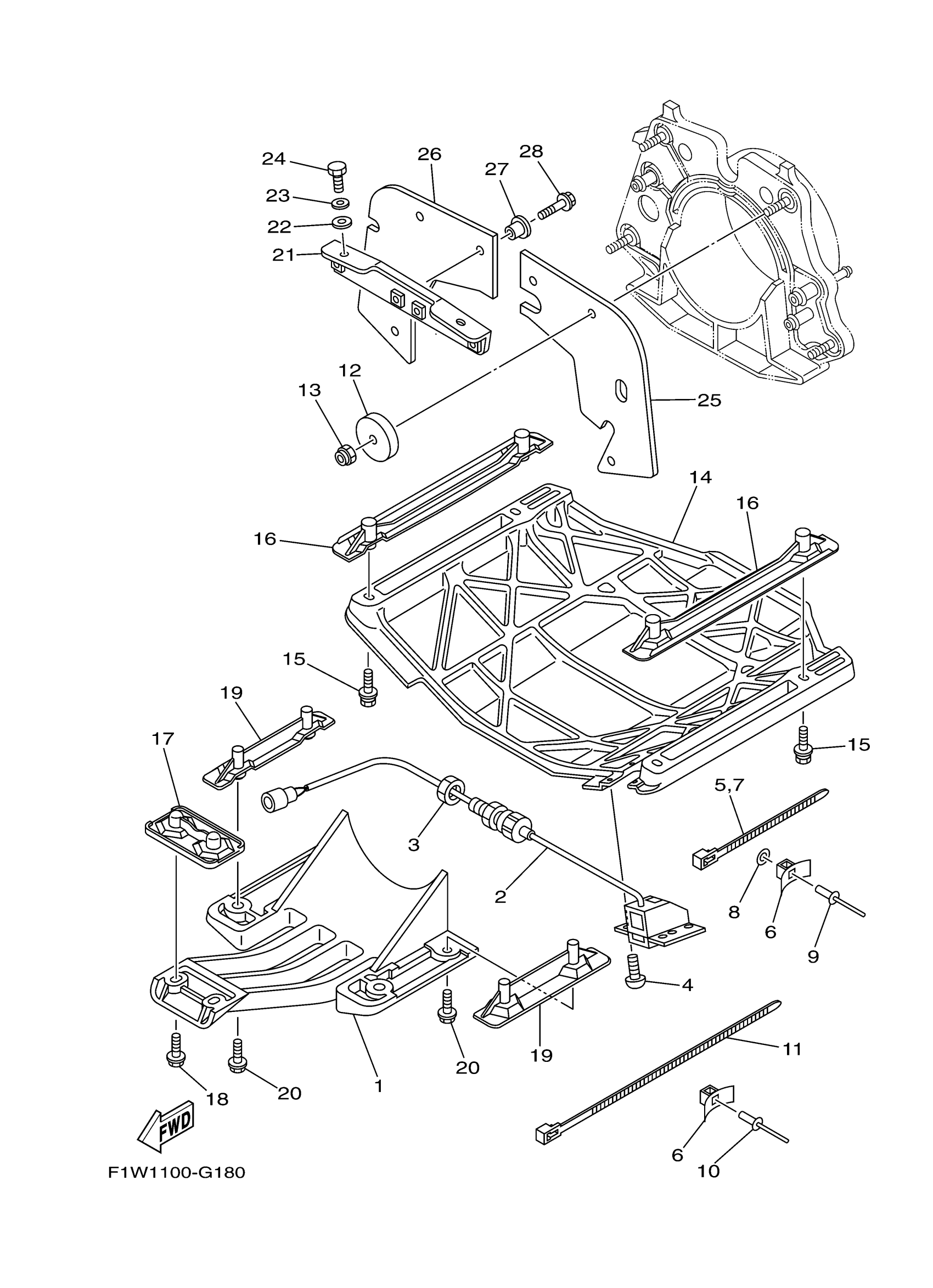

Yamaha FY1800K (FX HO) F2HD 2011 JET UNIT 4 Diagram

#

Description
Price

1

SCREEN, INTAKE

6B6-R1333-01-00

$139.21

2

SENSOR SPEED

F1S-U8K31-03-00

$142.18

3

NUT

F2C-U151S-00-00

$1.59

4

SCREW, ROUND HEAD

90150-05807-00

$0.79

5

CLAMP

90464-32801-00

$1.23

6

BASE, CLAMP

F1W-U828M-00-00

$1.23

7

CLAMP

90464-32801-00

$1.23

8

WASHER

9299R-05200-00

$3.16

9

RIVET, BLIND

90267-48802-00

$1.98

10

RIVET, BLIND

90267-489U6-00

$1.37

11

CLAMP

90464-99801-00

$2.73

12

WASHER

F1S-U725E-01-00

$7.89

13

NUT, NYLON

9572R-10300-00

$3.37

14

PLATE 2

F1W-6273B-02-00

$549.98

15

BOLT, WITH WASHER

90119-08829-00

$3.88

16

BRACKET 2

F1B-U8572-01-00

$15.14

17

BRACKET, 3

F1K-U8577-01-00

$22.97

18

BOLT, WITH WASHER

90119-06896-00

$5.03

19

BRACKET 1

F1G-U8571-02-00

$15.07

20

BOLT, WITH WASHER

90119-08829-00

$3.88

21

BRACKET

F1B-67557-00-00

Unavailable

22

GASKET

90430-12002-00

$1.81

23

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

24

BOLT

90109-08043-00

$4.09

25

PLATE, RUBBER 1

F1X-U757E-00-00

$19.68

26

PLATE, RUBBER 2

F1X-U757F-00-00

Unavailable

27

COLLAR

90387-06080-00

$7.27

28

BOLT, WITH WASHER

90119-06827-00

Unavailable
