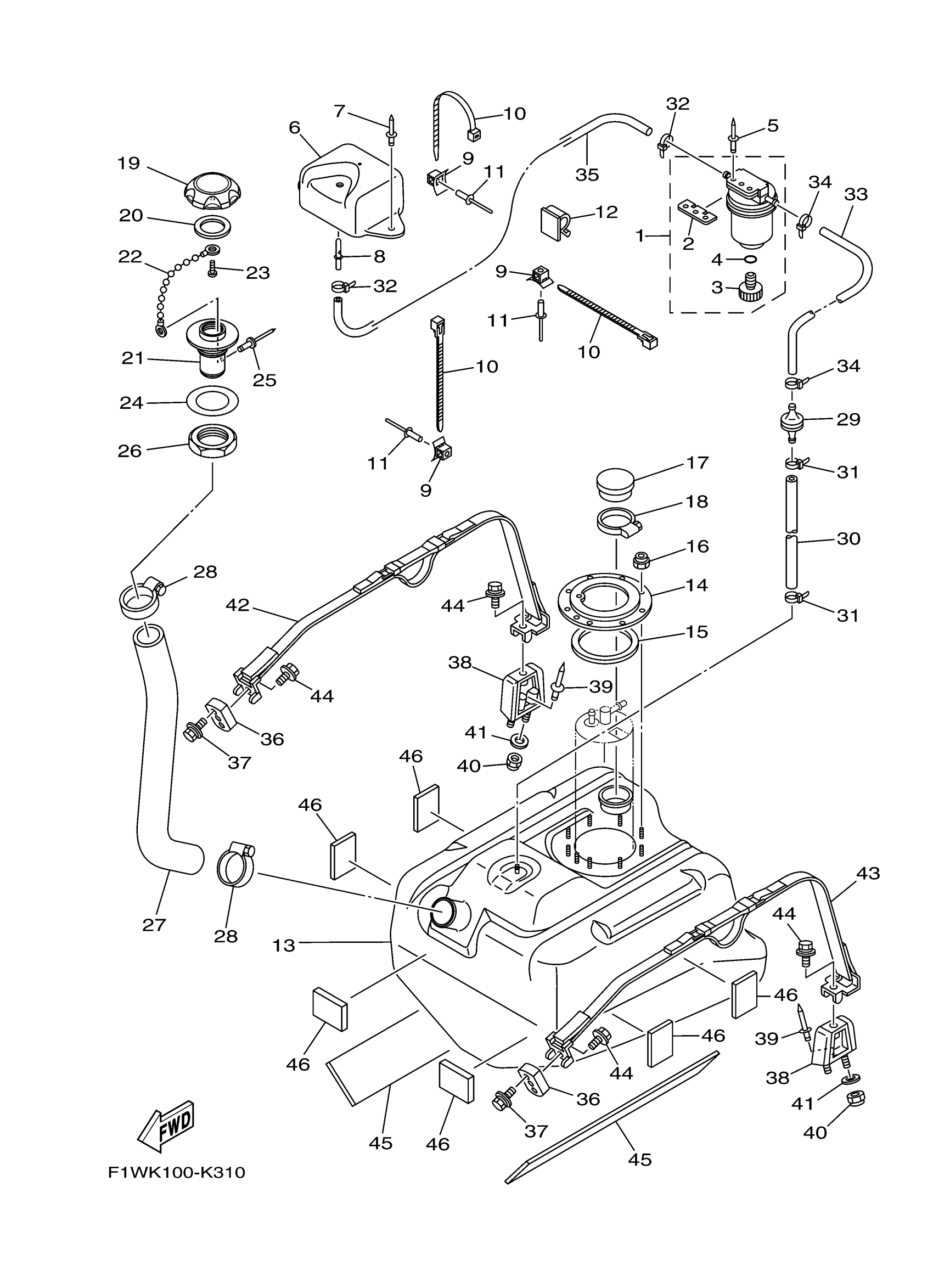

Yamaha FY1800K (FX HO) F2HD 2011 FUEL TANK Diagram

#

Description
Price

1

FILTER, VENT ASSY

F2F-6214A-00-00

$52.14

2

. PLATE, FILTER

EW2-62142-00-00

$44.76

3

. PLUG, DRAIN

70R-24543-00-00

$8.94

4

. O-RING

70R-24489-00-00

$4.93

5

RIVET, BLIND

90267-489U2-00

$1.51

6

SOCKET, VENTILATION

F1W-U2159-00-00

$8.94

7

RIVET, BLIND

90267-489U6-00

Unavailable

8

PIPE, VENTILATION

F1G-62149-00-00

$11.18

9

BASE, CLAMP

F1W-U828M-00-00

$1.29

10

CLAMP

90464-32801-00

$1.29

11

RIVET, BLIND

90267-489U6-00

Unavailable

12

CLAMP

90464-17800-00

$3.28

13

TANK, FUEL

F1W-U7711-10-00

Unavailable

14

RING

F1B-U7773-00-00

$22.25

15

PACKING, SEAL

F1B-67747-00-00

$17.09

16

NUT, NYLON

9572R-06300-00

$2.93

17

COVER

FN8-6771K-00-00

$15.66

18

BAND, HOSE 62

90601-162U5-00

$6.46

19

CAP, FUEL FILLER

F2N-U7831-10-00

$22.25

20

PACKING

GP7-U7832-01-00

$5.62

21

SOCKET

GP7-U7833-11-00

$11.48

22

CHAIN BALL

GP7-U7835-00-00

$4.72

23

SCREW, TRUSS HEAD TAPPING

90169-049U1-00

$1.29

24

PACKING FUEL FILLER

GP7-U7834-10-00

$5.45

25

RIVET, BLIND

90267-329UR-00

$1.23

26

NUT, FUEL FILLER

GP7-U783F-00-00

$4.96

27

HOSE

F1W-U7844-00-00

$46.25

28

BAND, HOSE 55

90601-155U4-00

$6.17

29

CHECK VALVE

EU0-67767-31-00

$30.97

30

HOSE, AIR VENT 3

F2H-U785H-00-00

$20.88

31

CLAMP

90465-10098-00

$2.24

32

CLAMP

90465-10098-00

$2.24

33

HOSE, AIR VENT

F2C-U785G-00-00

$6.19

34

CLAMP

90465-10098-00

$2.24

35

HOSE, AIR VENT

F0D-U7856-11-00

Unavailable

36

NUT, SPECIAL

F1X-U2873-00-00

$11.93

37

BOLT, WITH WASHER

90119-06830-00

Unavailable

38

BRKT, BAND

F1B-6774J-00-00

$153.72

39

RIVET, BLIND

90267-489UE-00

Unavailable

40

NUT, NYLON

9572R-06300-00

$2.93

41

WASHER

9299R-06200-00

$0.43

42

BELT, TANK 1

F1B-67743-03-00

Unavailable

43

BELT, TANK 1

F1W-67743-00-00

$64.16

44

BOLT, WITH WASHER

90119-08800-00

$4.31

45

MAT 1

F1W-U759B-00-00

$83.57

46

MAT 2

F1W-U759C-01-00

$2.46
