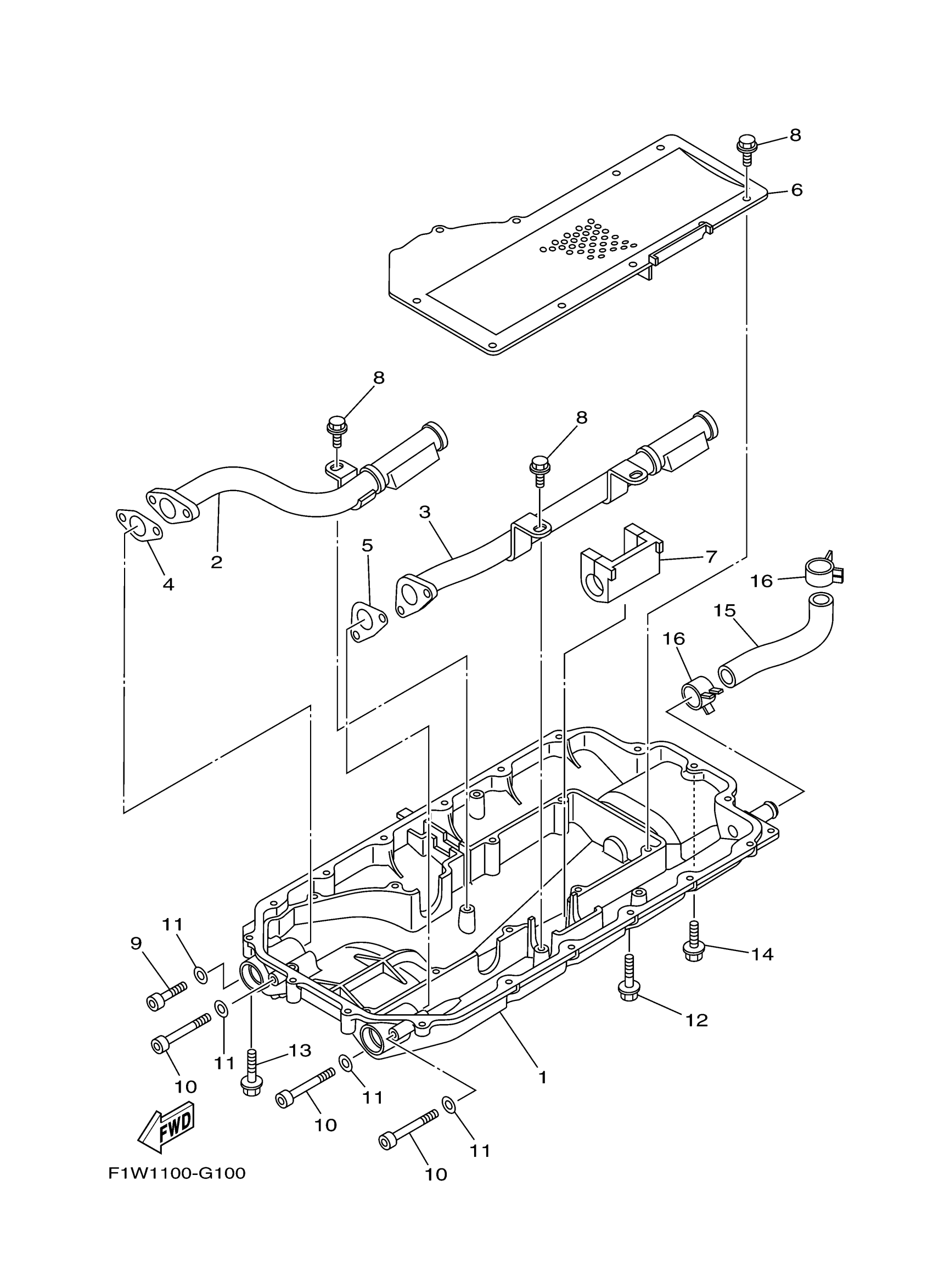

Yamaha FY1800J (FX HO) F2H9 2010 OIL PAN Diagram
#
Description
Price
1
PAN, OIL
6S5-1310A-00-94
Unavailable
2
OIL PIPE COMP. 2
6S5-13405-00-00
Unavailable
3
OIL PIPE COMP. 2
6S5-13406-00-00
Unavailable
4
GASKET
6S5-13476-00-00
Unavailable
5
GASKET
6S5-13477-00-00
Unavailable
6
PLATE, BAFFLE
6S5-13317-00-00
Unavailable
7
GROMMET
6S5-15486-00-00
Unavailable
8
BOLT, FLANGE
95817-06014-00
Unavailable
11
WASHER, PLATE
90201-06028-00
Unavailable
15
HOSE 2
6S5-11378-00-00
Unavailable
16
CLIP
90467-200A0-00
Unavailable
