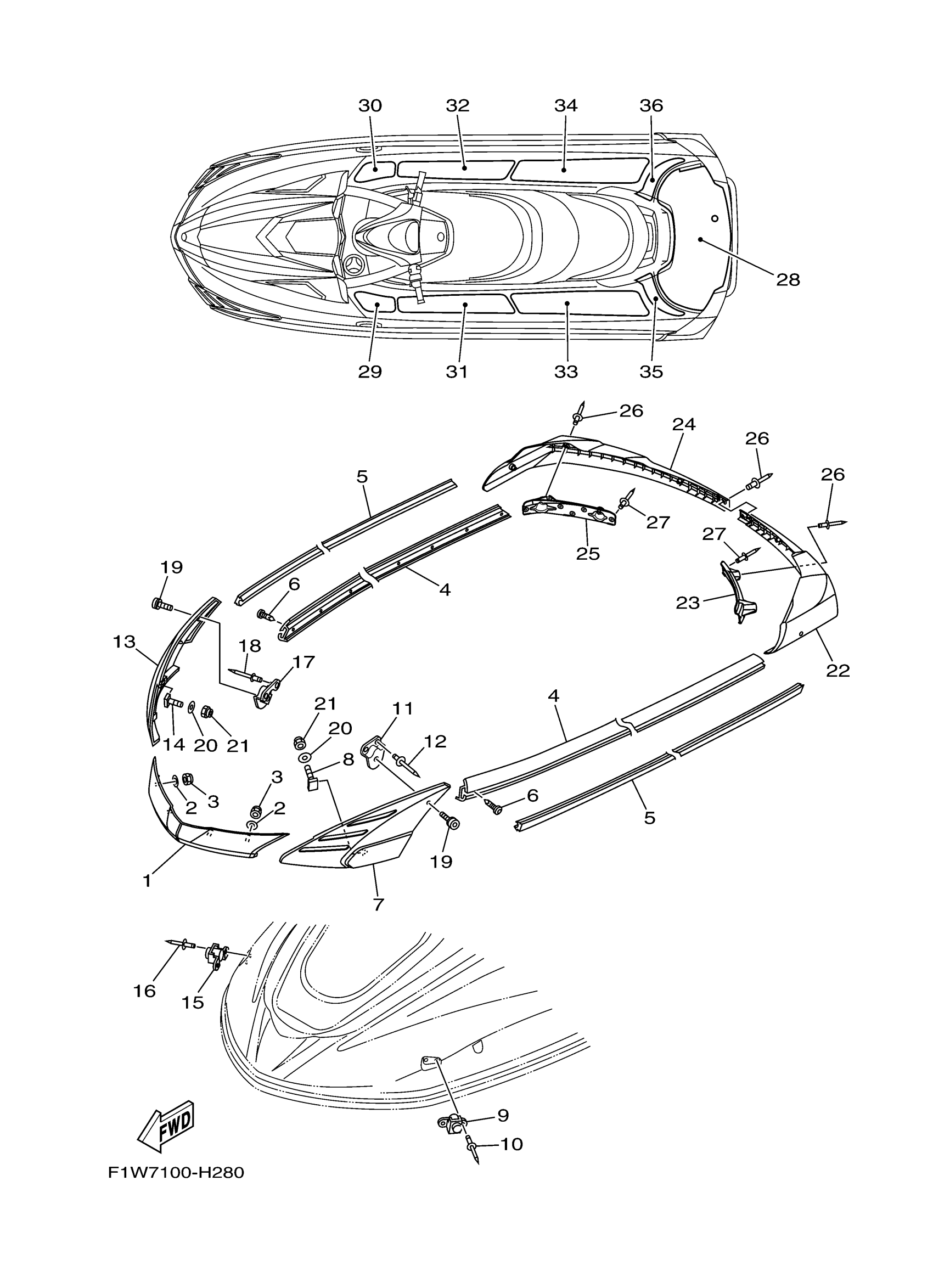

Yamaha FY1800J (FX HO) F2H9 2010 GUNWALE & MAT Diagram

#

Description
Price

1

BOW GUNWALE COMP.

F1W-U2501-01-00

Unavailable

2

WASHER

9299R-06200-00

$0.43

3

NUT, NYLON

9572R-06300-00

$2.93

4

GUNWALE, SIDE

F1B-U2512-20-00

$238.79

5

INNER,GUNWALE

F1B-U2519-20-00

Unavailable

6

SCREW,TAPPING

90169-059U1-00

$1.05

7

JOINT,GUNWALE LH

F1W-U252E-02-00

Unavailable

8

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

9

GROMMET ASSY

F1W-U250B-00-00

$4.46

10

RIVET, BLIND

90267-489U6-00

Unavailable

11

BRACKET

F1W-U4949-00-00

$3.21

12

RIVET, BLIND

90267-489U6-00

Unavailable

13

JOINT,GUNWALE RH

F1W-U252F-02-00

Unavailable

14

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

15

GROMMET ASSY

F1W-U250B-00-00

$4.46

16

RIVET, BLIND

90267-489U6-00

Unavailable

17

BRACKET

F1W-U4949-00-00

$3.21

18

RIVET, BLIND

90267-489U6-00

Unavailable

19

BOLT,HEX. SOCKET BUTTON

90111-06115-00

$3.03

20

WASHER

9299R-06200-00

$0.43

21

NUT, NYLON

9572R-06300-00

$2.93

22

GUNWALE, STERN 1

F1W-U251D-02-00

$161.18

23

BRACKET, GUNWALE 1

F1W-U251L-01-00

$4.63

24

GUNWALE, STERN 2

F1W-U251E-02-00

$161.18

25

BRACKET, GUNWALE 2

F1W-U251M-01-00

$4.63

26

RIVET, BLIND

90267-48825-00

$2.16

27

RIVET, BLIND

90267-489U8-00

$1.37

28

MAT, UPPER

F1W-U3581-10-00

$97.00

29

MAT, STEP 1

F1W-U351H-10-00

$6.27

30

MAT, STEP 2

F1W-U351J-10-00

$6.04

31

MAT, STEP 3

F1W-U351K-10-00

$23.87

32

MAT, STEP 4

F1W-U351M-10-00

Unavailable

33

MAT, STEP 5

F1W-U351N-10-00

$29.09

34

MAT, STEP 6

F1W-U351P-10-00

$29.09

35

MAT, STEP 7

F1W-U351R-10-00

Unavailable

36

MAT, STEP 8

F1W-U351S-10-00

$12.67
