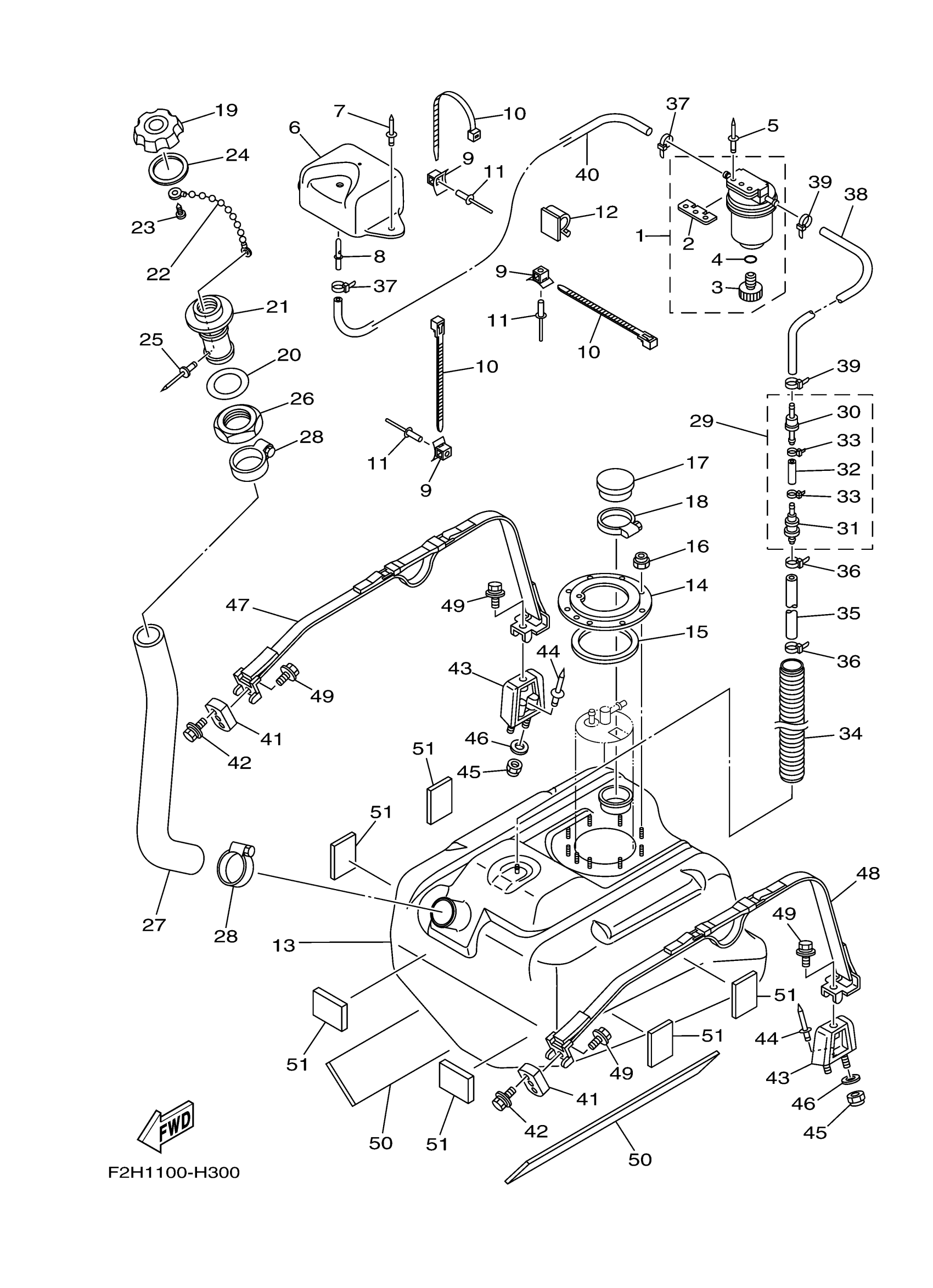

Yamaha FY1800H ((WAVERUNNER FX HO)) F2H4 2009 FUEL TANK Diagram

#

Description
Price

1

FILTER, VENT ASSY

F2F-6214A-00-00

$54.74

2

. PLATE, FILTER

EW2-62142-00-00

$44.99

3

. PLUG, DRAIN

70R-24543-00-00

$9.08

4

. O-RING

70R-24489-00-00

$5.00

5

RIVET, BLIND

90267-489U2-00

$1.43

6

SOCKET, VENTILATION

F1W-U2159-00-00

$9.08

7

RIVET, BLIND

90267-489U6-00

$1.37

8

PIPE, VENTILATION

F1G-62149-00-00

$11.35

9

CLAMP COMP (EU0)

90600-91736-00

$6.22

10

CLAMP

90464-32801-00

$1.23

11

RIVET, BLIND

90267-489U6-00

$1.37

12

CLAMP

90464-17800-00

$3.33

13

TANK, FUEL

F1W-U7711-03-00

Unavailable

14

RING

F1B-U7773-00-00

$20.81

15

PACKING, SEAL

F1B-67747-00-00

$16.66

16

NUT, NYLON

9572R-06300-00

$2.80

17

COVER

FN8-6771K-00-00

$11.85

18

BAND, HOSE 62

90601-162U5-00

$6.17

19

CAP, FUEL FILLER

GP7-U7831-11-00

$34.30

20

PACKING FUEL FILLER

GP7-U7834-10-00

$5.53

21

SOCKET

GP7-U7833-11-00

$10.75

22

CHAIN BALL

GP7-U7835-00-00

$4.51

23

SCREW, TRUSS HEAD TAPPING

90169-049U1-00

$1.23

24

PACKING

GP7-U7832-01-00

$5.35

25

RIVET, BLIND

90267-329UR-00

$1.15

26

NUT, FUEL FILLER

GP7-U783F-00-00

$4.72

27

HOSE

F1W-U7844-00-00

$46.95

28

BAND, HOSE 55

90601-155U4-00

$5.87

29

CHECK VALVE

EU0-67767-31-00

$20.93

30

. CHECK VALVE

F1B-67767-00-00

Unavailable

31

. ROLL OVER VALVE

FJ0-67766-00-00

$54.53

32

HOSE

90699-50100-00

$26.99

33

CLAMP

90465-10098-00

$1.68

34

TUBE

90447-22804-00

Unavailable

35

HOSE, AIR VENT 3

F2C-U785H-00-00

Unavailable

36

CLAMP

90465-10098-00

$1.68

37

CLAMP

90465-10098-00

$1.68

38

HOSE, AIR VENT

F2C-U785G-00-00

$6.29

39

CLAMP

90465-10098-00

$1.68

40

HOSE, AIR VENT

F0D-U7856-11-00

Unavailable

41

NUT, SPECIAL

F1X-U2873-00-00

$12.11

42

BOLT, WITH WASHER

90119-06830-00

Unavailable

43

BRKT, BAND

F1B-6774J-00-00

$156.05

44

RIVET, BLIND

90267-489UE-00

Unavailable

45

NUT, NYLON

9572R-06300-00

$2.80

46

WASHER

9299R-06200-00

$0.43

47

BELT, TANK 1

F1B-67743-03-00

Unavailable

48

BELT, TANK 1

F1W-67743-00-00

$64.99

49

BOLT, WITH WASHER

90119-08800-00

$4.09

50

MAT 1

F1W-U759B-00-00

$84.83

51

MAT 2

F1W-U759C-01-00

$2.50
