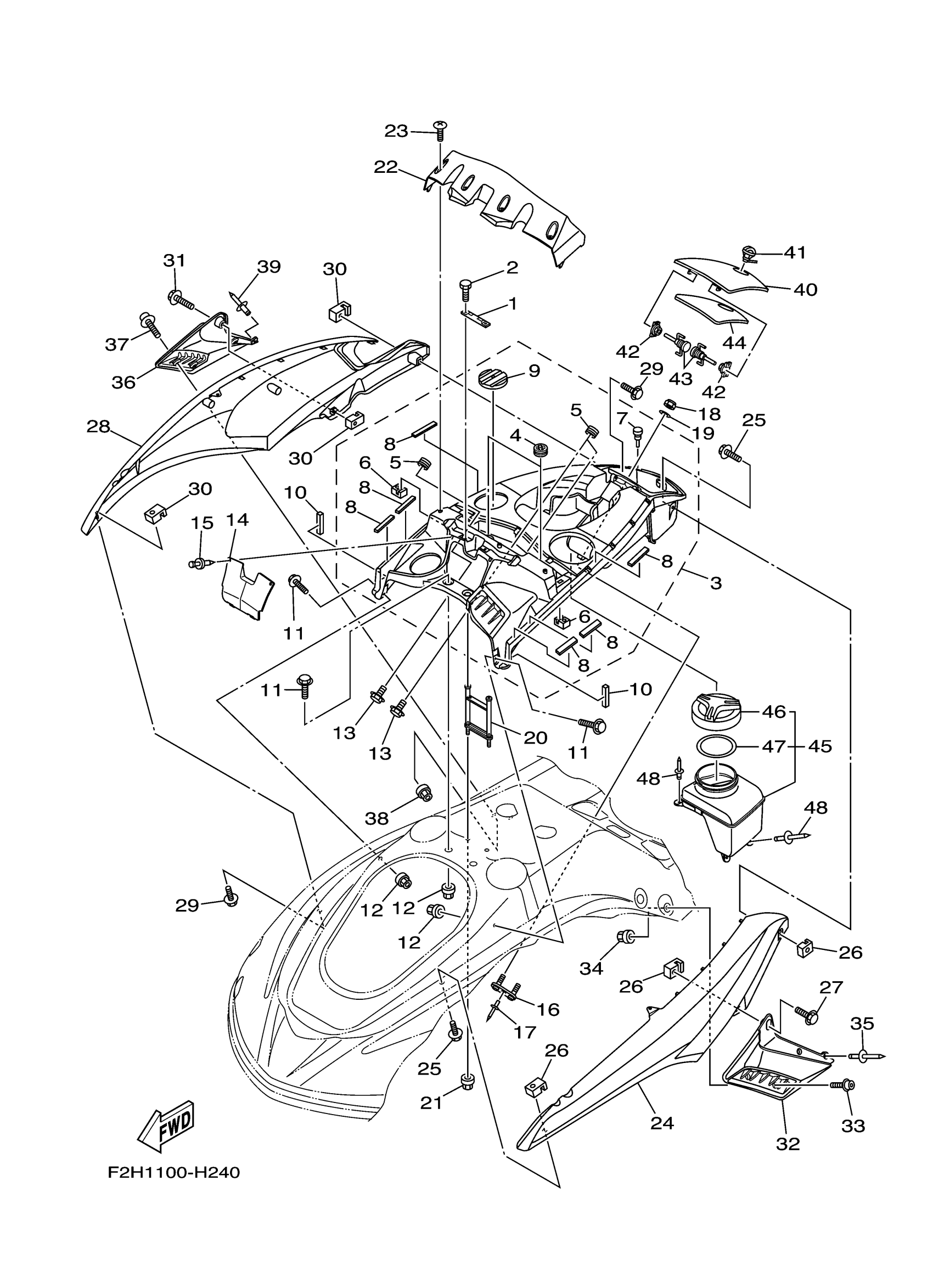

Yamaha FY1800H ((WAVERUNNER FX HO)) F2H4 2009 ENGINE HATCH 1 Diagram

#

Description
Price

1

HOOK,LID LOCK

F1W-U517F-00-00

Unavailable

2

BOLT

90101-05800-00

Unavailable

3

CENTER COVER ASSY.

F1W-U5508-22-00

Unavailable

4

. DAMPER 1

F1X-U828E-01-00

Unavailable

5

. GROMMET

90480-19800-00

Unavailable

6

NUT

F1X-U517E-01-00

Unavailable

7

. PLUG

90605-502U2-00

Unavailable

8

DAMPER 2

F0X-U515E-02-00

$1.99

9

MAT

F1X-U3844-01-00

Unavailable

10

PACKING

F1W-U518D-00-00

Unavailable

11

BOLT, WITH WASHER

90119-06880-00

Unavailable

12

NUT, SELF-LOCKING

90185-06014-00

Unavailable

13

BOLT, WITH WASHER

90119-05803-00

Unavailable

14

SEAL, COVER CENTER

F1W-U555B-00-00

Unavailable

15

RIVET

F1W-U2698-00-00

Unavailable

16

BRACKET

F1X-U5372-00-00

Unavailable

17

RIVET (EU0)

90267-48938-00

Unavailable

18

NUT, NYLON

9572R-06300-00

Unavailable

19

WASHER

9299R-06200-00

Unavailable

20

BRKT., COVER CENTER 1

F1W-U555D-02-00

Unavailable

21

NUT, SELF-LOCKING

90185-06014-00

Unavailable

22

COVER METER

F1W-U8262-10-P1

Unavailable

23

SCREW(GH1)

90149-05903-00

Unavailable

24

COVER,SIDE 1

F1W-U377B-60-P2

Unavailable

25

BOLT, WITH WASHER

90119-06880-00

Unavailable

26

NUT

F1X-U517E-01-00

Unavailable

27

BOLT, WITH WASHER

90119-06880-00

Unavailable

28

COVER,SIDE 2

F1W-U377C-60-P2

Unavailable

29

BOLT, WITH WASHER

90119-06880-00

Unavailable

30

NUT

F1X-U517E-01-00

Unavailable

31

BOLT, WITH WASHER

90119-06880-00

Unavailable

32

ORNAMENT, SIDE LH

F1W-U377F-01-00

Unavailable

33

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

Unavailable

34

NUT, SELF-LOCKING

90185-06014-00

Unavailable

35

RIVET, BLIND

90267-48807-00

Unavailable

36

ORNAMENT, SIDE RH

F1W-U377G-01-00

Unavailable

37

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

Unavailable

38

NUT, SELF-LOCKING

90185-06014-00

Unavailable

39

RIVET, BLIND

90267-48807-00

Unavailable

40

LID HATCH

F1W-U517H-01-00

Unavailable

41

LOCK

F1X-62875-01-00

Unavailable

42

GEAR ASSY

F1B-60210-00-00

Unavailable

43

PIN, HINGE

F1B-6517R-00-00

Unavailable

44

PACKING CASE

F1W-U519D-01-00

Unavailable

45

CASE,ASSY 1

F1W-U591A-00-00

Unavailable

46

. CAP,CASE

F1W-U591C-01-00

Unavailable

47

. PACKING,CASE

F1W-U591D-00-00

Unavailable

48

RIVET, BLIND

90267-489U6-00

Unavailable
