Description

Price

1

HANDLE

F1S-61552-00-00

$165.66

2

GRIP, HANDLE

GP7-U155D-01-00

$41.63

3

GRIP, END

F1S-U155F-00-00

$66.06

4

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

$1.83

5

THROTTLE LEVER ASSY

F1W-67250-01-00

$461.18

6

LEVER, THROTTLE

F0D-67255-02-00

$26.85

7

. SPRING

EW2-67256-00-00

$6.27

8

WASHER, PLAIN (646)

92990-05600-00

Unavailable

9

CIRCLIP (EU0)

99080-04600-00

$1.70

10

. SHAFT

F0D-67257-00-00

$16.99

11

. BOLT, THROTTLE

F1X-6725F-01-00

$3.58

12

SWITCH BOX ASSY

F1S-68310-01-00

$222.62

13

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

14

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

15

. STOP BUTTON COMP

FK7-68312-02-00

$13.02

16

. START BUTTON COMP

FK7-68313-02-00

$10.96

17

SCREW, PANHEAD (A93)

98580-05525-00

Unavailable

18

STEERING MASTER AS

F1W-61400-19-00

Unavailable

19

. SHAFT ASSY

F1W-67410-10-00

Unavailable

20

.. PIPE, SEAL

F1W-61435-00-00

$15.66

21

. TUBE & BUSHING SET

F1W-6773D-00-00

$298.49

22

.. BUSH

F1S-6134M-00-00

$10.43

23

. BUSH

F2C-6134M-00-00

$10.99

24

.. BUSH

F1S-6134M-10-00

$10.43

25

. LOCK 1

F1S-61782-00-00

$55.21

26

. CABLE STOPPER ASSY

F1S-6146A-00-00

$128.34

27

. SEAL, RUBBER

F1S-6143C-00-00

$34.31

28

. STAY 1

F1W-65938-00-00

$23.12

29

. STAY 2

F1S-65939-00-00

$16.99

30

SCREW

F1B-613C1-10-00

Unavailable

31

ARM ASSY.

F1S-6153R-02-00

$89.54

32

STUD, JOINT BALL

EU0-61461-02-00

$14.16

33

NUT, SELF-LOCKING

95720-06300-00

$1.72

34

BOLT

F1W-61355-10-00

Unavailable

35

. PLATE, RETAINING

F1W-6142B-00-00

$18.49

36

. LEVER ASSY

F1W-6151M-00-00

$61.18

37

. SENSOR ASSY

F1W-68303-00-00

$594.01

38

. BOLT

F1S-61355-00-00

$10.99

39

BUZZER

F1S-68341-00-00

$111.93

40

BOLT (62K)

97095-08035-00

Unavailable

41

NUT, NYLON (6J8)

95780-08300-00

$11.48

42

WASHER

F1W-U725E-00-00

$11.18

43

PLATE, RETAINING

F1X-U1554-00-00

$53.72

44

RIVET, BLIND

90267-489U6-00

Unavailable

45

TUBE

90447-22803-00

Unavailable

46

HOLDER, HANDLE UPPER

EU0-23814-32-00

$20.09

47

BOLT, WITH WASHER

90119-089U1-00

$3.37

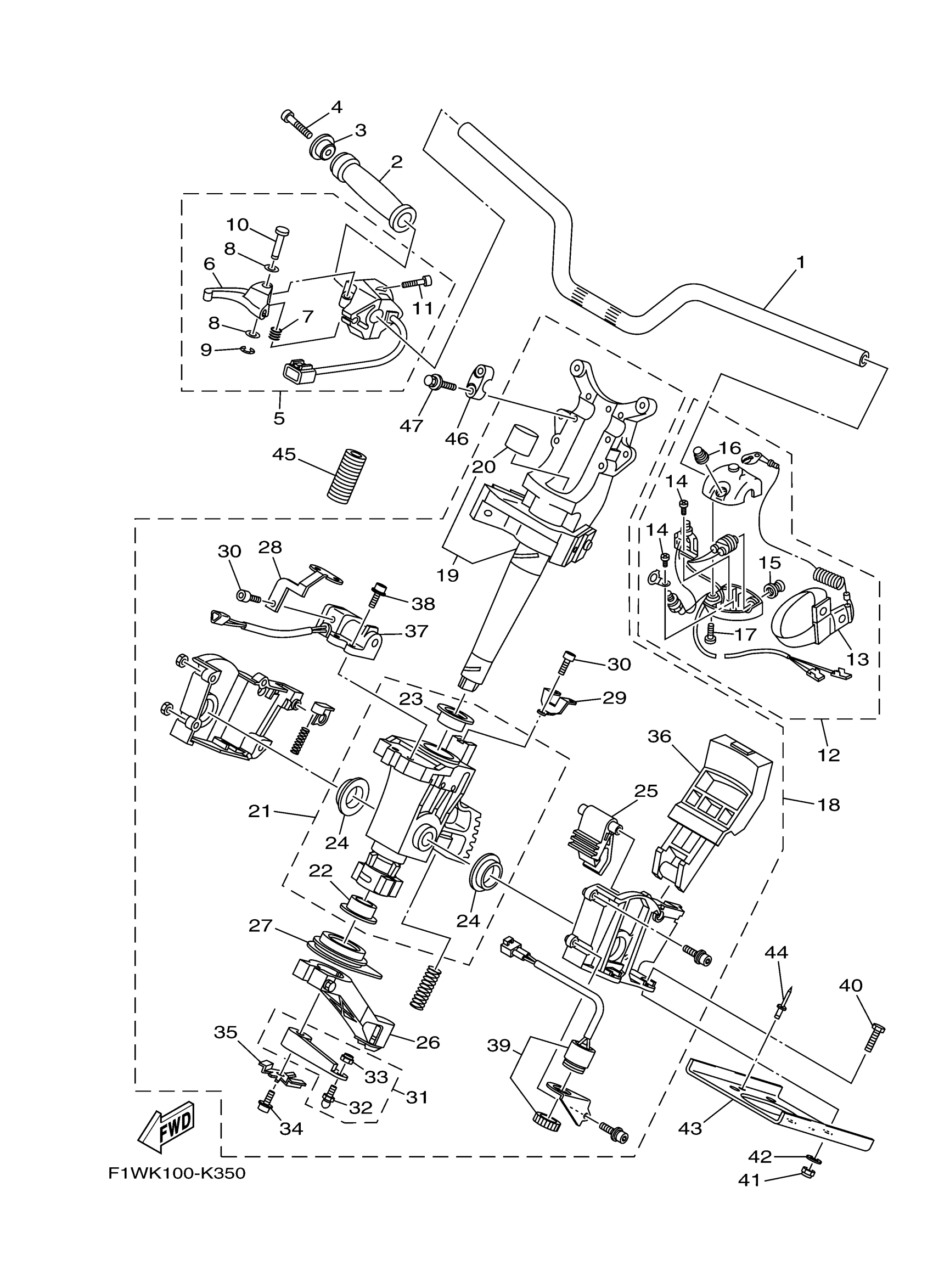

Yamaha FY1800AK (FX CRUISER HO) F2HB 2011 STEERING 1 Diagram

HANDLE

GRIP, HANDLE

GRIP, END

BOLT, HEXAGON SOCKET HEAD

THROTTLE LEVER ASSY

LEVER, THROTTLE

. SPRING

WASHER, PLAIN (646)

CIRCLIP (EU0)

. SHAFT

. BOLT, THROTTLE

SWITCH BOX ASSY

. LANYARD, STOP SWITCH

SCREW, PAN HEAD (J10)

. STOP BUTTON COMP

. START BUTTON COMP

SCREW, PANHEAD (A93)

STEERING MASTER AS

. SHAFT ASSY

.. PIPE, SEAL

. TUBE & BUSHING SET

.. BUSH

. BUSH

.. BUSH

. LOCK 1

. CABLE STOPPER ASSY

. SEAL, RUBBER

. STAY 1

. STAY 2

SCREW

ARM ASSY.

STUD, JOINT BALL

NUT, SELF-LOCKING

BOLT

. PLATE, RETAINING

. LEVER ASSY

. SENSOR ASSY

. BOLT

BUZZER

BOLT (62K)

NUT, NYLON (6J8)

WASHER

PLATE, RETAINING

RIVET, BLIND

TUBE

HOLDER, HANDLE UPPER

BOLT, WITH WASHER
