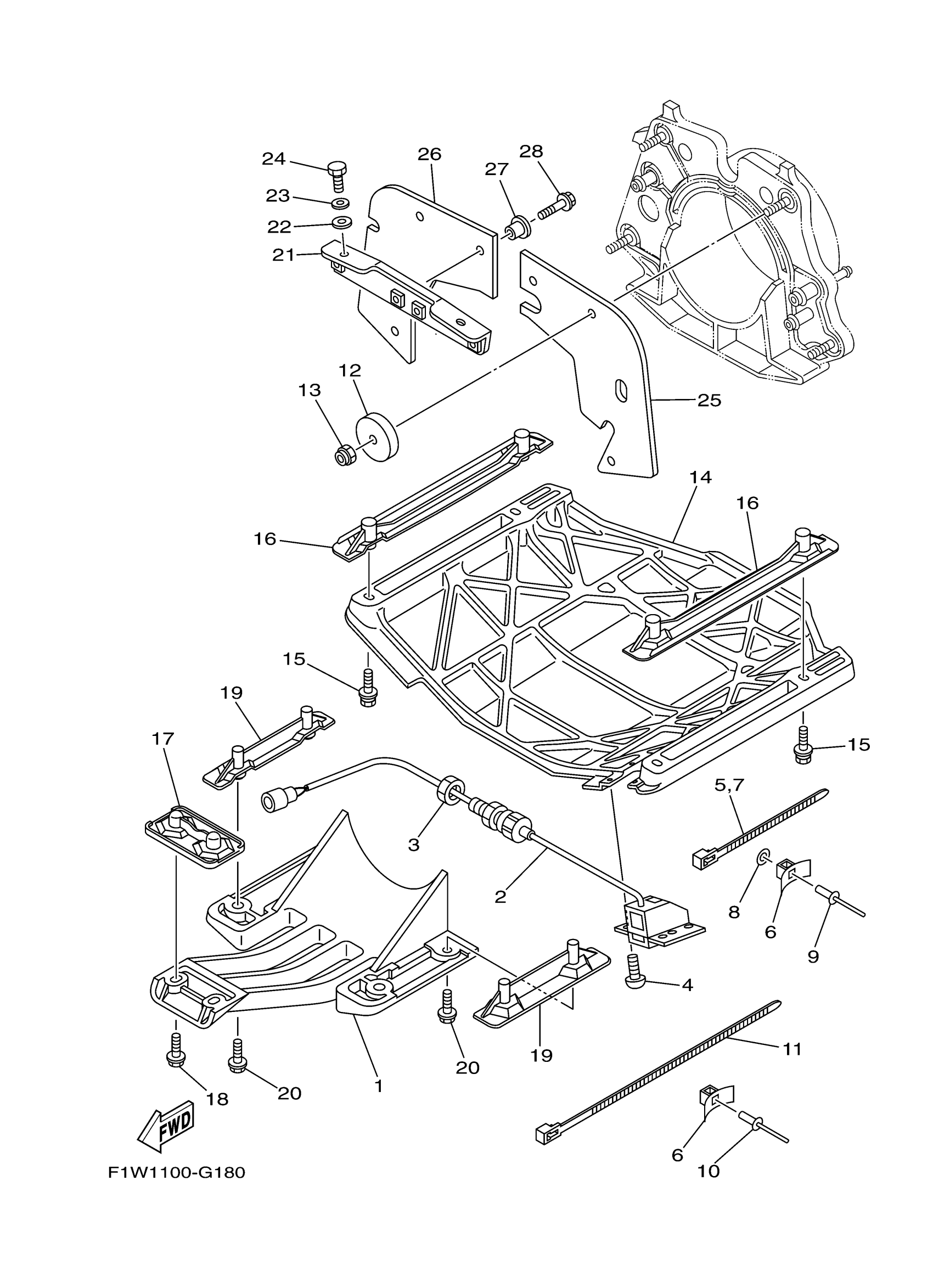

Yamaha FY1800AK (FX CRUISER HO) F2HB 2011 JET UNIT 4 Diagram
#
1
SCREEN, INTAKE
6B6-R1333-01-00
Unavailable
2
SENSOR SPEED
F1S-U8K31-03-00
Unavailable
3
NUT
F2C-U151S-00-00
Unavailable
4
SCREW, ROUND HEAD
90150-05807-00
Unavailable
5
CLAMP
90464-32801-00
Unavailable
6
BASE, CLAMP
F1W-U828M-00-00
Unavailable
7
CLAMP
90464-32801-00
Unavailable
8
WASHER
9299R-05200-00
Unavailable
9
RIVET, BLIND
90267-48802-00
Unavailable
10
RIVET, BLIND
90267-489U6-00
Unavailable
11
CLAMP
90464-99801-00
Unavailable
12
WASHER
F1S-U725E-01-00
Unavailable
13
NUT, NYLON
9572R-10300-00
Unavailable
14
PLATE 2
F1W-6273B-02-00
Unavailable
15
BOLT, WITH WASHER
90119-08829-00
Unavailable
16
BRACKET 2
F1B-U8572-01-00
Unavailable
17
BRACKET, 3
F1K-U8577-01-00
Unavailable
18
BOLT, WITH WASHER
90119-06896-00
Unavailable
19
BRACKET 1
F1G-U8571-02-00
Unavailable
20
BOLT, WITH WASHER
90119-08829-00
Unavailable
21
BRACKET
F1B-67557-00-00
Unavailable
22
GASKET
90430-12002-00
Unavailable
23
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
24
BOLT
90109-08043-00
Unavailable
25
PLATE, RUBBER 1
F1X-U757E-00-00
Unavailable
26
PLATE, RUBBER 2
F1X-U757F-00-00
Unavailable
27
COLLAR
90387-06080-00
Unavailable
28
BOLT, WITH WASHER
90119-06827-00
Unavailable
