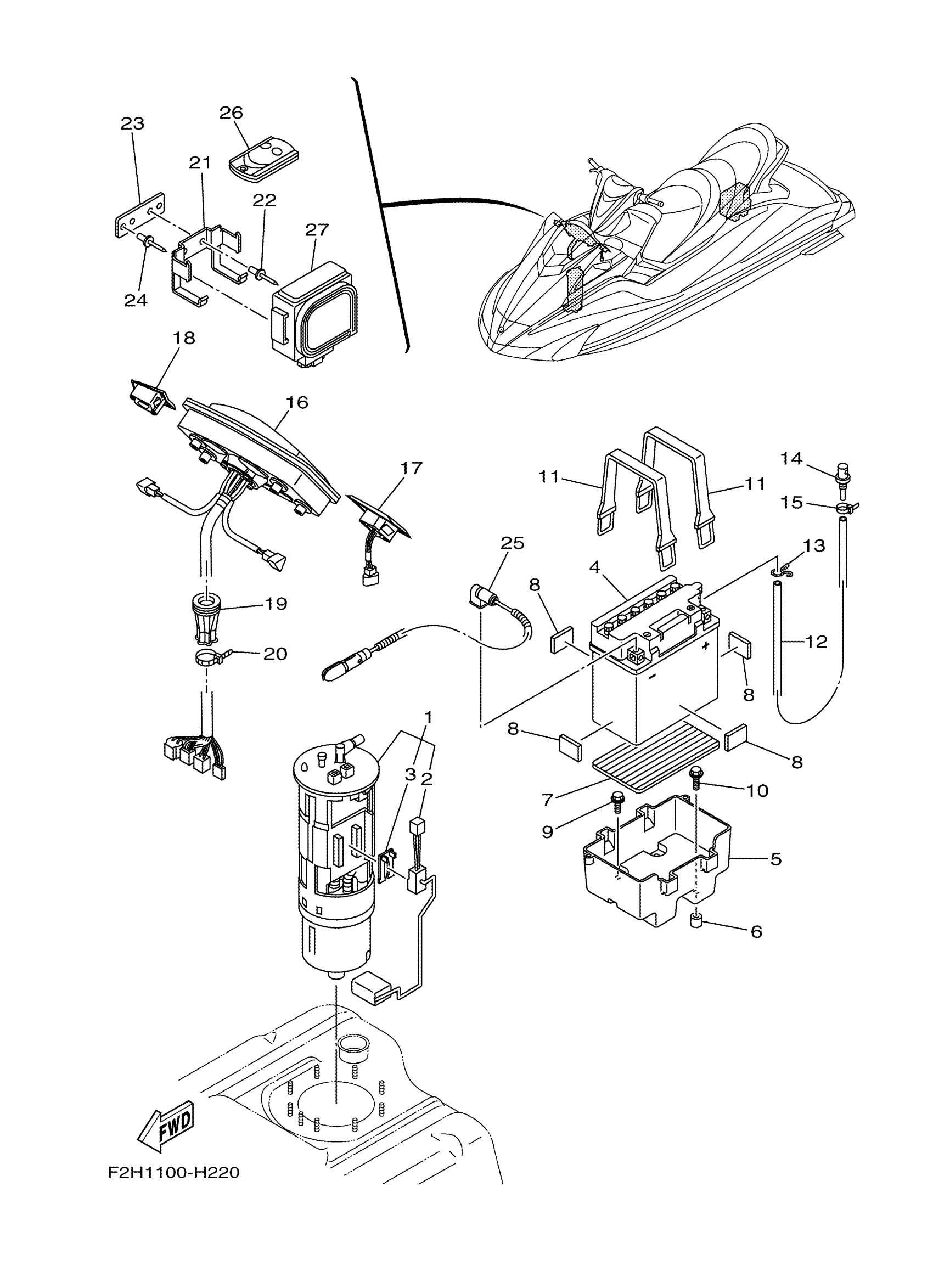

Yamaha FY1800AK (FX CRUISER HO) F2HB 2011 ELECTRICAL 3 Diagram

#

Description
Price

1

FUEL PUMP COMP.

6S5-13907-05-00

$1,050.38

2

FUEL SENDER ASSY SET

99999-04571-00

Unavailable

3

DAMPER, STOPPER

60E-82556-10-00

$18.49

4

BATTERY ASSY

EU0-82110-08-00

Unavailable

5

CASE, BATTERY

GP7-U8211-00-00

Unavailable

6

PLATE, BATTERY

F1B-6821G-01-00

$4.09

7

PAD, BATTERY

F1S-U8221-00-00

$2.75

8

PAD, BATTERY

EU0-U8221-31-00

$1.65

9

BOLT, WITH WASHER

90119-069US-00

$2.52

10

BOLT, WITH WASHER

90119-06820-00

$3.52

11

BAND,BATTERY 1

EU0-U821D-00-00

$7.33

12

HOSE, AIR VENT

F0D-U785G-11-00

Unavailable

13

CLIP

90467-089U1-00

$1.44

14

NIPPLE

GJ3-6215F-00-00

$9.08

15

CLAMP

90465-10098-00

$1.68

16

METER ASSY

F1W-6820A-12-00

$1,248.47

17

SWITCH ASSY.

F1X-68090-00-00

$192.41

18

PANEL

F1Y-68322-00-00

$115.14

19

GROMMET

F3J-U822E-01-00

$5.59

20

CLAMP

90464-32801-00

$1.23

21

BRACKET

F1W-U826C-00-00

$18.17

22

RIVET (EU0)

90267-48938-00

$5.00

23

PLATE

F1W-U8376-00-00

$2.80

24

RIVET (EU0)

90267-48938-00

$5.00

25

WIRE, MINUS LEAD

6JP-82116-00-00

$65.14

26

XMTR. COMP.

6B6-86261-00-00

$228.48

27

RECEIVER COMPLETE

6B6-86265-00-00

$427.26
