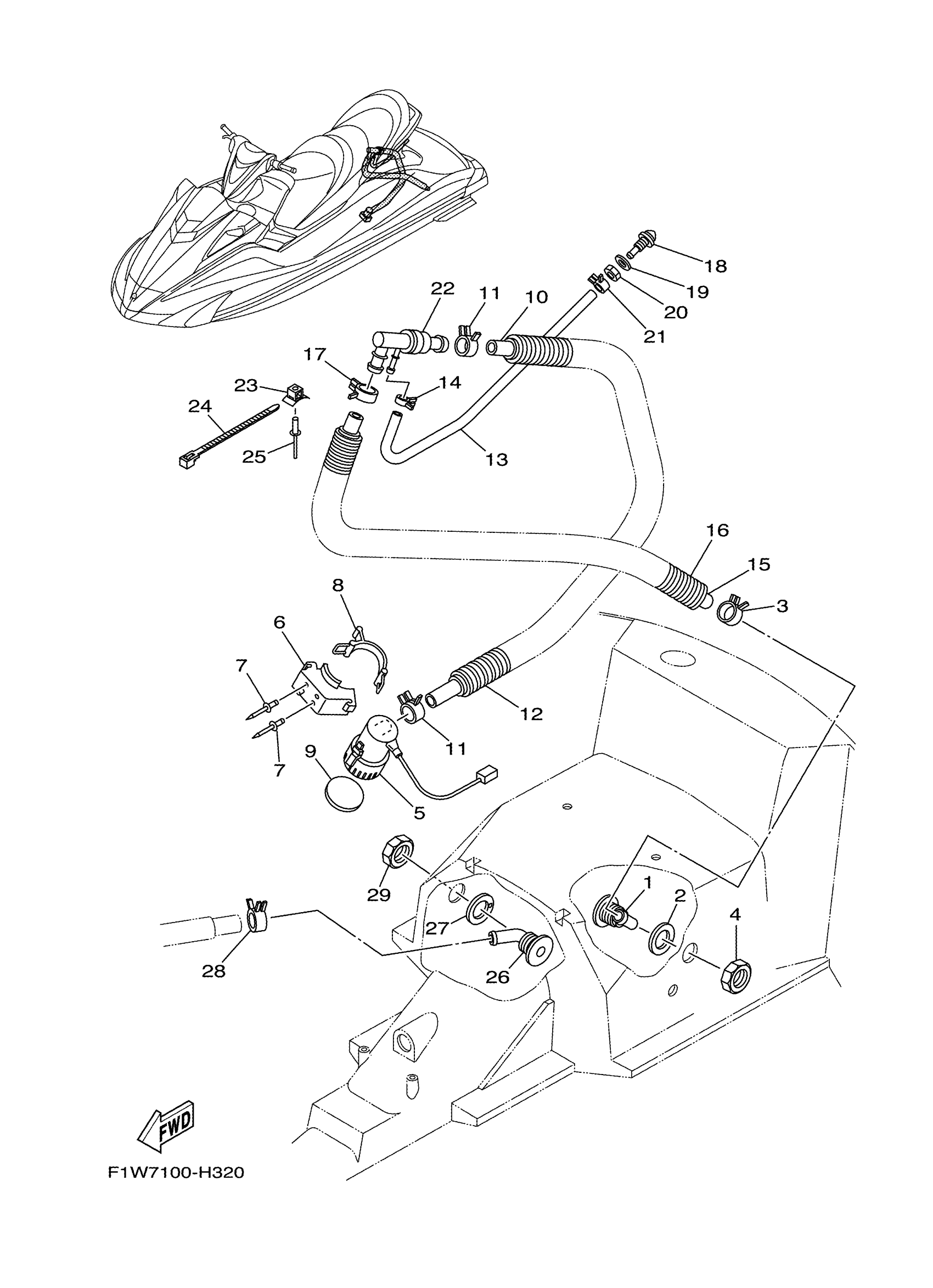

Yamaha FY1800AK (FX CRUISER HO) F2HB 2011 BILGE PUMP Diagram
#
1
BODY, DRAIN 3
F1W-U224E-00-00
Unavailable
2
PACKING
F1S-U7525-01-00
Unavailable
3
CLIP
90467-26800-00
Unavailable
4
DRAIN, COCKPIT
F1B-62241-00-00
Unavailable
5
BILGE PUMP ASSY
F1B-U8360-02-00
Unavailable
6
BRACKET
F1B-U7698-01-00
Unavailable
7
RIVET, 1
F3J-U516R-00-00
Unavailable
8
BAND, BATTERY
GA7-68218-00-00
Unavailable
9
PACKING, BILGE
F1B-U7656-00-00
Unavailable
10
HOSE 1
F1B-U7626-00-00
Unavailable
11
CLIP
90467-25801-00
Unavailable
12
TUBE
F2T-U773D-10-00
Unavailable
13
HOSE, DRAIN 2
F1W-U7629-00-00
Unavailable
14
CLIP
90467-14803-00
Unavailable
15
HOSE, DRAIN 3
F1B-U7628-00-00
Unavailable
16
TUBE
F2T-U773D-10-00
Unavailable
17
CLIP
90467-26800-00
Unavailable
18
PILOT,WATER
GH7-6753B-00-00
Unavailable
19
GASKET(GJ1)
90430-16910-00
Unavailable
20
NUT
GP7-61652-00-00
Unavailable
21
CLIP
90467-14803-00
Unavailable
22
HOSE JOINT
F1S-67620-00-00
Unavailable
23
BASE, CLAMP
F1W-U828M-00-00
Unavailable
24
CLAMP
F2C-U4256-00-00
Unavailable
25
RIVET, BLIND
90267-489U6-00
Unavailable
26
BODY, DRAIN 3
F1W-U224E-00-00
Unavailable
27
PACKING
F1S-U7525-01-00
Unavailable
28
CLIP
90467-26800-00
Unavailable
29
DRAIN, COCKPIT
F1B-62241-00-00
Unavailable
