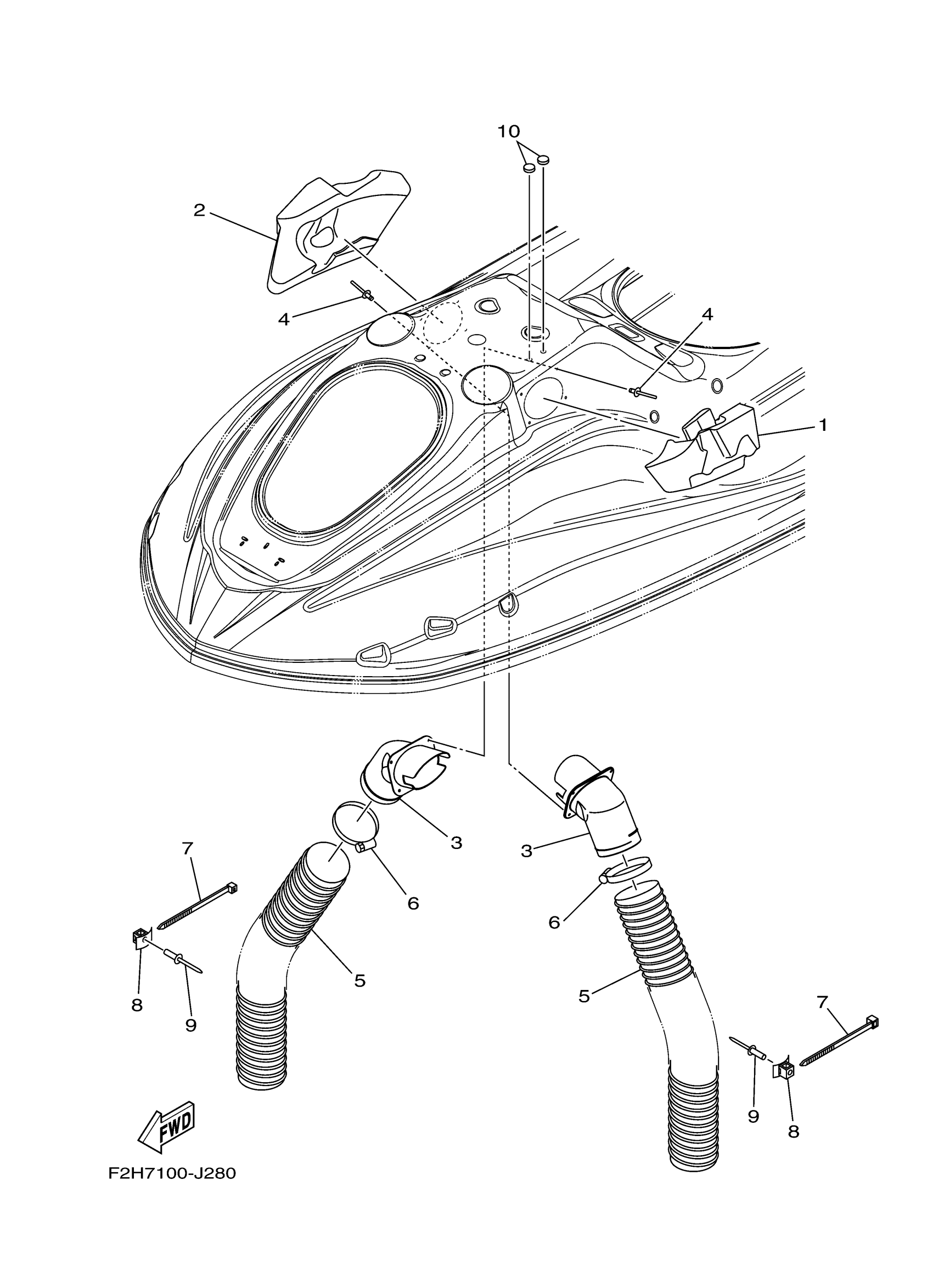

Yamaha FY1800AJ (FX CRUISER HO) F2H7 2010 VENTILATION Diagram

#

Description
Price

1

BOX, INDUCTION 1

F1W-U2187-00-00

Unavailable

2

BOX, INDUCTION 2

F1W-U2188-00-00

Unavailable

3

BASE, AIR INTAKE

F1W-U2127-01-00

$12.86

4

RIVET, BLIND

90267-48806-00

$2.00

5

HOSE, VENTILATOR 2

F0X-U213G-01-00

Unavailable

6

BAND

90601-200U7-00

$3.11

7

CLAMP

90464-99804-00

$4.17

8

BASE, CLAMP

F1W-U828M-00-00

$1.23

9

RIVET, BLIND

90267-48802-00

$1.98

10

. SEAL 1

F2R-U884B-00-00

$0.83
