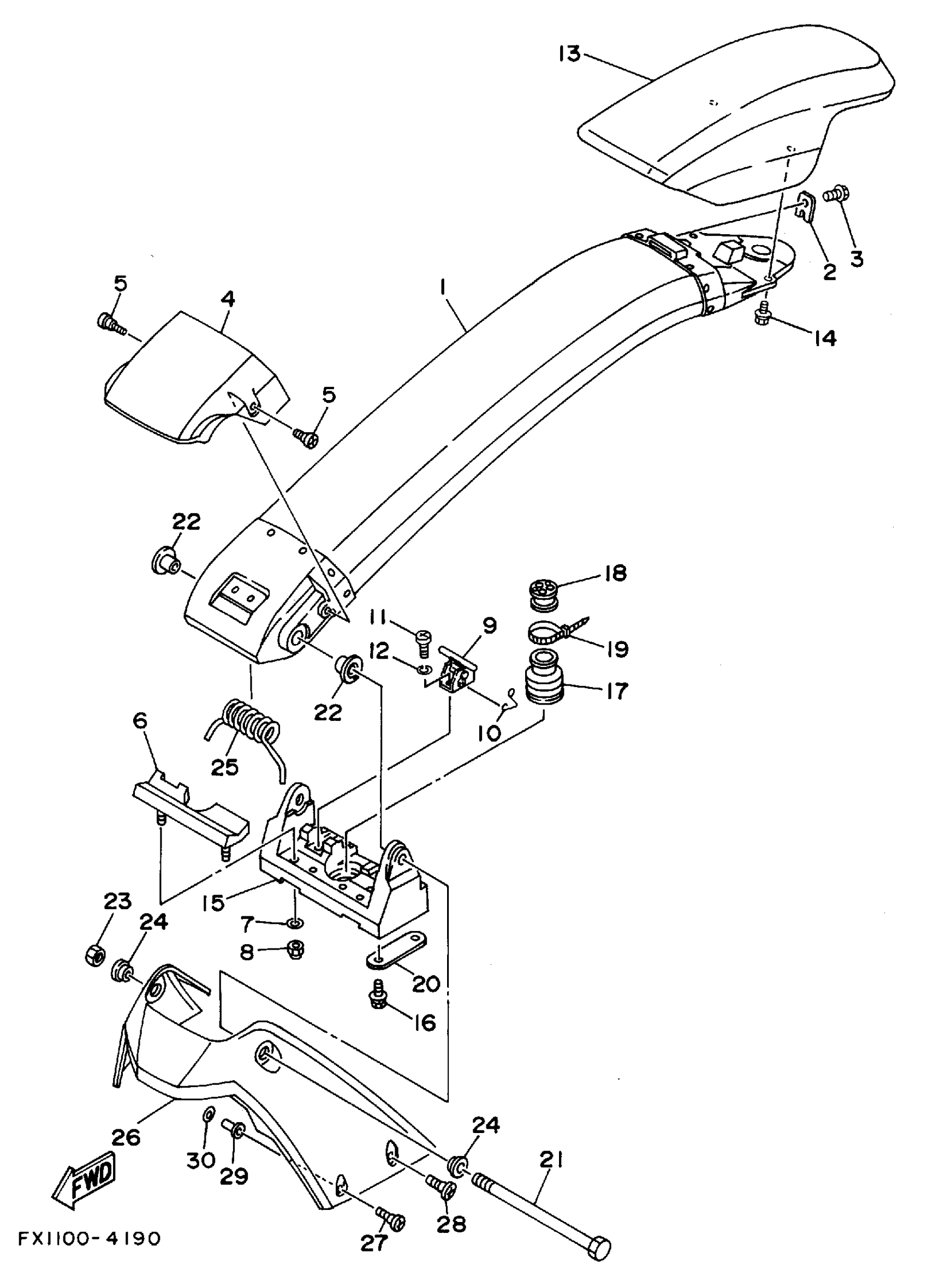

Yamaha FX700T (FX-1) 1995 STEERING 2 Diagram

#

Description
Price

1

STEERING POLE COMP.

FX1-6491A-00-R9

Unavailable

2

STOPPER, CABLE

FX1-61468-00-00

$11.35

3

BOLT, WITH WASHER

90119-06913-00

$1.28

4

COVER, POLE

FX1-6492E-00-00

Unavailable

5

SCREW(FX1)

90149-06997-00

$10.67

6

STOPPER, POLE

FX1-61337-00-00

$19.68

7

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

8

NUT, NYLON (AU1)

90185-06901-00

Unavailable

9

STOPPER PIN ASSY

FX1-61105-00-00

$63.62

10

SPRING, TORSION

EW2-61395-30-00

$6.82

11

SCREW,PAN HEAD (646)

98580-05012-00

$5.52

12

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

13

STEERING PAD COMP.

FX1-6142A-00-00

Unavailable

14

BOLT, WITH WASHER

90119-06913-00

$1.28

15

BRACKET,PIVOT

FX1-6133C-13-00

$416.65

16

BOLT, WITH WASHER

90119-08038-00

$4.99

17

GROMMET

FX1-61338-00-00

$43.92

18

PACKING, CABLE

EW2-61465-00-00

$13.99

19

BAND (EU0)

90601-20009-00

$6.36

20

PLATE, BRACKET

FX1-6133B-00-00

Unavailable

21

SHAFT,PIVOT

FX1-6134L-00-00

$96.95

22

BUSH

EW2-61344-01-00

$10.49

23

. NUT

95380-14700-00

$8.03

24

COLLAR

90387-14913-00

Unavailable

25

SPRING, PIVOT

FX1-61391-00-00

$69.49

26

COVER, PIVOT 1

FX1-6492J-00-00

Unavailable

27

SCREW(FX1)

90149-06997-00

$10.67

28

SCREW

90149-06900-00

Unavailable

29

NUT, POP

90179-06922-00

Unavailable

30

WASHER

90201-09924-00

Unavailable
