1995 Yamaha FX-1 (FX700T) Graphic - Tool Diagram

← All diagrams

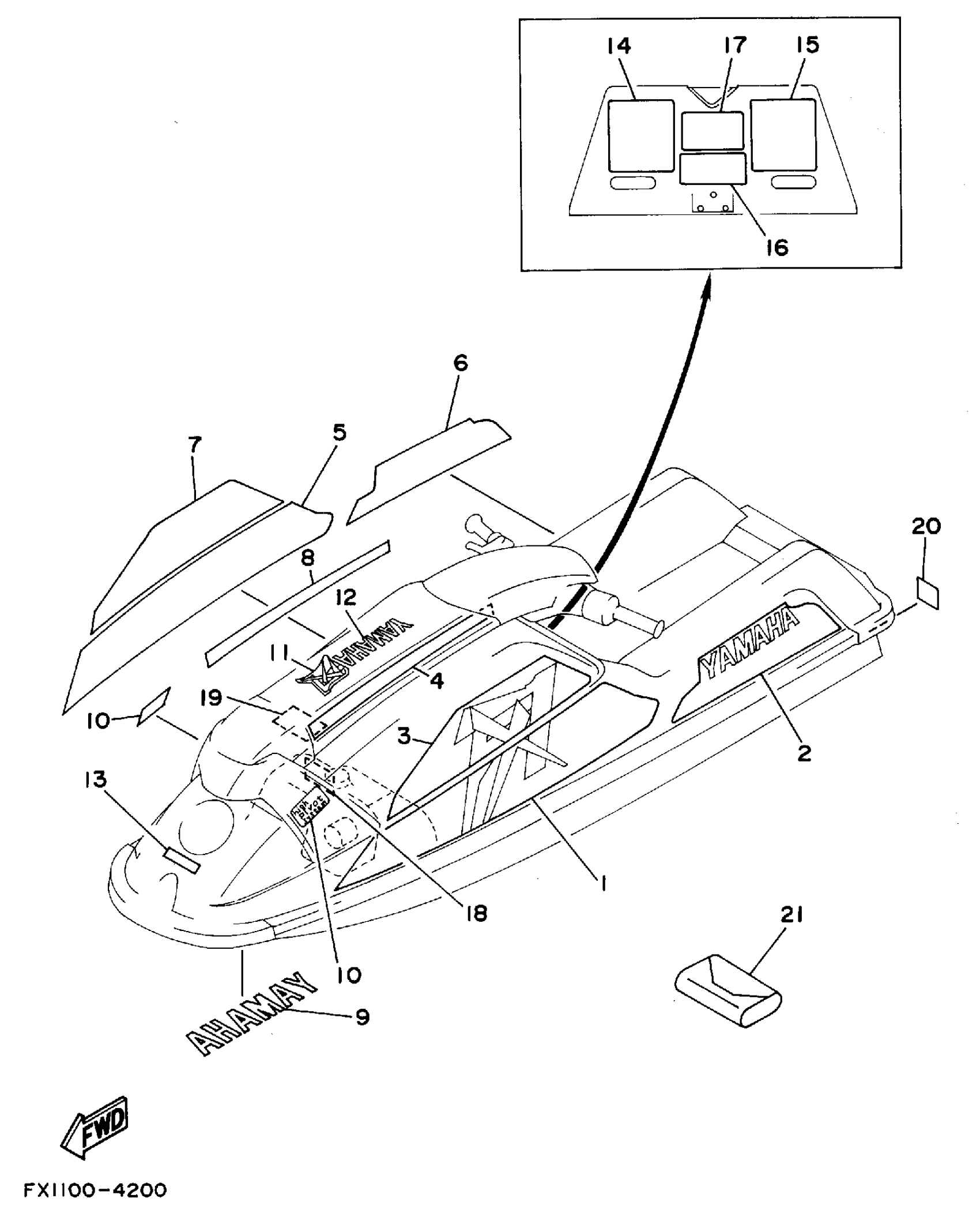

Find the part on the Graphic - Tool diagram for your 1995 Yamaha FX-1 (FX700T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Yamaha FX-1 (FX700T) Graphic - Tool Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRAPHIC 1

FX1-6417B-10-00

1
Out of stock

2

GRAPHIC 2

FX1-6417C-10-00

1
Out of stock

3

GRAPHIC 3

FX1-6417D-10-00

1
Out of stock

4

GRAPHIC 4

FX1-6417E-10-00

1

$46.99

In stock

5

GRAPHIC 1

FX1-6417B-20-00

1
Out of stock

6

GRAPHIC 2

FX1-6417C-20-00

1
Out of stock

7

GRAPHIC 3

FX1-6417D-20-00

1
Out of stock

8

GRAPHIC 4

FX1-6417E-20-00

1
Out of stock

9

MARK, YAMAHA

FX1-64114-00-00

1
Out of stock

10

EMBLEM 1

FX1-64121-00-00

1
Out of stock

11

EMBLEM 2

FX1-64122-00-00

1
Out of stock

12

EMBLEM, YAMAHA

99244-00160-00

—

$13.22

In stock

13

LABEL, WARNING

EU0-U416B-00-00

1
Out of stock

14

LABEL, WARNING 1

GH7-6416C-00-00

1
Out of stock

15

LABEL, WARNING 2

GH7-6416D-00-00

1
Out of stock

16

LABEL, CAUTION 2

EW2-64183-30-00

1
Out of stock

17

LABEL,CAUTION 5

EW2-64183-60-00

1
Out of stock

18

LABEL, FUEL TANK

FX1-6418D-00-00

1
Out of stock

19

LABEL, CAUTION (BATTERY)

EU0-U418B-00-00

1
Out of stock

20

LABEL, RIGHTING

EU0-64188-00-00

1
Out of stock

21

TOOL SET

EU0-65986-13-00

1
Out of stock
