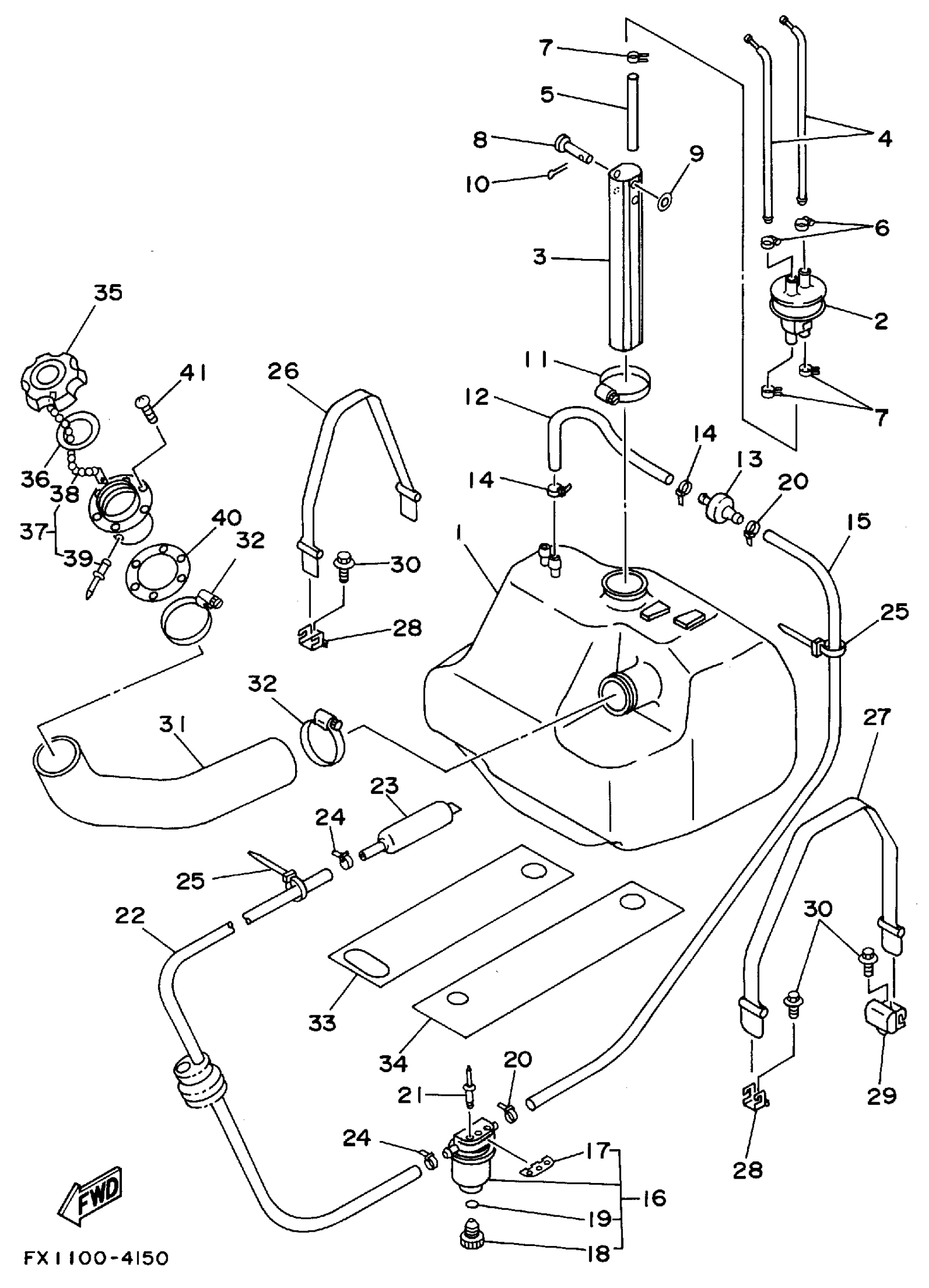

Yamaha FX700T (FX-1) 1995 FUEL TANK Diagram

#

Description

Price

1

TANK, FUEL

FX1-67711-00-00

Unavailable

2

PIPE, JOINT

FJ0-67713-01-00

Unavailable

3

SLEEVE 1

FN8-67716-01-00

Unavailable

4

PIPE, SUCTION

FX1-6771B-00-00

Unavailable

5

HOSE (L198)

90445-11293-00

$9.49

6

BAND, HOSE 11

90601-11062-00

Unavailable

7

CLIP (7K7)

90467-11044-00

$8.49

8

PIN (FJ0)

91790-05040-00

$7.49

9

WASHER, PLAIN (646)

92990-05600-00

$0.80

10

PIN. COTTER

91490-16010-00

Unavailable

11

BAND, HOSE 62

90601-162U5-00

Unavailable

12

HOSE

90699-50100-00

Unavailable

13

CHECK VALVE

EU0-67767-31-00

Unavailable

14

CLAMP

90465-10098-00

Unavailable

15

HOSE

90699-50135-00

Unavailable

16

FILTER, VENT ASSY

F2F-6214A-00-00

Unavailable

17

. PLATE, FILTER

EW2-62142-00-00

Unavailable

18

. PLUG, DRAIN

70R-24543-00-00

Unavailable

19

. O-RING

70R-24489-00-00

Unavailable

20

CLAMP

90465-10098-00

Unavailable

21

RIVET, BLIND

90267-48940-00

Unavailable

22

HOSE, AIRVENT 3

FX1-67856-00-00

Unavailable

23

AIR, VENT ASSY

EW2-62150-00-00

Unavailable

24

CLAMP

90465-10098-00

Unavailable

25

BAND

90601-200U1-00

Unavailable

26

BAND, FUEL TANK

EW2-67821-00-00

Unavailable

27

BAND, FUEL TANK

EW2-67821-30-00

Unavailable

28

HOOK A

EW2-65772-00-00

Unavailable

29

HOOK B ASSY

FX1-65760-00-00

Unavailable

30

BOLT,FLANGE (EW2)

90105-06900-00

Unavailable

31

HOSE

FX1-67844-00-00

Unavailable

32

BAND, HOSE 55

90601-155U4-00

Unavailable

33

MAT

FX1-67593-00-00

Unavailable

34

MAT

FX1-67593-40-00

Unavailable

35

CAP, FUEL FILLER

EU0-67831-32-00

Unavailable

36

PACKING 1

EU0-67832-00-00

Unavailable

37

SOCKET

EU0-W6783-30-00

Unavailable

38

. CHAIN BALL

EU0-67835-00-00

Unavailable

39

. RIVET, BLIND

90267-40935-00

Unavailable

40

PACKING, FUEL FILLER

EU0-67834-00-00

Unavailable

41

SCREW, FLAT HEAD TAPPING

EU0-U7869-00-00

Unavailable
