ELECTRICAL 1

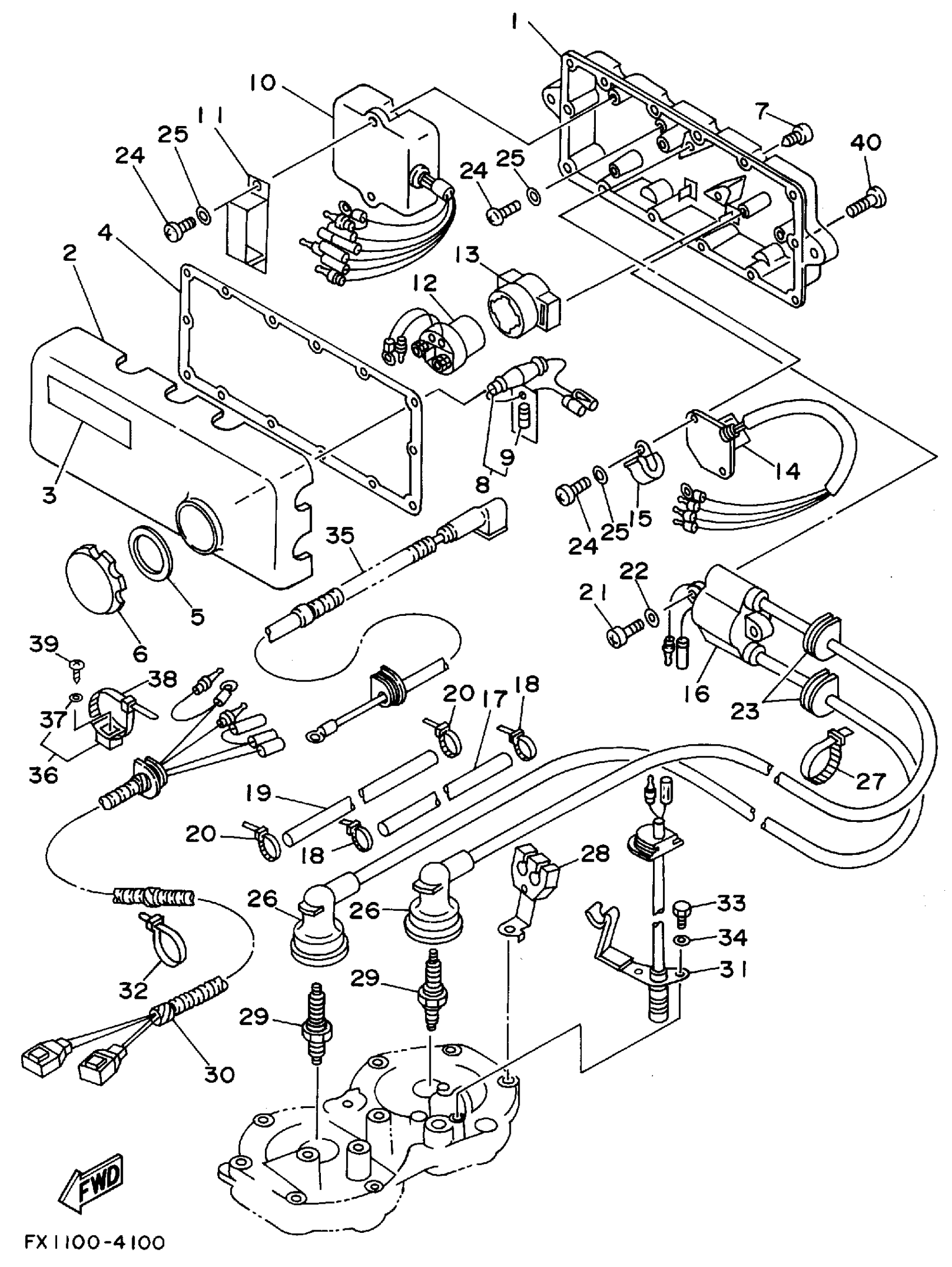

Yamaha FX700T (FX-1) 1995 ELECTRICAL 1 Diagram
#
1
HOUSING
62L-8552A-00-8P
Unavailable
2
COVER, CASE
6M6-8552E-01-00
Unavailable
3
MARK 3
6R7-83623-40-00
Unavailable
4
GASKET, TERMINAL
6M6-81921-00-00
Unavailable
5
GASKET
6M6-81844-00-00
Unavailable
6
CAP
6M6-8132W-00-00
Unavailable
7
SCREW, TAPPING(65J)
97780-60625-00
Unavailable
8
FUSE HOLDER ASSY
6K8-82150-02-00
$38.99
9
FUSE (10A)
1E6-82151-00-00
$7.99
10
C.D.I. UNIT ASSY
6M6-85540-02-00
Unavailable
11
CLAMP
90464-06M29-00
Unavailable
12
STARTER RELAY ASSY
6G1-81941-10-00
Unavailable
13
HOLDER, RELAY
6M6-81952-01-00
Unavailable
14
RECTIFIER & REGULATOR ASSY
6M6-81960-A0-00
Unavailable
15
CLAMP
90465-08028-00
Unavailable
16
IGNITION COIL ASSEMBLY
62L-85570-00-00
Unavailable
17
TUBE, CORD
63M-82351-00-00
Unavailable
18
CLAMP
90465-10098-00
Unavailable
19
TUBE, CORD
63M-82351-00-00
Unavailable
20
CLAMP
90465-10098-00
Unavailable
21
SCREW, PAN HEAD(6E0)
97885-06030-00
Unavailable
22
WASHER, PLAIN (646)
92990-06600-00
Unavailable
23
GROMMET
90480-06M43-00
Unavailable
24
SCREW, PAN HEAD
98580-06016-00
Unavailable
25
WASHER, PLAIN (646)
92990-06600-00
Unavailable
26
PLUG CAP ASSEMBLY
6K8-82370-00-00
Unavailable
27
CLAMP
90465-10098-00
Unavailable
28
CLAMP, CORD
6R8-82361-00-00
Unavailable
29
BR8HS NGK SCREW TOP PLUG 4PK
BR8-HS000-00-00
Unavailable
30
EXTENSION, WIRE LEAD
6M6-82553-01-00
Unavailable
31
THERMO SWITCH ASSEMBLY
62L-82560-00-00
Unavailable
32
CLAMP
90465-10098-00
Unavailable
33
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
34
WASHER, SPRING
92995-06100-00
Unavailable
35
WIRE, LEAD
6M6-82117-21-00
Unavailable
36
CLAMP COMP (EU0)
90600-91736-00
Unavailable
37
. WASHER, PLAIN
90201-05925-00
Unavailable
38
BAND (EU0)
90601-20009-00
Unavailable
39
SCREW, PANHEAD TAPPING (682)
97780-50514-00
Unavailable
40
SCREW, BIND
90149-08998-00
Unavailable
