1994 Yamaha FX-1 (FX700S) Steering 2 Diagram

← All diagrams

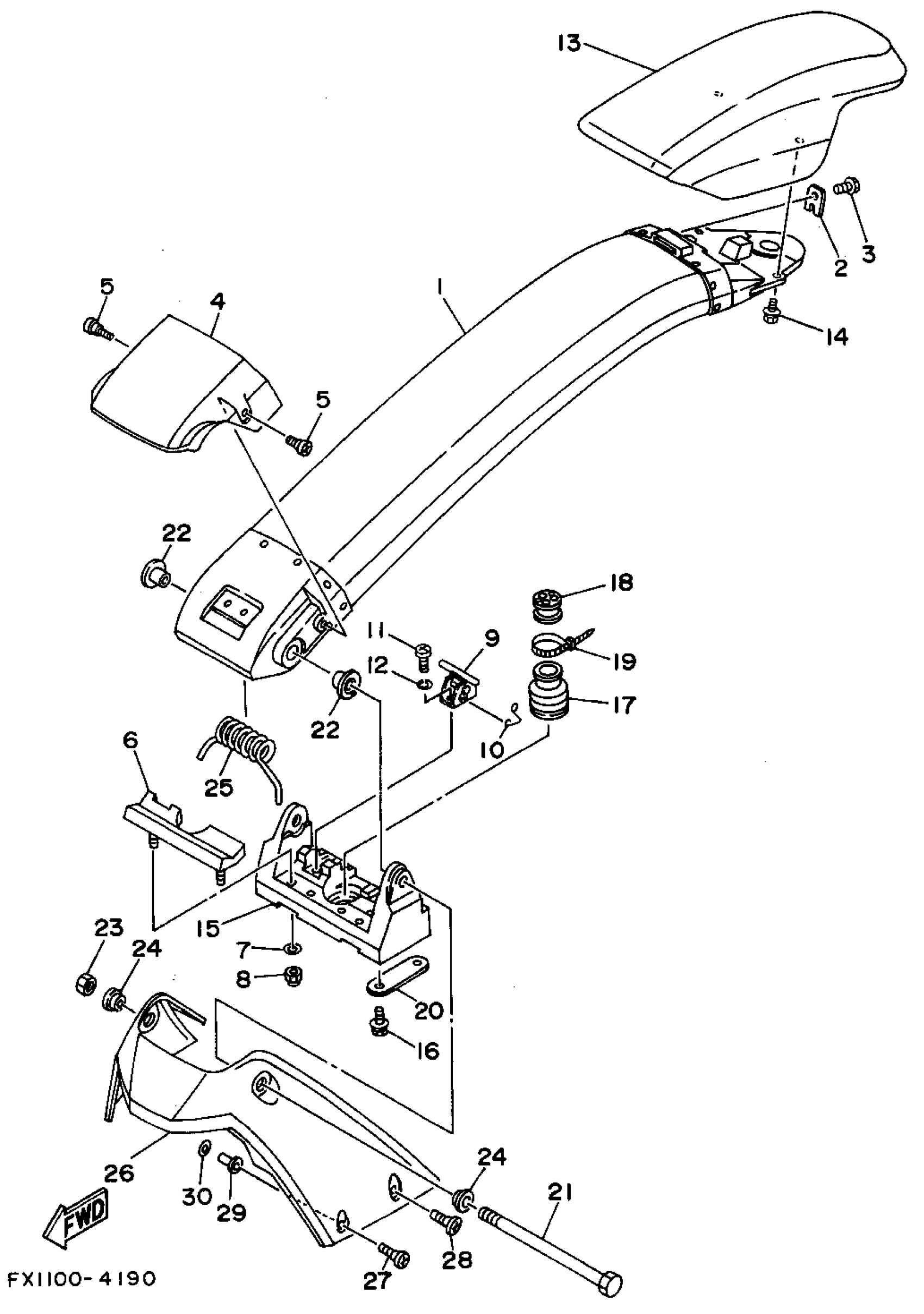

Find the part on the Steering 2 diagram for your 1994 Yamaha FX-1 (FX700S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Yamaha FX-1 (FX700S) Steering 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING POLE COMP.

FX1-6491A-00-R9

1
Out of stock

2

STOPPER, CABLE

FX1-61468-00-00

1

$11.49

In stock

3

BOLT, WITH WASHER

90119-06913-00

1

$1.33

In stock

4

COVER, POLE

FX1-6492E-00-00

1
Out of stock

5

SCREW(FX1)

90149-06997-00

1

$10.83

In stock

6

STOPPER, POLE

FX1-61337-00-00

1

$19.98

In stock

7

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

8

NUT, NYLON (AU1)

90185-06901-00

—

$3.37

In stock

9

STOPPER PIN ASSY

FX1-61105-00-00

1

$63.99

In stock

10

SPRING, TORSION

EW2-61395-30-00

1

$6.92

In stock

11

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

12

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

13

STEERING PAD COMP.

FX1-6142A-00-00

1
Out of stock

14

BOLT, WITH WASHER

90119-06913-00

1

$1.33

In stock

15

BRACKET,PIVOT

FX1-6133C-13-00

1

$422.49

In stock

16

BOLT, WITH WASHER

90119-08038-00

1

$4.89

In stock

17

GROMMET

FX1-61338-00-00

1

$43.99

In stock

18

PACKING, CABLE

EW2-61465-00-00

1

$13.99

In stock

19

BAND (EU0)

90601-20009-00

1

$6.46

In stock

20

PLATE, BRACKET

FX1-6133B-00-00

1
Out of stock

21

SHAFT,PIVOT

FX1-6134L-00-00

1

$96.99

In stock

22

BUSH

EW2-61344-01-00

1

$10.49

In stock

23

. NUT

95380-14700-00

1

$9.22

In stock

24

COLLAR

90387-14913-00

1
Out of stock

25

SPRING, PIVOT

FX1-61391-00-00

1

$69.49

In stock

26

COVER, PIVOT 1

FX1-6492J-00-00

1
Out of stock

27

SCREW(FX1)

90149-06997-00

1

$10.83

In stock

28

SCREW

90149-06900-00

1
Out of stock

29

NUT, POP

90179-06922-00

1
Out of stock

30

WASHER

90201-09924-00

1
Out of stock
