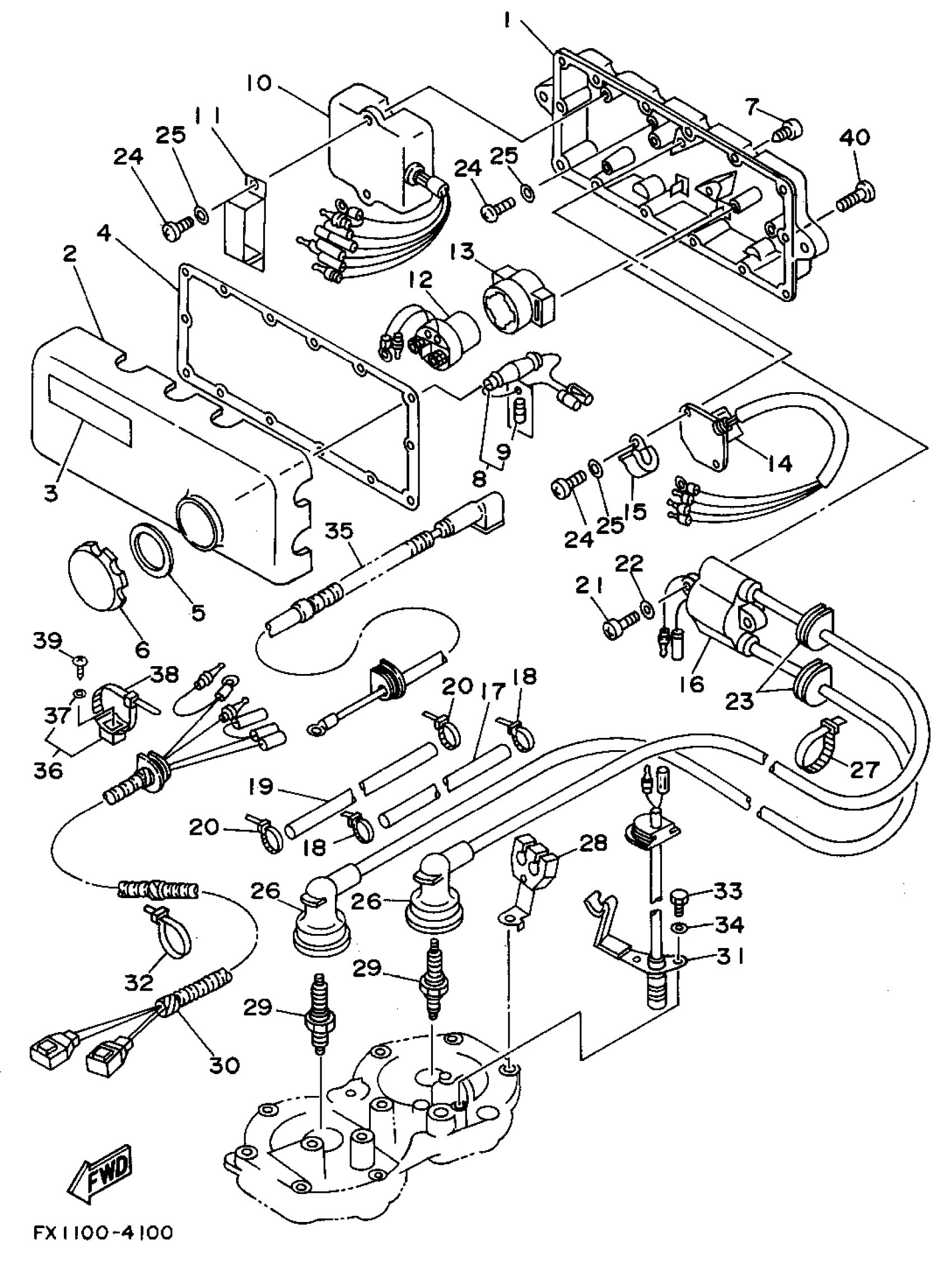

Find the part on the Electrical 1 diagram for your 1994 Yamaha FX-1 (FX700S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Yamaha FX-1 (FX700S) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING

62L-8552A-00-8P

1

$163.99

In stock

2

COVER, CASE

6M6-8552E-01-00

1

$79.49

In stock

3

MARK 3

6R7-83623-40-00

1

$7.38

In stock

4

GASKET, TERMINAL

6M6-81921-00-00

1

$20.98

In stock

5

GASKET

6M6-81844-00-00

1

$10.99

In stock

6

CAP

6M6-8132W-00-00

1

$14.49

In stock

7

SCREW, TAPPING(65J)

97780-60625-00

1

$2.75

In stock

8

FUSE HOLDER ASSY

6K8-82150-02-00

1
Out of stock

9

FUSE (10A)

1E6-82151-00-00

1

$6.22

In stock

10

C.D.I. UNIT ASSY

6M6-85540-02-00

—
Out of stock

11

CLAMP

90464-06M29-00

1

$6.46

In stock

12

STARTER RELAY ASSY

6G1-81941-10-00

1

$71.27

In stock

13

HOLDER, RELAY

6M6-81952-01-00

1
Out of stock

14

RECTIFIER & REGULATOR ASSY

6M6-81960-A0-00

1

$89.88

In stock

15

CLAMP

90465-08028-00

1

$4.62

In stock

16

IGNITION COIL ASSEMBLY

62L-85570-00-00

1
Out of stock

17

TUBE, CORD

63M-82351-00-00

1

$13.99

In stock

18

CLAMP

90465-10098-00

1

$2.24

In stock

19

TUBE, CORD

63M-82351-00-00

1

$13.99

In stock

20

CLAMP

90465-10098-00

1

$2.24

In stock

21

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

22

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

23

GROMMET

90480-06M43-00

1

$5.93

In stock

24

SCREW, PAN HEAD

98580-06016-00

1

$2.90

In stock

25

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

26

PLUG CAP ASSEMBLY

6K8-82370-00-00

1
Out of stock

27

CLAMP

90465-10098-00

1

$2.24

In stock

28

CLAMP, CORD

6R7-82361-00-00

1
Out of stock

29

1

$4.21

In stock

30

EXTENSION, WIRE LEAD

6M6-82553-01-00

1
Out of stock

31

THERMO SWITCH ASSEMBLY

62L-82560-00-00

1
Out of stock

32

CLAMP

90465-10098-00

1

$2.24

In stock

33

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

34

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

35

WIRE, LEAD

6M6-82117-21-00

1
Out of stock

36

CLAMP COMP (EU0)

90600-91736-00

—

$6.68

In stock

37

. WASHER, PLAIN

90201-05925-00

1
Out of stock

38

BAND (EU0)

90601-20009-00

1

$6.46

In stock

39

1

$4.15

In stock

40

SCREW, BIND

90149-08998-00

1
Out of stock
