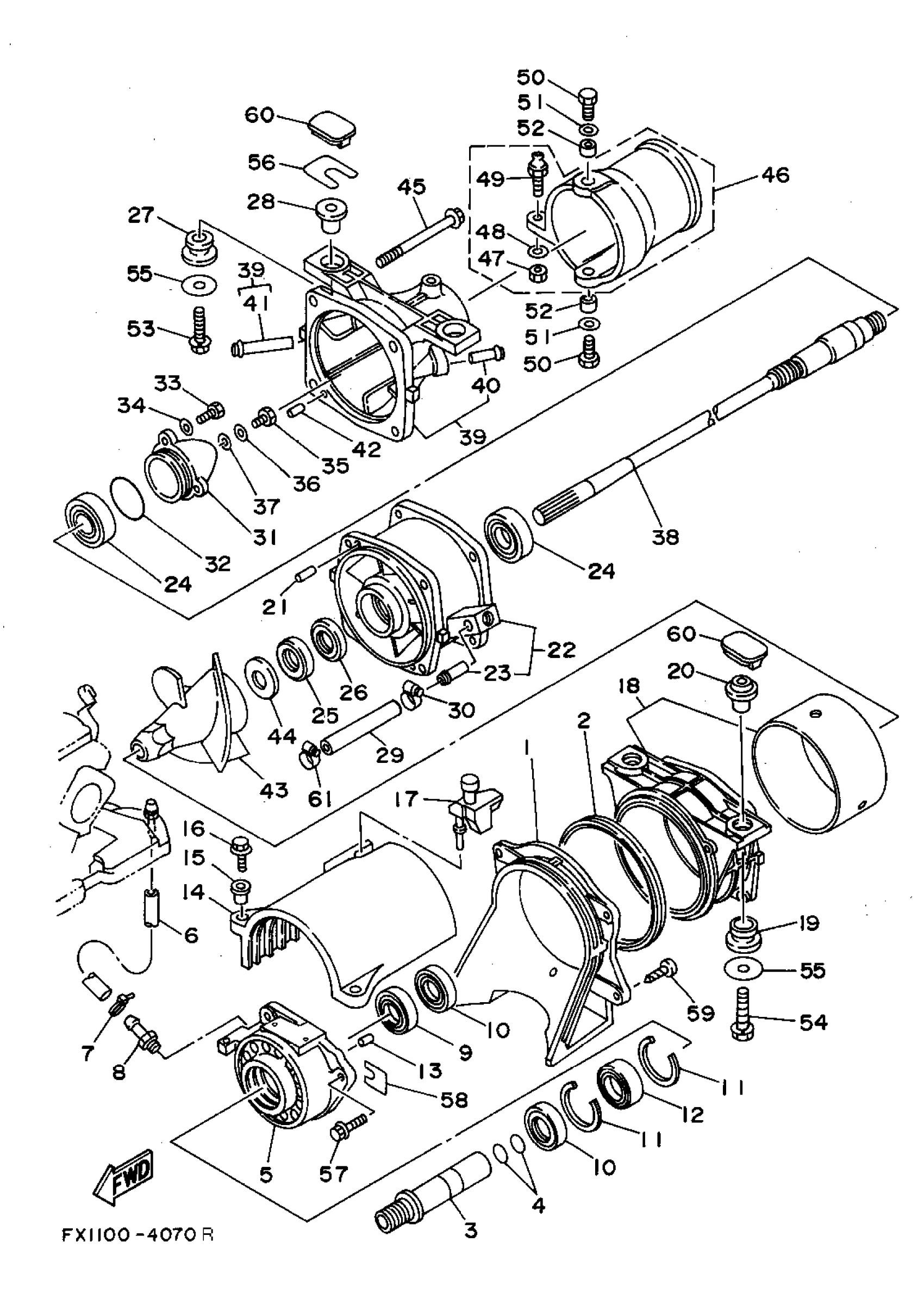

Yamaha FX700S (FX-1) 1994 JET UNIT Diagram

#

Description
Price

1

DUCT,INTAKE

62L-51311-00-5B

Unavailable

2

PACKING

62L-51117-00-00

Unavailable

3

SHAFT, COUPLOR

62L-51323-00-00

Unavailable

4

O-RING(6R7)

93210-17MA4-00

$4.65

5

HOUSING SET, BEARING (61X-00)

99999-02643-00

$431.80

6

HOSE (L445)

90445-09M21-00

$20.98

7

CLAMP

90465-10098-00

$1.68

8

NIPPLE, HOSE

61L-45378-00-00

$11.35

9

OIL SEAL(62T)

93101-25M55-00

$24.36

10

OIL SEAL

93101-24001-00

$30.69

11

CIRCLIP

93430-47M04-00

$5.18

12

BEARING(62G)

93306-205U6-00

$55.29

13

PIN, DOWEL(6R7)

93606-07M17-00

$6.76

14

COVER

61X-51381-00-00

$26.49

15

COLLAR

90387-06M60-00

$6.37

16

BOLT, HEXAGON W/W DEEP RECESS

97E95-06525-00

$1.00

17

GROMMET(GD0)

90480-06M69-00

Unavailable

18

HOUSING, IMPELLER

62L-51312-00-CA

Unavailable

19

GROMMET(62L)

90480-21M63-00

Unavailable

20

COLLAR

90387-09M05-00

Unavailable

21

PIN, DOWEL (614)

93606-12019-00

Unavailable

22

DUCT, IMPELLER

62L-51315-00-94

Unavailable

23

. NIPPLE

6K8-51129-00-00

$9.62

24

BEARING (6K8)

93306-205U1-00

Unavailable

25

OIL SEAL(6R7)

93102-25M34-00

Unavailable

26

OIL SEAL(6R7)

93101-25M50-00

Unavailable

27

GROMMET(62L)

90480-21M63-00

Unavailable

28

COLLAR

90387-09M06-00

Unavailable

29

HOSE

90445-14M17-00

Unavailable

30

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable

31

CAP

62L-51326-00-94

Unavailable

32

. O-RING

93210-46M16-00

$7.15

33

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

34

WASHER, PLAIN (646)

92990-06600-00

Unavailable

35

BOLT(GH1)

97080-06012-00

$2.56

36

WASHER, PLAIN (646)

92990-06600-00

Unavailable

37

. GASKET

90430-06M03-00

$2.80

38

SHAFT, DRIVE

62L-45511-01-00

Unavailable

39

NOZZLE

62L-51318-00-5B

$212.11

40

. NIPPLE

6K8-51129-00-00

$9.62

41

. NIPPLE

62L-51129-00-00

Unavailable

42

PIN, DOWEL (614)

93606-12019-00

Unavailable

43

IMPELLER

62L-51321-00-CA

Unavailable

44

SPACER

62T-51348-00-00

$52.82

45

BOLT, WASHER BASED

90105-08M86-00

Unavailable

46

NOZZLE, DEFLECTOR

62L-51313-00-00

Unavailable

47

NUT(650)

95380-06700-00

Unavailable

48

WASHER, PLATE

90201-06M02-00

$2.20

49

. BOLT, JOINT

6R7-42316-00-00

$34.49

50

BOLT (62G)

97095-08025-00

Unavailable

51

.. WASHER, PLATE

92990-08600-00

$2.17

52

COLLAR

90387-08M07-00

Unavailable

53

BOLT, WITH WASHER

90119-08936-00

Unavailable

54

BOLT, WITH WASHER

90119-08937-00

Unavailable

55

WASHER, PLATE

90201-08934-00

Unavailable

56

SHIM (T=0.1)

EW2-67354-00-01

Unavailable

57

BOLT, WITH WASHER

90119-08907-00

$5.45

58

SHIM (T=0.5)

GD0-67249-A0-00

$4.99

59

SCREW, TAPPING

97780-60520-00

$4.09

60

COVER

FX1-68825-01-00

Unavailable

61

NYLON CLIP 1(GH1)

90601-11583-00

Unavailable
