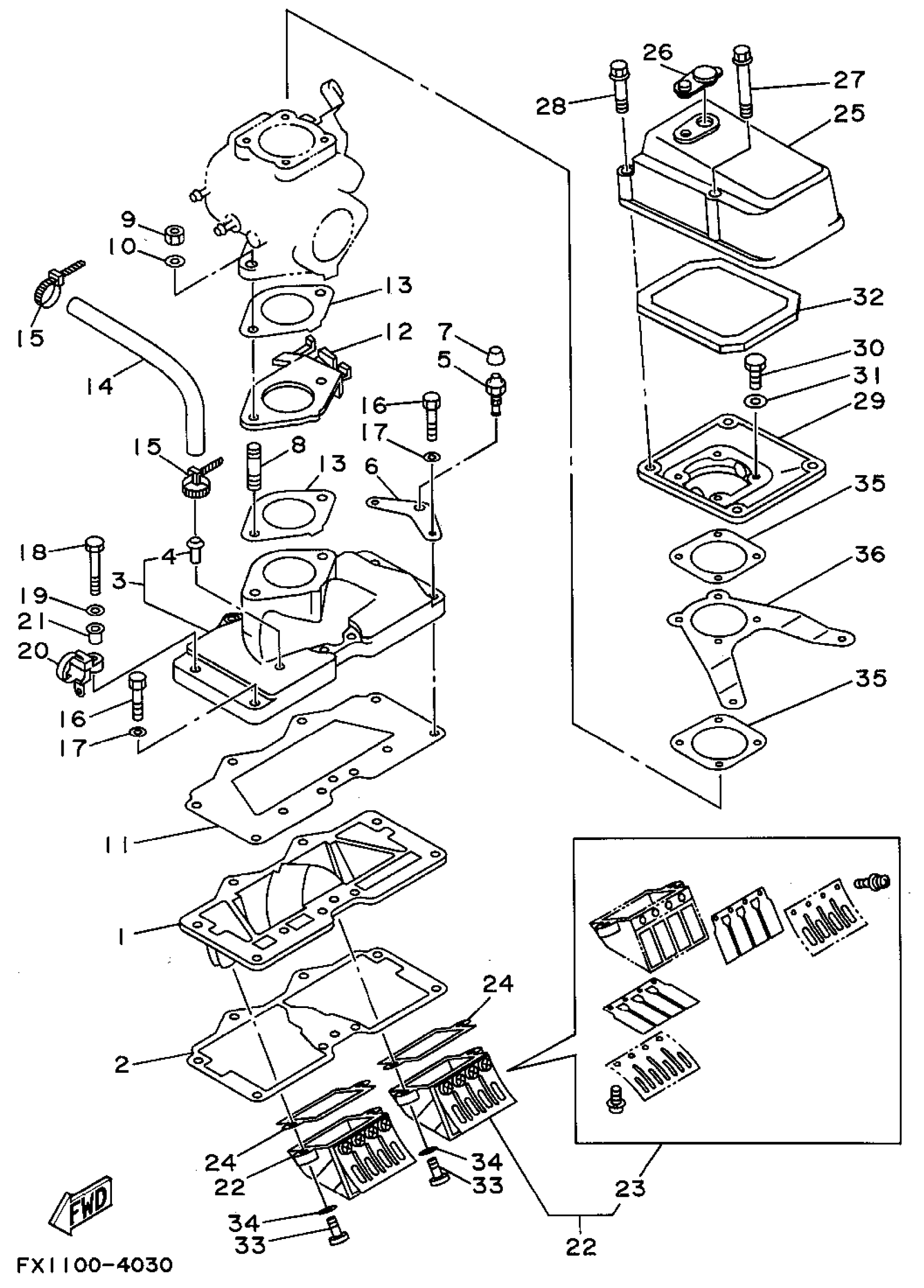

Yamaha FX700S (FX-1) 1994 INTAKE Diagram
#
1
MANIFOLD 1
61X-13641-01-94
Unavailable
2
GASKET
61X-13566-A1-00
Unavailable
3
MANIFOLD, INTAKE
61X-13555-01-8P
Unavailable
4
. PIPE, JOINT 4
652-24461-00-00
Unavailable
5
NIPPLE, GREASE
61L-5169A-00-00
Unavailable
6
PLATE
61L-14243-00-00
Unavailable
7
CAP, GREASE NIPPLE
663-45119-01-00
$2.24
8
BOLT, STUD
90116-08M14-00
Unavailable
9
NUT (661)
95380-08600-00
$7.49
10
.. WASHER, PLATE
92990-08600-00
Unavailable
11
GASKET
61X-13563-A1-00
Unavailable
12
PLATE
6M6-14527-02-94
Unavailable
13
GASKET, MANIFOLD
6M6-13556-A1-00
Unavailable
14
HOSE (L400)
90445-10M43-00
Unavailable
15
CLAMP
90465-10098-00
Unavailable
16
BOLT(3RV)
97014-06035-00
Unavailable
17
WASHER, PLAIN (646)
92990-06600-00
Unavailable
18
BOLT, HEXAGON
97080-06045-00
Unavailable
19
WASHER, PLAIN (646)
92990-06600-00
Unavailable
20
CLAMP
90465-12M53-00
Unavailable
21
COLLAR
90387-06M05-00
Unavailable
22
REED VALVE ASSY
61X-13610-01-00
Unavailable
23
. REED SET
61X-W0004-00-00
Unavailable
24
. GASKET, VALVE SEAT
61X-13621-A0-00
Unavailable
25
COVER, CARBURETOR 1
61X-14283-01-00
Unavailable
26
GROMMET
6K8-14435-00-00
Unavailable
27
BOLT, WITH WASHER
90119-05M02-00
Unavailable
28
BOLT, WITH WASHER
90119-05M01-00
Unavailable
29
COVER, CARBURETOR 2
6M6-14284-00-8P
Unavailable
30
BOLT(7U8)
97080-06020-00
Unavailable
31
WASHER, PLAIN (646)
92990-06600-00
Unavailable
32
ELEMENT, AIR CLEANER
6M6-14451-00-00
Unavailable
33
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
34
WASHER, PLAIN (646)
92990-05600-00
Unavailable
35
GASKET, AIR COOLER COVER 1
6M6-13674-A1-00
Unavailable
36
PLATE
6R7-14255-00-00
Unavailable
