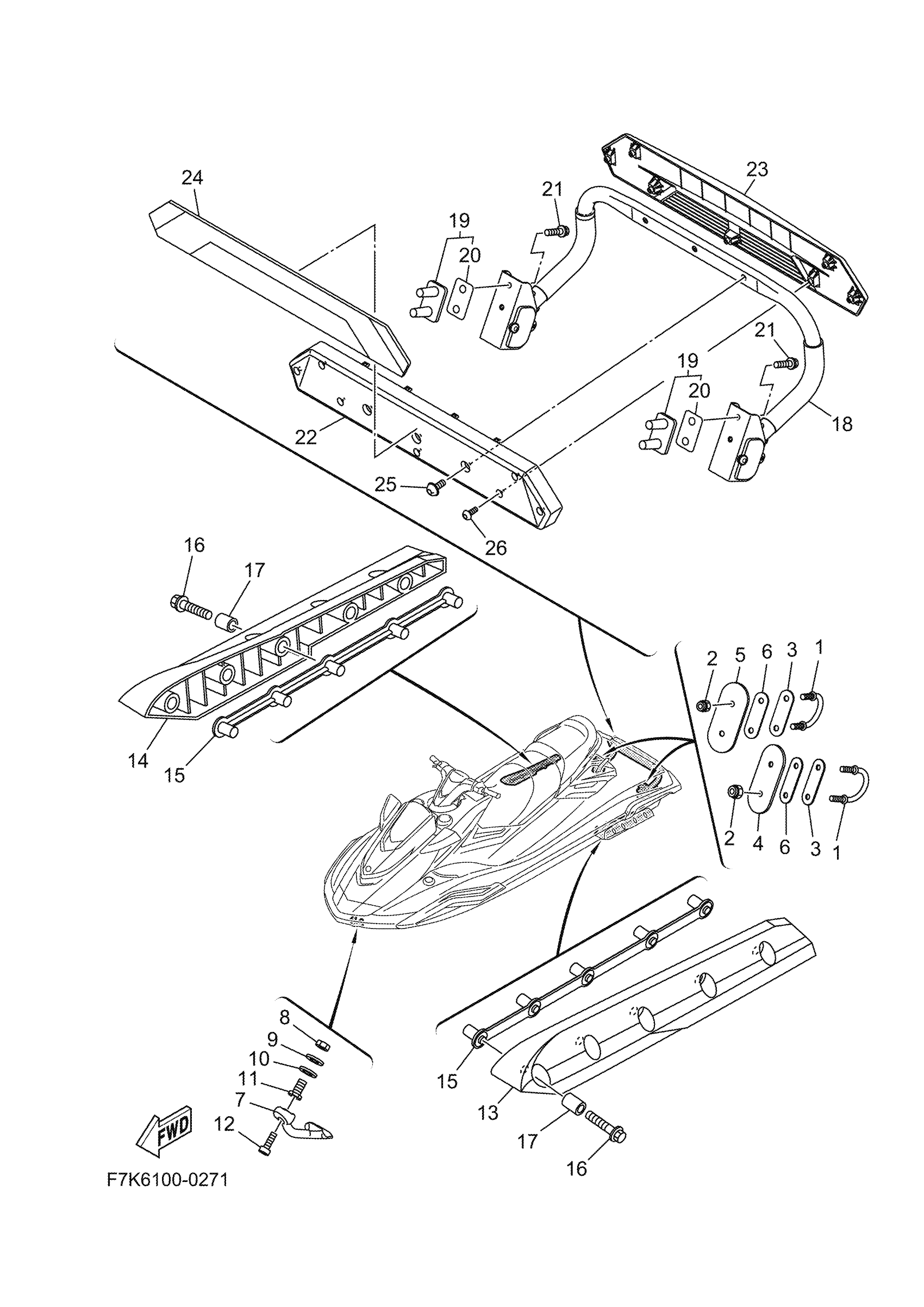

Yamaha FX1900CC (HO) F7KA 2026 HULL & DECK 2 Diagram

#

Description
Price

1

STERN EYE

F2N-U1628-10-00

$10.59

2

NUT, NYLON (6J8)

95780-08300-00

$10.55

3

PLATE A

GP7-U4953-10-00

$3.52

4

PLATE A

F7M-U4953-20-00

Unavailable

5

PLATE A

F7M-U4953-20-00

Unavailable

6

PACKING

F1B-U1653-03-00

$1.88

7

BOW EYE 1

F1K-61624-00-00

$42.60

8

NUT.HEX.(COARS)

99780-12600-00

$2.80

9

YBS66-12 WASHER,PLAIN

92990-12200-00

$5.75

10

WASHER

F0X-61637-00-00

$1.29

11

NUT

F0X-61652-01-00

$11.84

12

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.18

13

STABILIZER LH

F1S-U883N-01-00

$33.32

14

STABILIZER RH

F1S-U883P-01-00

$33.32

15

BRACKET,STABILIZER

F1X-U883T-02-00

$43.92

16

BOLT,WASHER BASED

90105-088F9-00

$2.91

17

SPACER

F2N-U8169-10-00

$1.15

18

LADDER, STEP ASSY

F3X-U278A-00-00

$196.36

19

BRACKET, LADDER LH

F2S-U278F-01-00

Unavailable

20

PACKING, BRKT. 1

F2S-U278H-01-00

Unavailable

21

BOLT, WITH WASHER

90119-08844-00

$1.29

22

STEP

F3X-U882F-02-00

$26.54

23

PLATE, STEP 1

F3X-U884R-01-00

$22.25

24

COVER STEP 1

F3X-U4994-20-00

$37.86

25

BOLT, WITH WASHER

90119-06830-00

Unavailable

26

SCREW

F2S-U13C1-00-00

$2.36
