- FX1900CC (HO) F7KA 2026
GUNWALE & MAT

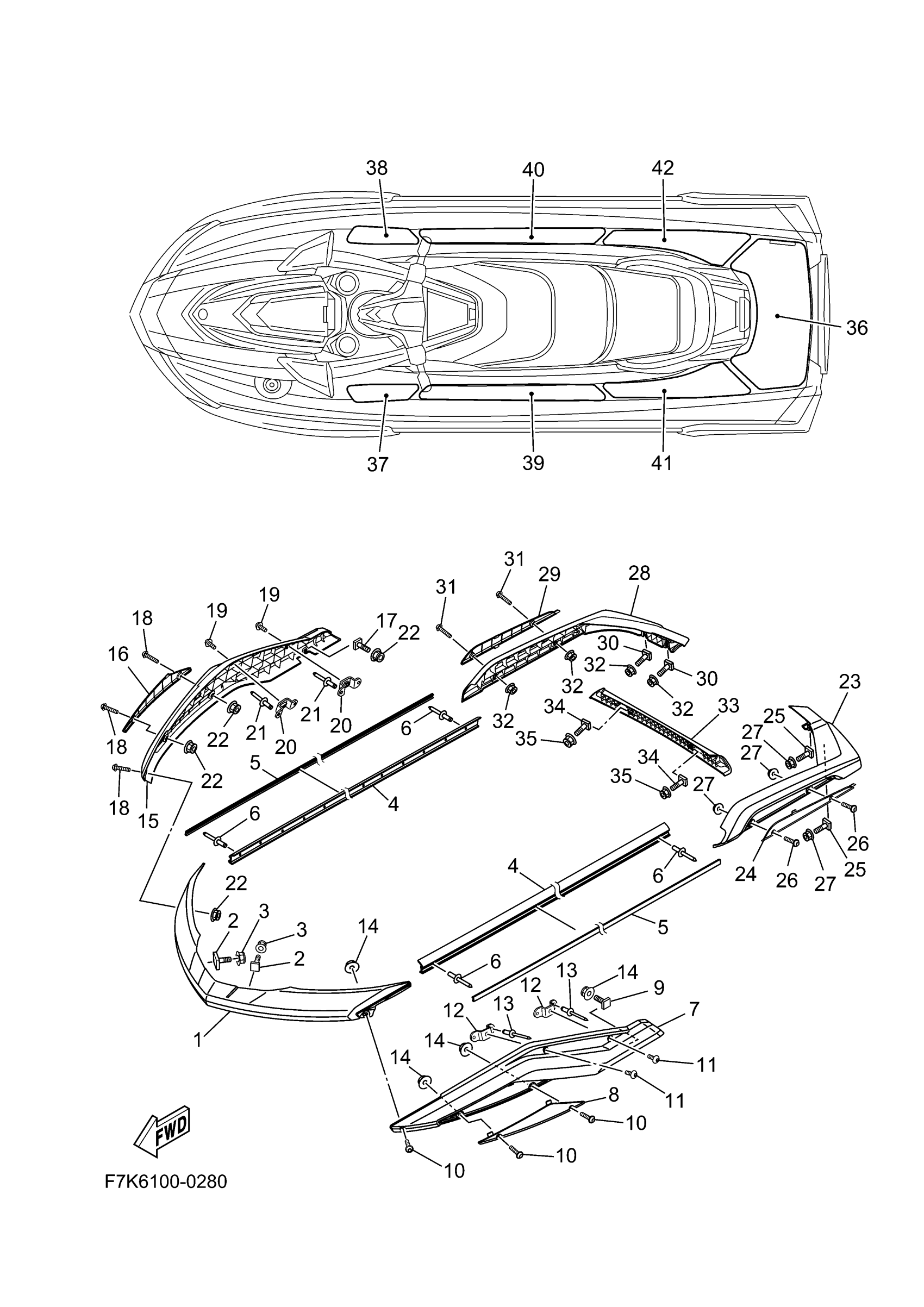

Yamaha FX1900CC (HO) F7KA 2026 GUNWALE & MAT Diagram
#
1
GUNWALE, BOW
F3X-U2511-01-00
Unavailable
2
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
3
NUT, LOCK
F2N-U142L-00-00
Unavailable
4
GUNWALE, SIDE
F3X-U2512-00-00
Unavailable
5
INNER,GUNWALE
F3X-U2519-90-00
Unavailable
6
RIVET
F7K-U1454-00-00
Unavailable
7
JOINT, GUNWALE LH
F3X-U252E-00-00
Unavailable
8
GUNWALL INSIDE
F3X-U2514-J1-00
Unavailable
9
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
10
SCREW
F3X-U7823-12-00
Unavailable
11
SCREW
F7K-U8198-00-00
$2.99
12
BRACKET
F3X-U4949-00-00
Unavailable
13
RIVET, BLIND
90267-489U6-00
Unavailable
14
NUT, LOCK
F2N-U142L-00-00
Unavailable
15
JOINT, GUNWALE RH
F3X-U252F-00-00
Unavailable
16
GUNWALL INSIDE
F3X-U2514-K1-00
Unavailable
17
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
18
SCREW
F3X-U7823-12-00
Unavailable
19
SCREW
F7K-U8198-00-00
$2.99
20
BRACKET
F3X-U4949-00-00
Unavailable
21
RIVET, BLIND
90267-489U6-00
Unavailable
22
NUT, LOCK
F2N-U142L-00-00
Unavailable
23
GUNWALE, STERN 1
F3X-U251D-00-00
Unavailable
24
INNER GUNWALE, AFT
F3X-U255C-J1-00
Unavailable
25
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
26
SCREW
F3X-U7823-12-00
Unavailable
27
NUT, LOCK
F2N-U142L-00-00
Unavailable
28
GUNWALE, STERN 2
F3X-U251E-00-00
Unavailable
29
INNER GUNWALE, AFT
F3X-U255C-K1-00
Unavailable
30
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
31
SCREW
F3X-U7823-12-00
Unavailable
32
NUT, LOCK
F2N-U142L-00-00
Unavailable
33
COVER, GUNWALE 1
F3X-U252C-01-00
Unavailable
34
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
35
NUT, LOCK
F2N-U142L-00-00
Unavailable
36
MAT, UPPER
F3X-U3581-20-00
Unavailable
37
MAT, STEP 1
F3X-U351H-20-00
Unavailable
38
MAT, STEP 2
F3X-U351J-20-00
Unavailable
39
MAT, STEP 3
F3X-U351K-20-00
Unavailable
40
MAT, STEP 4
F3X-U351M-20-00
Unavailable
41
MAT, STEP 5
F3X-U351N-20-00
Unavailable
42
MAT, STEP 6
F3X-U351P-20-00
Unavailable
