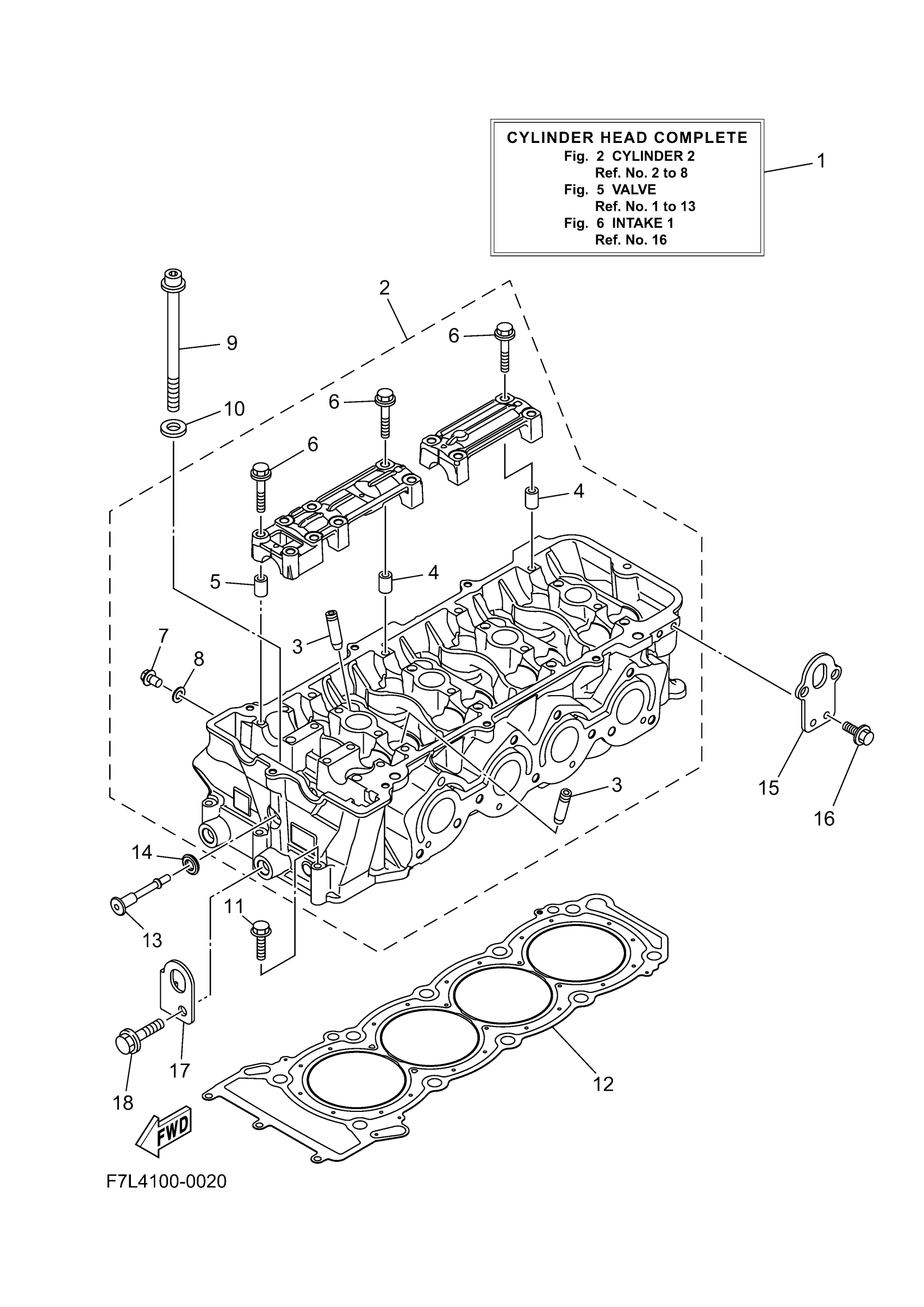

Yamaha FX1900CC (HO) F7KA 2026 CYLINDER 2 Diagram

#

Description
Price

1

CYLINDER HEAD COMPLETE

6LE-W009A-01-00

Unavailable

2

CYLINDER HEAD ASSY

6LE-11102-00-00

$1,743.92

3

. GUIDE, VALVE 1

6S5-11133-10-00

$43.67

4

. PIN, DOWEL

91809-16002-00

$2.27

5

. PIN, DOWEL

91809-16002-00

$2.27

6

. BOLT/WASHER-CAM CAPS

90119-07235-00

$3.36

7

BOLT, FLANGE DEEP RECESS

95E34-08012-00

$0.91

8

GASKET

90430-08119-00

Unavailable

9

BOLT

6S5-12228-01-00

$18.93

10

WASHER

6HL-12456-00-00

$2.27

11

BOLT, WITH WASHER

97513-06555-00

$2.80

12

GASKET, CYLINDER H

6LE-11181-00-00

$242.41

13

BOLT

90109-06293-00

$12.20

14

RUBBER, MOUNT 1

5VY-1111G-00-00

$9.99

15

HANGER, ENGINE 2

6BH-1111E-00-00

$23.47

16

BOLT, WITH WASHER

90119-06078-00

$2.27

17

HANGER, ENGINE

6BH-11119-00-00

$23.47

18

BOLT, WITH WASHER

97513-10525-00

$2.80
