Description

Price

1

COVER, CYLINDER HE

6LE-11191-00-00

$412.99

2

BOLT, FLANGE

90105-06028-00

Unavailable

3

GASKET, HEAD COVER

6LE-11193-00-00

$89.99

4

DAMPER, IGNITION COIL

68V-82317-01-00

Unavailable

5

. COLLAR

90387-06119-00

Unavailable

6

BOLT, FLANGE

95814-06025-00

Unavailable

7

PLUG, OIL

3Y1-15363-10-00

$18.49

8

O-RING (646)

93210-19123-00

Unavailable

9

BOLT, COVER MOUNTING

6S5-E118E-02-00

$3.99

10

COVER ASSY 1

6LE-1110M-00-00

$166.99

11

. COVER 1

6LE-1111M-01-00

Unavailable

12

COVER 2

6LE-1111N-00-00

$60.99

13

. GROMMET, ANODE

6LE-11328-00-00

Unavailable

14

. SCREW

90149-05050-00

Unavailable

15

EMBLEM

6LE-1111K-00-00

Unavailable

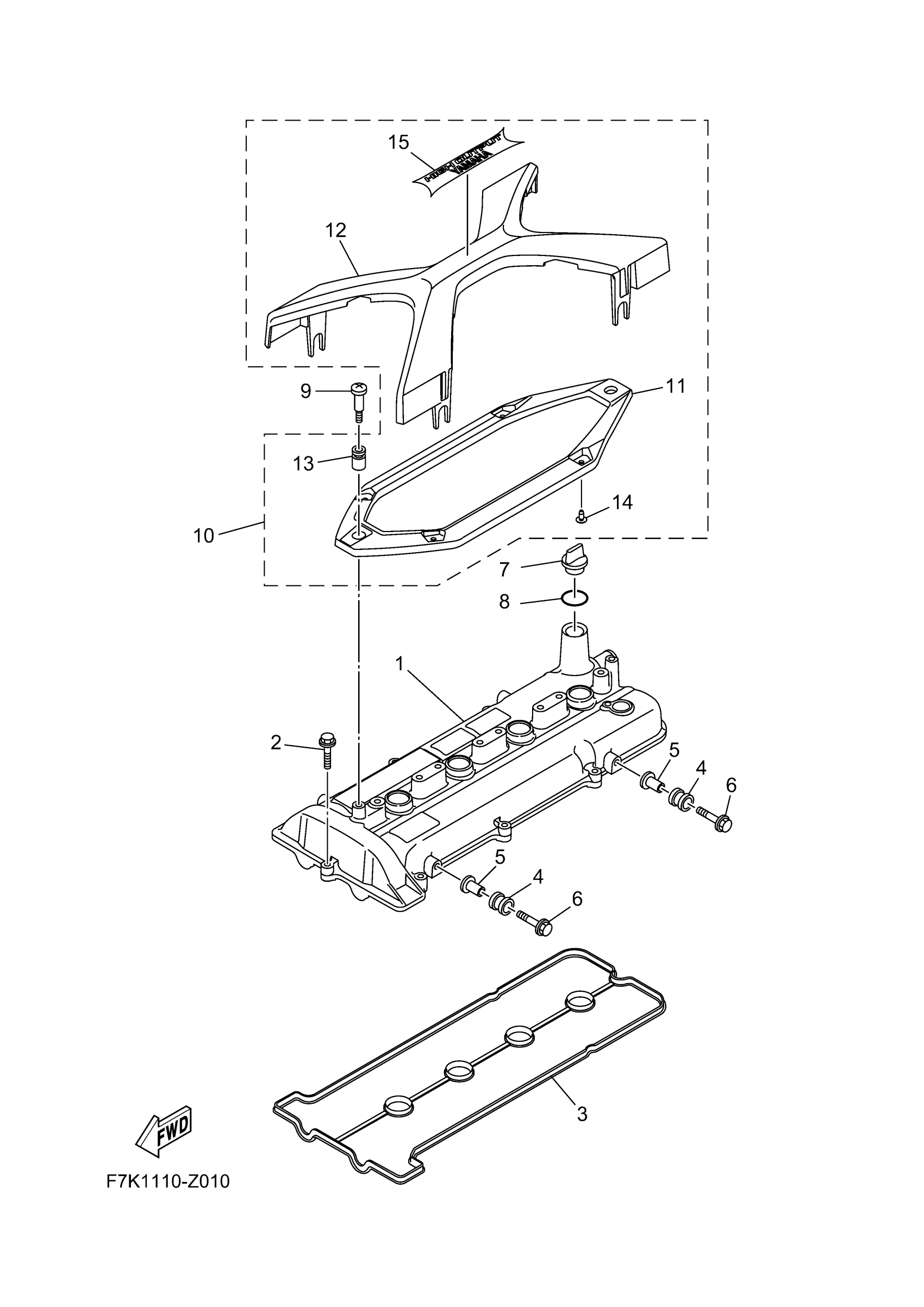

Yamaha FX1900CC (HO) F7KA 2026 CYLINDER 1 Diagram

COVER, CYLINDER HE

BOLT, FLANGE

GASKET, HEAD COVER

DAMPER, IGNITION COIL

. COLLAR

BOLT, FLANGE

PLUG, OIL

O-RING (646)

BOLT, COVER MOUNTING

COVER ASSY 1

. COVER 1

COVER 2

. GROMMET, ANODE

. SCREW

EMBLEM
