- FX1900CB (HO) F7K6 2025
REPAIR KIT 1

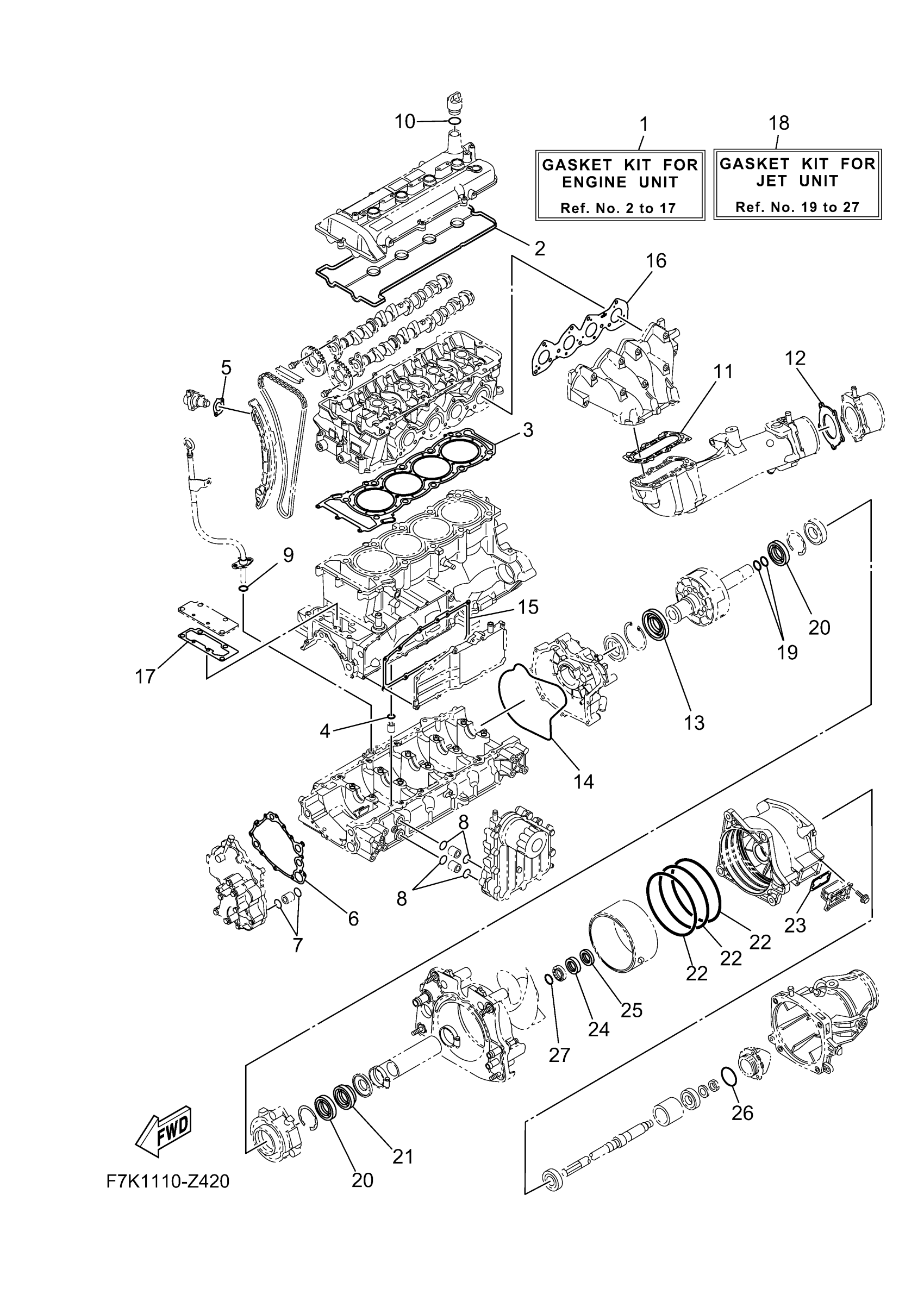

Yamaha FX1900CB (HO) F7K6 2025 REPAIR KIT 1 Diagram
#
Description
Price
1
GASKET KIT FOR ENG
6LE-W0001-00-00
$575.99
2
GASKET, HEAD COVER
6LE-11193-00-00
$89.99
3
GASKET, CYLINDER H
6LE-11181-00-00
$244.99
4
O-RING (4G0)
93210-11453-00
$7.49
5
GASKET, TENSIONER
6LE-12213-00-00
$8.99
6
. GASKET
6S5-13563-00-00
Unavailable
7
O-RING (26H)
93210-21631-00
$7.49
8
O-RING (1L9)
93210-18322-00
$5.60
9
. O-RING
93210-12016-00
Unavailable
10
O-RING (646)
93210-19123-00
Unavailable
11
. GASKET, MUFFLER DAMPER 1
6S5-14739-00-00
Unavailable
12
. GASKET, MUFFLER DAMPER 2
6BH-14749-00-00
Unavailable
13
OIL SEAL
6LE-81167-00-00
$73.99
14
. O-RING
6S5-81168-00-00
Unavailable
15
. GASKET
6BH-13557-00-00
Unavailable
16
GASKET, EXHAUST PI
6LE-14613-00-00
Unavailable
17
. GASKET, COVER
6BH-1131B-00-00
Unavailable
18
GASKET KIT FOR JET
6LE-W0001-20-00
Unavailable
19
O-RING(6U1)
93210-22MF1-00
Unavailable
20
. OIL SEAL
93102-29008-00
Unavailable
21
OIL SEAL
93102-29009-00
Unavailable
22
O-RING
93211-65801-00
Unavailable
23
. O-RING
66V-42414-00-00
Unavailable
24
. OIL SEAL
93102-31009-00
Unavailable
25
. OIL SEAL
93101-31001-00
Unavailable
26
O-RING
93210-54010-00
Unavailable
27
O-RING (30X)
93210-30611-00
Unavailable
