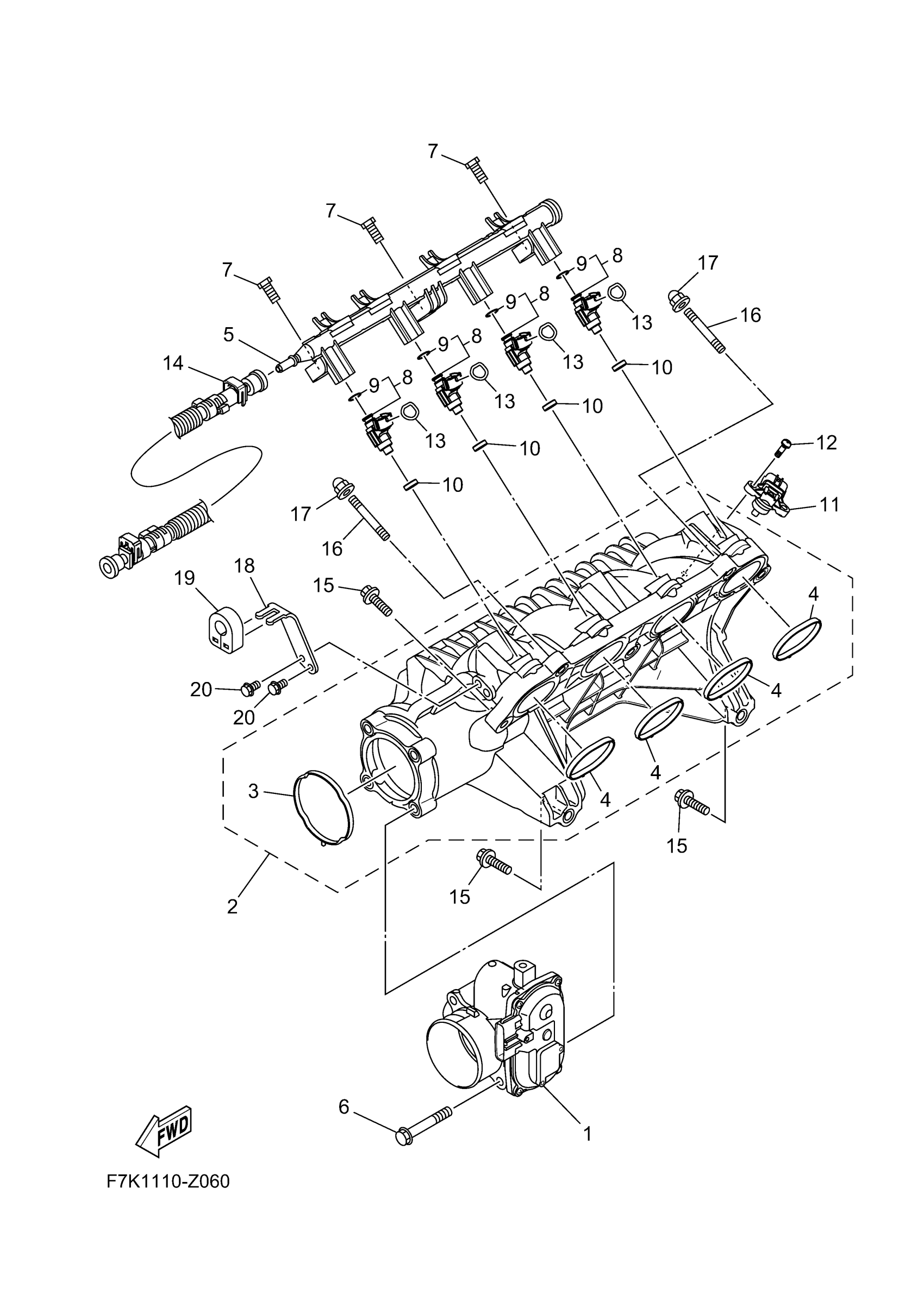

Yamaha FX1900CB (HO) F7K6 2025 INTAKE 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

6LE-13750-01-00

Unavailable

2

MANIFOLD, INTAKE 1

6LE-13641-00-00

Unavailable

3

GASKET, INSULATING

6LE-14156-00-00

$75.74

4

GASKET

6LE-14126-00-00

$31.80

5

DELIVERY PIPE

6LE-12880-00-00

$272.71

6

BOLT, FLANGE

90105-08243-00

$1.82

7

BOLT

6CS-14446-00-00

$9.08

8

INJECTOR

6S5-13761-10-00

$175.86

9

. O-RING

68V-1416A-00-00

$10.18

10

. GASKET, MANIFOLD

8FP-13556-10-00

$5.55

11

SENSOR ASSY

6LE-83688-00-00

$2.95

12

SCREW 3

6D3-81147-00-00

$4.55

13

O-RING

93210-13003-00

$1.80

14

FUEL HOSE ASSY

6AN-2450B-10-00

$122.71

15

BOLT, WITH WASHER

97513-08535-00

$1.74

16

BOLT, STUD

90116-08032-00

$3.33

17

NUT, CROWN(4BR)

90176-08080-00

Unavailable

18

PLATE, STAY

6LE-14572-00-00

Unavailable

19

GROMMET

6CS-14445-01-00

$5.45

20

BOLT, FLANGE D/R (

95E33-06012-00

Unavailable
