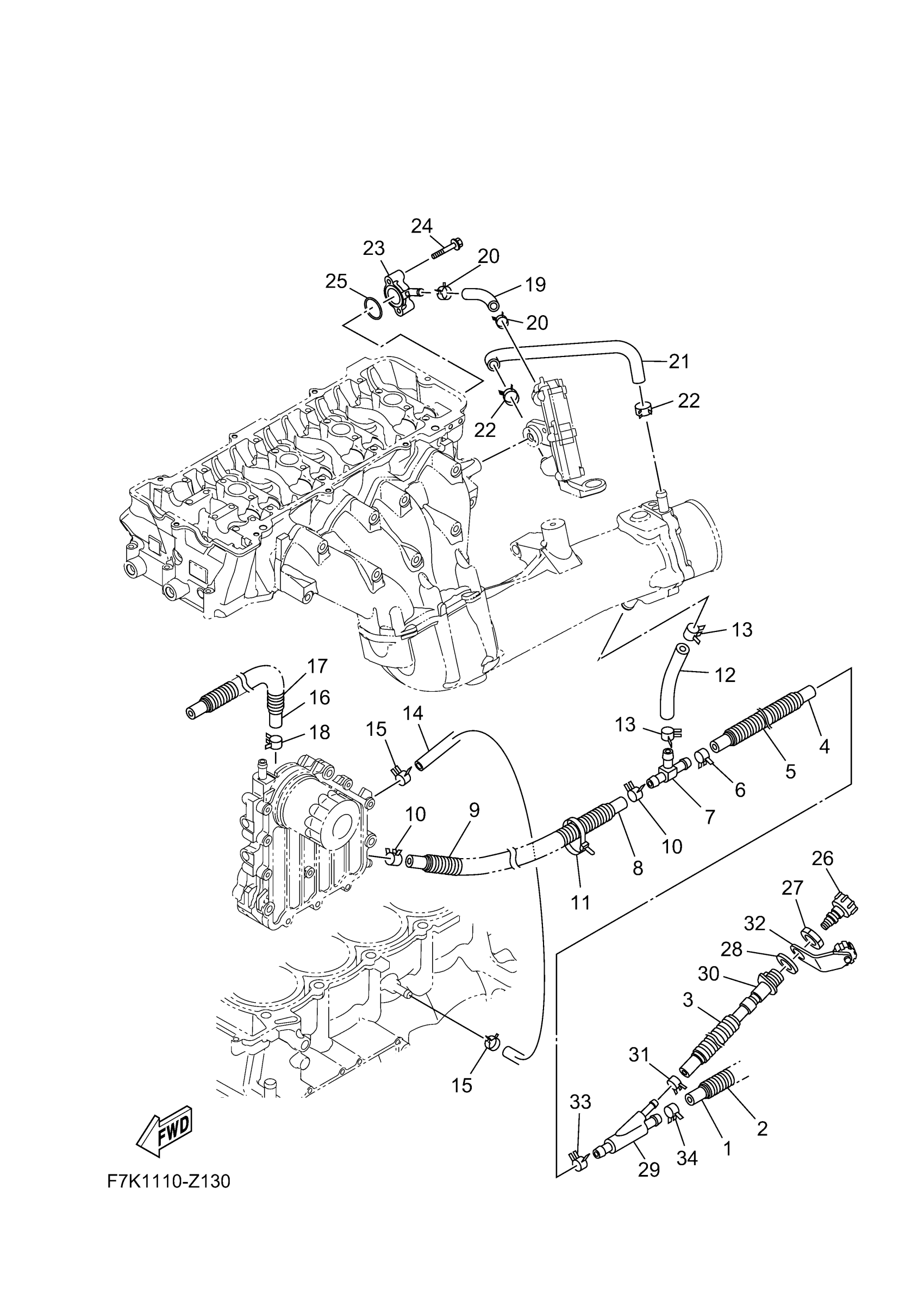

Yamaha FX1900CB (HO) F7K6 2025 EXHAUST 2 Diagram

#

Description
Price

1

HOSE

F3X-U1273-00-00

$11.35

2

TUBE

F2T-U773D-20-00

Unavailable

3

TUBE (L485)

90447-19801-00

$3.56

4

HOSE 2

6S5-1243E-01-00

$22.11

5

TUBE

F2T-U773D-00-00

$1.36

6

CLIP

90467-200A3-00

$5.92

7

JOINT, HOSE 3

6BH-12584-00-00

$4.44

8

HOSE (L400)

90445-18012-00

$24.98

9

TUBE (L260)

90447-19005-00

$3.64

10

CLIP

90467-160A0-00

$2.95

11

CLAMP(3XW)

90464-35132-00

$6.77

12

HOSE 6

6S5-12589-01-00

Unavailable

13

CLIP

90467-200A3-00

$5.92

14

HOSE 5

6LE-1244H-00-00

$30.99

15

CLIP

90467-141A3-00

$2.73

16

HOSE 5

6CS-12588-00-00

$27.99

17

TUBE (L760)

90447-19018-00

$9.08

18

CLIP

90467-160A0-00

$2.95

19

HOSE (L100)

90445-16027-00

Unavailable

20

CLIP

90467-141A3-00

$2.73

21

HOSE 1

6LE-12576-00-00

Unavailable

22

CLIP

90467-160A0-00

$2.95

23

COVER 1

6LE-1246A-00-00

Unavailable

24

BOLT, FLANGE

90105-06035-00

$2.27

25

O-RING

93210-30M31-00

$8.11

26

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.08

27

NUT

EU0-61652-00-00

$11.48

28

PACKING

F2S-U7525-01-00

Unavailable

29

JOINT, HOSE 1

60E-12581-00-00

$15.49

30

JOINT ASSY

64T-12580-00-00

$113.62

31

CLIP

90467-150A5-00

$2.64

32

CAP,1

6EY-84385-00-00

$10.36

33

CLIP

90467-200A3-00

$5.92

34

CLIP

90467-200A3-00

$5.92
