2025 Yamaha HO (FX1900CB) Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2025 Yamaha HO (FX1900CB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

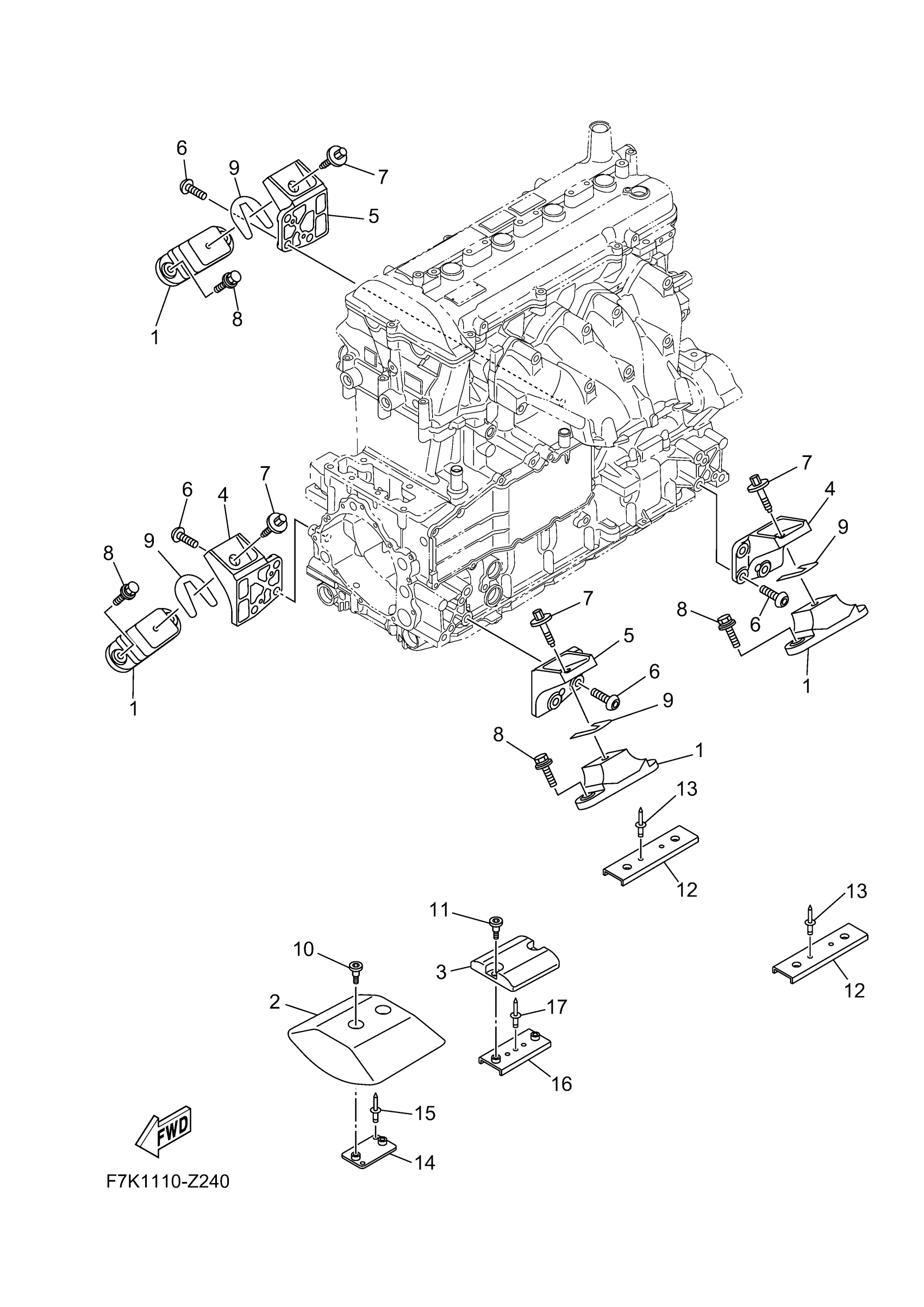

2025 Yamaha HO (FX1900CB) Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOUNT RUBBER

67X-44517-10-00

1

$100.26

In stock

2

STOPPER, UPPER MOUNT

6HL-G4532-00-00

1

$27.68

In stock

3

STOPPER, LOWER MOUNT RUBBER

6BH-G4574-00-00

1

$11.52

In stock

4

BRACKET 1

6BH-41661-00-00

1
Out of stock

5

BRACKET 2

6BH-41662-00-00

1
Out of stock

6

SCREW

90149-10052-00

1

$6.67

In stock

7

BOLT, WITH WASHER

90119-08860-00

1

$4.38

In stock

8

BOLT, WITH WASHER

90119-08829-00

1

$4.38

In stock

9

SHIM (T=0.1)

EU0-67354-A0-00

1

$4.45

In stock

9

SHIM (T=0.3)

EU0-67354-B0-00

1

$5.34

In stock

9

SHIM (T=0.5)

EU0-67354-C0-00

1

$4.45

In stock

9

SHIM (T=1.0)

EU0-67354-D0-00

1

$4.00

In stock

9

SHIM (T=2.0)

EU0-67354-E0-00

1

$4.00

In stock

10

BOLT

90109-06874-00

1

$3.23

In stock

11

BOLT

90109-06875-00

1

$3.38

In stock

12

PLATE

F2S-U732B-00-00

1
Out of stock

13

RIVET, BLIND

90267-489U2-00

1

$1.62

In stock

14

PLATE

F2S-U732B-10-00

1

$5.69

In stock

15

RIVET, BLIND

90267-489U2-00

1

$1.62

In stock

16

PLATE

F2M-U732B-00-00

1

$5.23

In stock

17

RIVET, BLIND

90267-489U2-00

1

$1.62

In stock
