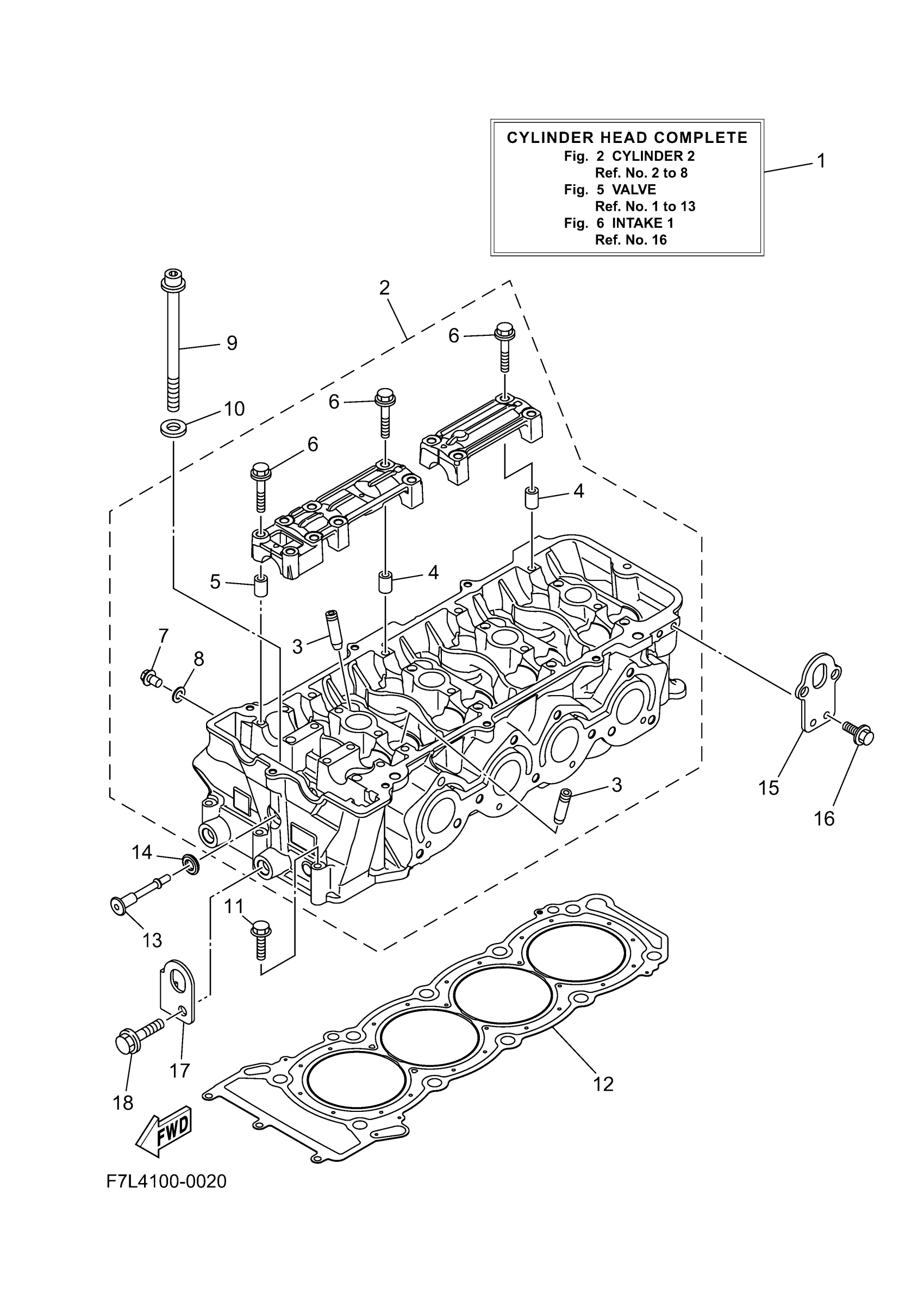

Yamaha FX1900CB (HO) F7K6 2025 CYLINDER 2 Diagram

#

Description
Price

1

CYLINDER HEAD COMP

6LE-W009A-00-00

$1,024.99

2

CYLINDER HEAD ASSY

6LE-11102-00-00

$1,692.63

3

. GUIDE, VALVE 1

6S5-11133-10-00

$44.45

4

. PIN, DOWEL

91809-16002-00

$2.16

5

. PIN, DOWEL

91809-16002-00

$2.16

6

. BOLT/WASHER-CAM CAPS

90119-07235-00

$3.21

7

BOLT, FLANGE DEEP RECESS

95E34-08012-00

$0.88

8

GASKET

90430-08119-00

$5.37

9

BOLT

6S5-12228-01-00

$16.66

10

WASHER

6HL-12456-00-00

$2.13

11

BOLT, WITH WASHER

97513-06555-00

$2.80

12

GASKET, CYLINDER H

6LE-11181-00-00

$235.28

13

BOLT

90109-06293-00

$11.84

14

RUBBER, MOUNT 1

5VY-1111G-00-00

$10.25

15

HANGER, ENGINE 2

6BH-1111E-00-00

$22.78

16

BOLT, WITH WASHER

90119-06078-00

$2.21

17

HANGER, ENGINE

6BH-11119-00-00

$22.78

18

BOLT, WITH WASHER

97513-10525-00

$2.80
