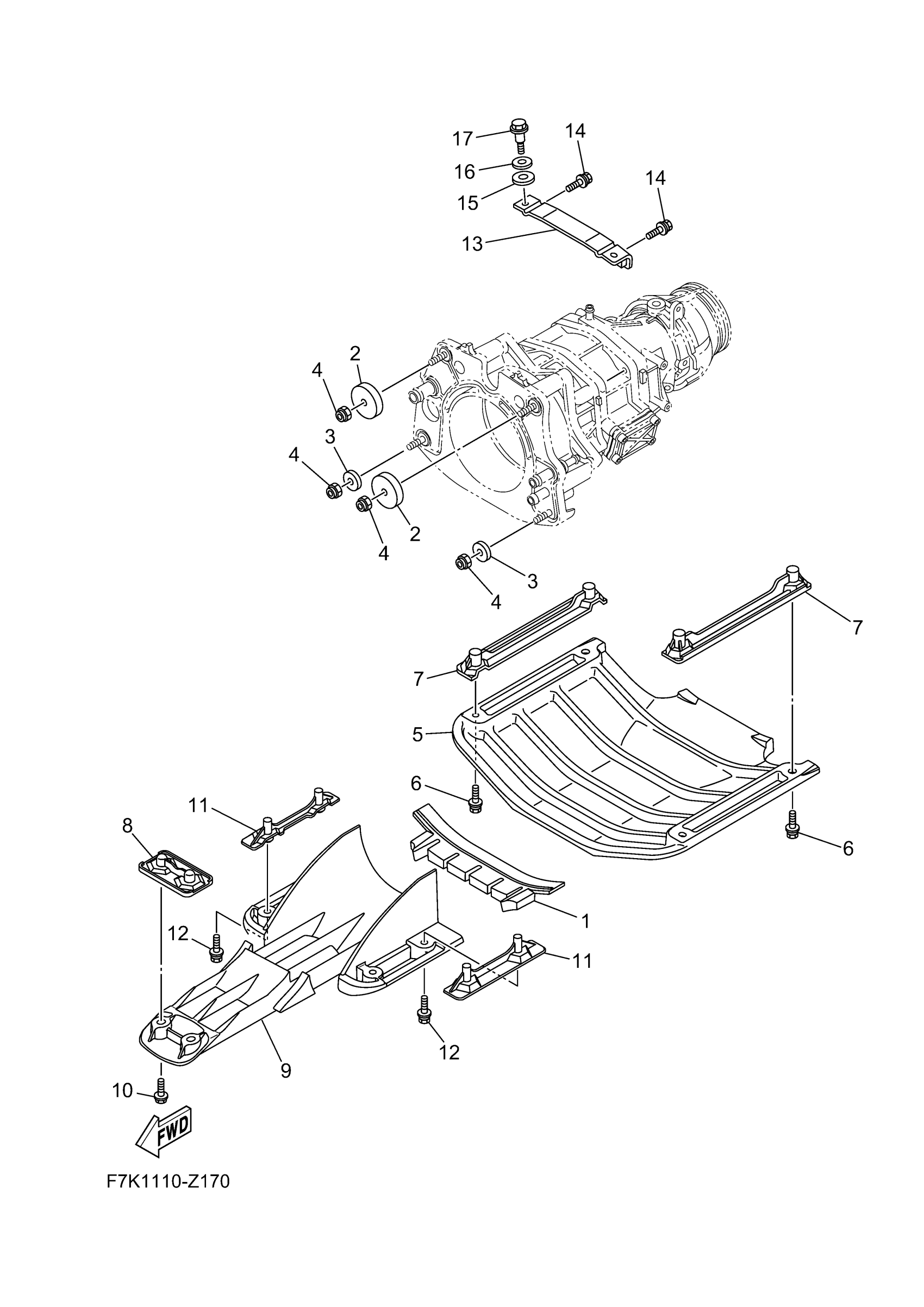

Yamaha FX1900CA (FX HO WAUDIO_ FX HO) F7K3 2024 JET UNIT 4 Diagram

#

Description
Price

1

SPACER

F2S-U72C0-01-00

$15.79

2

WASHER

F1S-U725E-01-00

$8.61

3

WASHER, PLATE

90201-10801-00

$3.65

4

NUT, NYLON

9572R-10300-00

$3.52

5

PLATE 2

F3V-U273B-00-00

$122.04

6

BOLT, WITH WASHER

90119-08829-00

$4.09

7

BRACKET 2

F1B-U8572-01-00

$14.35

8

BRACKET, 3

F2S-U8577-00-00

Unavailable

9

SCREEN, INTAKE

6ET-R1333-00-00

$110.28

10

BOLT, WITH WASHER

90119-08829-00

$4.09

11

BRACKET 1

F1G-U8571-02-00

$15.79

12

BOLT, WITH WASHER

90119-08829-00

$4.09

13

BRACKET

F2C-U7557-01-00

$29.40

14

BOLT, WITH WASHER

90119-08800-00

$4.31

15

GASKET

90430-12002-00

$1.70

16

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

17

BOLT

90109-08043-00

$3.97
