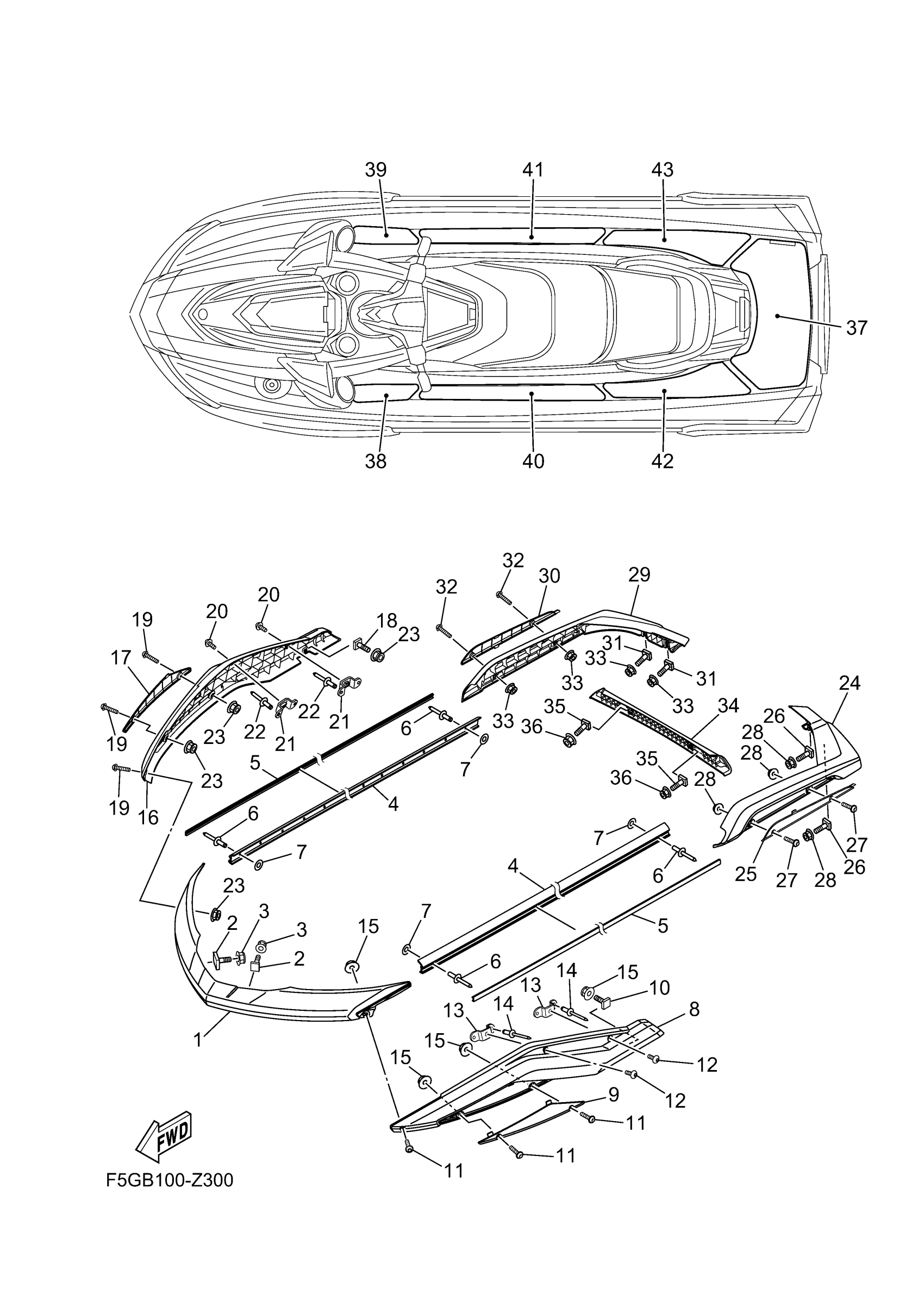

Yamaha FX1900CA (FX HO WAUDIO_ FX HO) F7K3 2024 GUNWALE & MAT Diagram
#
1
GUNWALE, BOW
F3X-U2511-11-00
Unavailable
2
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
3
NUT, LOCK
F2N-U142L-00-00
Unavailable
4
GUNWALE, SIDE
F3X-U2512-10-00
Unavailable
5
INNER,GUNWALE
F3X-U2519-B0-00
$33.99
6
RIVET, BLIND
90267-489U8-00
Unavailable
7
WASHER
9299R-05200-00
Unavailable
8
JOINT, GUNWALE LH
F3X-U252E-10-00
Unavailable
9
GUNWALL INSIDE
F3X-U2514-N1-00
Unavailable
10
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
11
SCREW
F3X-U7823-12-00
Unavailable
12
SCREW
F7K-U8198-00-00
$2.99
13
BRACKET
F3X-U4949-00-00
Unavailable
14
RIVET, BLIND
90267-489U6-00
Unavailable
15
NUT, LOCK
F2N-U142L-00-00
Unavailable
16
JOINT, GUNWALE RH
F3X-U252F-10-00
Unavailable
17
GUNWALL INSIDE
F3X-U2514-P1-00
Unavailable
18
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
19
SCREW
F3X-U7823-12-00
Unavailable
20
SCREW
F7K-U8198-00-00
$2.99
21
BRACKET
F3X-U4949-00-00
Unavailable
22
RIVET, BLIND
90267-489U6-00
Unavailable
23
NUT, LOCK
F2N-U142L-00-00
Unavailable
24
GUNWALE, STERN 1
F3X-U251D-10-00
Unavailable
25
INNER GUNWALE, AFT
F3X-U255C-N1-00
Unavailable
26
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
27
SCREW
F3X-U7823-12-00
Unavailable
28
NUT, LOCK
F2N-U142L-00-00
Unavailable
29
GUNWALE, STERN 2
F3X-U251E-10-00
Unavailable
30
INNER GUNWALE, AFT
F3X-U255C-P1-00
Unavailable
31
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
32
SCREW
F3X-U7823-12-00
Unavailable
33
NUT, LOCK
F2N-U142L-00-00
Unavailable
34
COVER, GUNWALE 1
F3X-U252C-11-00
Unavailable
35
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
36
NUT, LOCK
F2N-U142L-00-00
Unavailable
37
MAT, UPPER
F3X-U3581-01-00
Unavailable
38
MAT, STEP 1
F3V-U351H-00-00
Unavailable
39
MAT, STEP 2
F3V-U351J-00-00
Unavailable
40
MAT, STEP 3
F3X-U351K-00-00
Unavailable
41
MAT, STEP 4
F3X-U351M-00-00
Unavailable
42
MAT, STEP 5
F3X-U351N-00-00
Unavailable
43
MAT, STEP 6
F3X-U351P-00-00
Unavailable
