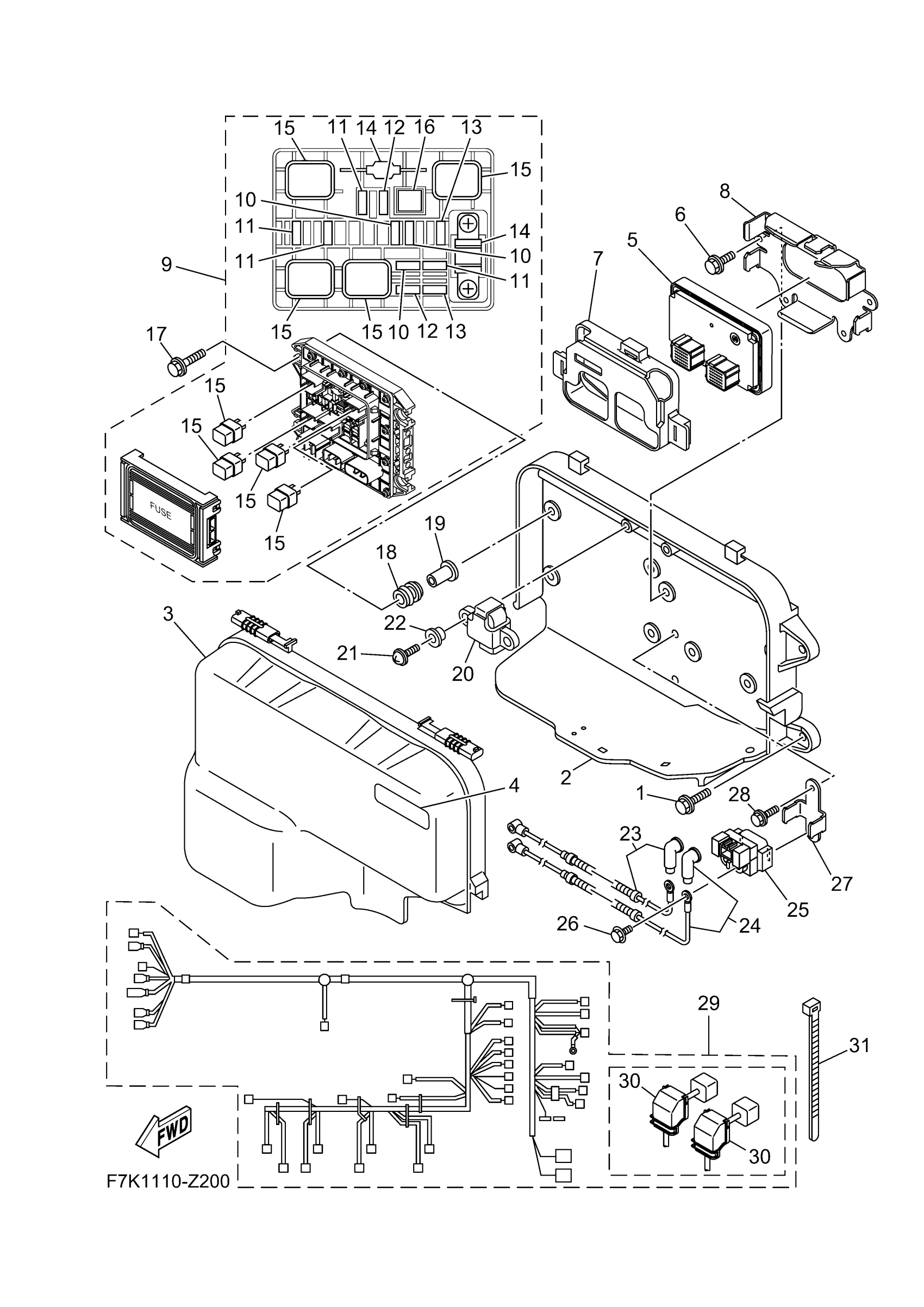

Yamaha FX1900CA (FX HO WAUDIO_ FX HO) F7K3 2024 ELECTRICAL 1 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-089UT-00

$3.29

2

PLATE

6CS-81845-11-00

$85.28

3

COVER

6S5-81942-21-00

Unavailable

4

LABEL, CAUTION 7

60E-83627-00-00

$4.41

5

ENGINE CONTROL UNI

6LE-8591A-00-00

$2,432.34

6

BOLT, FLANGE

95814-06012-00

$2.13

7

GROMMET, ECU

6EY-8591S-00-00

$18.99

8

BRACKET

6ET-81948-00-00

$26.46

9

FUSE BOX ASSY

6EX-82170-02-00

$195.31

10

. FUSE (3A)

67F-82151-30-00

$4.69

11

. FUSE (10A)

67F-82151-40-00

$6.40

12

FUSE

5JJ-82151-20-00

$5.98

13

FUSE

5JJ-82151-60-00

$5.98

14

. FUSE (50A)

6EX-82151-00-00

$3.03

15

. RELAY ASSY

6EX-8195A-00-00

$15.95

16

. PULLER, FUSE

6EX-2812A-00-00

$1.32

17

BOLT, WITH WASHER

90119-06311-00

$1.61

18

DAMPER, IGNITION C

6A0-82317-01-00

$6.05

19

. COLLAR

90387-06119-00

$3.96

20

SENSOR, LEAN ANGLE

6ET-82576-00-00

$51.29

21

SCREW, TAPPING

97780-60025-00

$5.29

22

COLLAR

90387-06M05-00

$6.83

23

WIRE, PLUS LEAD

6JP-82115-00-00

$47.04

24

WIRE, LEAD

6CS-82117-00-00

$61.78

25

STARTER RELAY ASSY (2768102-A)

1B7-81940-00-00

Unavailable

26

BOLT, HEXAGON W/W DEEP RECESS

97E95-06612-00

$1.27

27

STAY, RELAY

6CS-81953-00-00

$4.55

28

BOLT, FLANGE

95814-06012-00

$2.13

29

WIRE HARNESS ASSY 1

6LE-8259L-02-00

$1,338.22

30

. COVER, CONNECTOR

6EM-82599-00-00

$6.36

31

CLAMP

90465-14M66-00

Unavailable
