Description

Price

1

CYLINDER HEAD COMP

6LE-W009A-00-00

$2,768.99

2

CYLINDER HEAD ASSY

6LE-11102-00-00

$1,734.99

3

. GUIDE, VALVE 1

6S5-11133-10-00

Unavailable

4

. PIN, DOWEL

91809-16002-00

Unavailable

5

. PIN, DOWEL

91809-16002-00

Unavailable

6

. BOLT/WASHER-CAM CAPS

90119-07235-00

Unavailable

7

BOLT, FLANGE DEEP RECESS

95E34-08012-00

$1.99

8

GASKET

90430-08119-00

$6.62

9

BOLT

6S5-12228-01-00

Unavailable

10

WASHER

6HL-12456-00-00

Unavailable

11

BOLT, WITH WASHER

97513-06555-00

Unavailable

12

GASKET, CYLINDER H

6LE-11181-00-00

$244.99

13

BOLT

90109-06293-00

$13.99

14

RUBBER, MOUNT 1

5VY-1111G-00-00

$12.99

15

HANGER, ENGINE 2

6BH-1111E-00-00

Unavailable

16

BOLT, WITH WASHER

90119-06078-00

Unavailable

17

HANGER, ENGINE

6BH-11119-00-00

Unavailable

18

BOLT, WITH WASHER

97513-10525-00

Unavailable

19

THERMOSTAT

6D3-12411-00-00

Unavailable

20

COVER, THERMOSTAT

6BH-12413-00-00

Unavailable

21

BOLT, FLANGE

90105-06035-00

Unavailable

22

HOSE 3

6S5-12578-00-00

Unavailable

23

TUBE (L850)

90447-28008-00

Unavailable

24

CLIP

90467-240A0-00

Unavailable

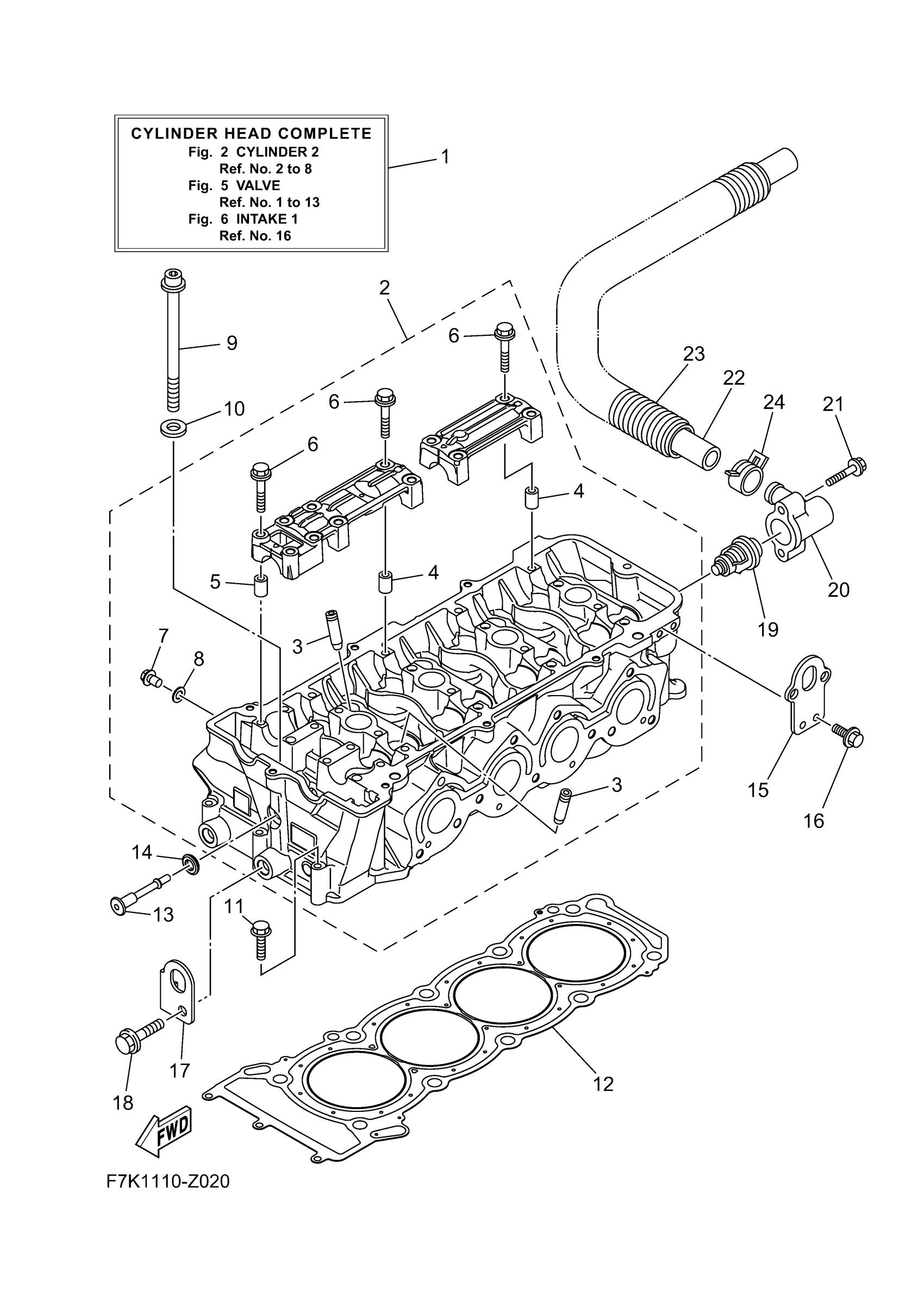

Yamaha FX1900CA (FX HO WAUDIO_ FX HO) F7K3 2024 CYLINDER 2 Diagram
