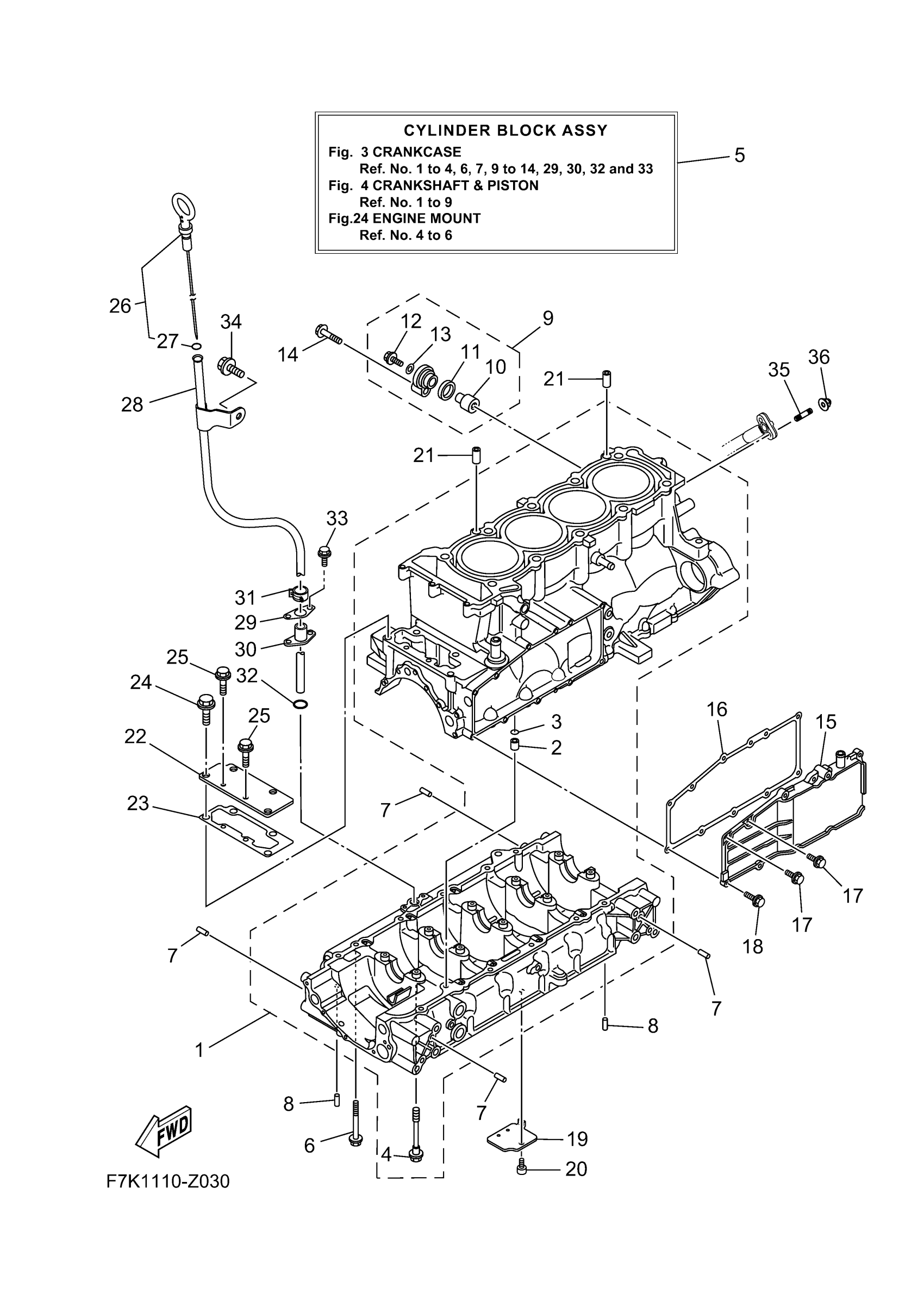

Yamaha FX1900CA (FX HO WAUDIO_ FX HO) F7K3 2024 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

6LE-15109-00-00

$3,117.90

2

PIN, DOWEL(3VD)

99530-10114-00

$2.13

3

O-RING (4G0)

93210-11453-00

$5.47

4

. BOLT, FLANGE

90105-10071-00

$11.01

5

CYLINDER BLOCK ASS

6LE-W009B-00-00

Unavailable

6

BOLT, FLANGE(3JP)

95814-06070-00

$5.75

7

PIN, DOWEL (614)

93606-12019-00

$3.50

8

PIN, DOWEL

93604-10M03-00

$4.17

9

ANODE COVER ASSY

69J-11301-11-00

$18.49

10

. ANODE

68V-11325-02-00

$16.68

11

GROMMET, ANODE

67F-11328-01-00

$3.66

12

BOLT (689)

90105-06M07-00

$1.82

13

. GASKET

90430-06M03-00

$2.85

14

BOLT, HEXAGON W/W DEEP RECESS

97E95-08540-00

$1.94

15

COVER

6S5-1131M-10-8P

$140.28

16

. GASKET

6BH-13557-00-00

$28.49

17

BOLT, FLANGE DEEP

95E34-06014-00

Unavailable

18

BOLT, FLANGE DEEP

95E34-06020-00

Unavailable

19

PLATE, BAFFLE LOWER

6S5-13337-10-00

$3.58

20

BOLT,SOCKET

91317-06012-00

Unavailable

21

PIN, DOWEL(3VD)

99530-10114-00

$2.13

22

COVER, JOINT

6BH-1131C-00-00

$14.16

23

. GASKET, COVER

6BH-1131B-00-00

$3.03

24

BOLT, FLANGE(4HM)

95814-08020-00

Unavailable

25

BOLT, FLANGE

95814-06016-00

$1.72

26

PLUG, OIL LEVEL

6ET-15362-00-00

$47.75

27

O-RING (26H)

93210-06632-00

Unavailable

28

PIPE, OIL LEVEL

6LE-8572F-00-00

Unavailable

29

. PLATE

6BH-1319K-00-00

$7.97

30

SPACER

6CS-85516-00-00

$22.97

31

. CLIP

90467-150A1-00

$3.41

32

. O-RING

93210-12016-00

$2.58

33

BOLT

90109-06268-00

$2.80

34

BOLT, WASHER BASED

90105-08021-00

Unavailable

35

BOLT, STUD

90116-06051-00

Unavailable

36

NUT, CROWN (35R)

90176-06047-00

Unavailable
