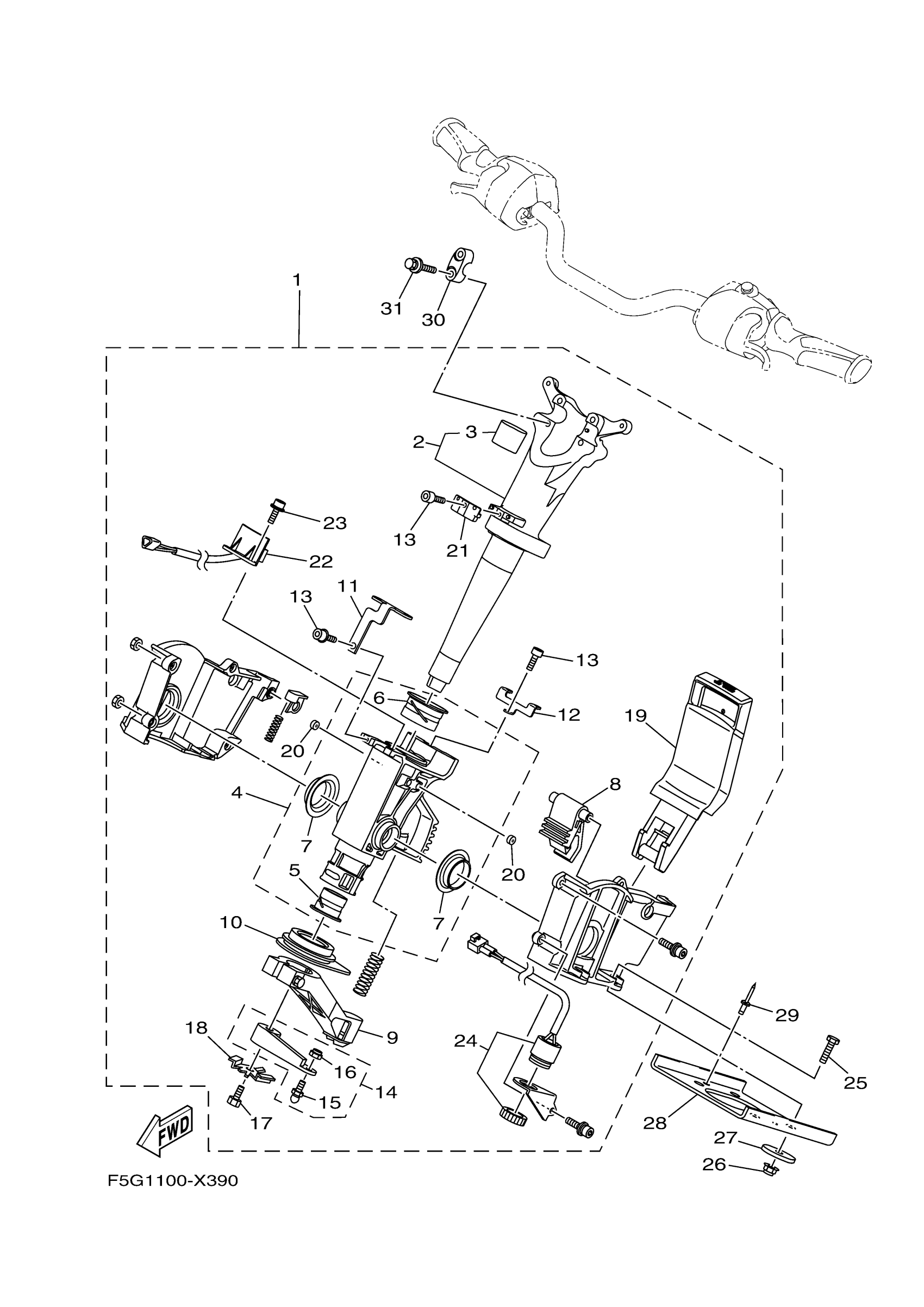

Yamaha FX1900BB (FX HO W AUDIO) F7K5 2025 STEERING 2 Diagram

#

Description
Price

1

STEERING MASTER AS

F5G-61400-01-00

$2,174.23

2

. SHAFT ASSY

F5G-67410-00-00

$553.02

3

.. PIPE, SEAL

F4P-61435-00-00

$16.99

4

. TUBE

F4P-6773D-00-00

$372.71

5

.. BUSH

F1S-6134M-00-00

$10.49

6

. BUSH

F2C-6134M-00-00

$8.14

7

.. BUSH

F1S-6134M-10-00

$10.49

8

. LOCK 1

F1S-61782-00-00

$56.05

9

. CABLE STOPPER ASSY

F1S-6146A-00-00

$130.29

10

. SEAL, RUBBER

F1S-6143C-00-00

$34.49

11

. STAY 1

F5G-65938-00-00

$21.20

12

. STAY 2

F5G-65939-00-00

$19.68

13

SCREW

F4P-613C1-10-00

Unavailable

14

ARM ASSY.

F1S-6153R-02-00

$90.89

15

STUD, JOINT BALL

EU0-61461-02-00

$14.38

16

NUT, SELF-LOCKING

95720-06300-00

$1.82

17

BOLT

F1W-61355-10-00

Unavailable

18

. PLATE, RETAINING

F1W-6142B-00-00

$18.49

19

. LEVER ASSY

F2S-6151M-00-00

$52.99

20

. PLUG

F1W-6358B-00-00

$19.68

21

MAGNET

F2X-6838C-01-00

$26.49

22

SENSOR, MAGNET

F2X-6838B-02-00

$134.83

23

BOLT

F1W-61516-10-00

Unavailable

24

BUZZER

F1S-68341-00-00

$113.62

25

BOLT

90101-08069-00

$4.55

26

NUT, LOCK

F3Y-U142L-00-00

$2.52

27

WASHER

F1W-U725E-00-00

$11.35

28

PLATE, RETAINING

F1X-U1554-00-00

$54.53

29

RIVET, BLIND

90267-489U6-00

$1.37

30

HOLDER, HANDLE UPPER

EU0-23814-32-00

$20.34

31

BOLT, WITH WASHER

90119-089U1-00

$3.23
