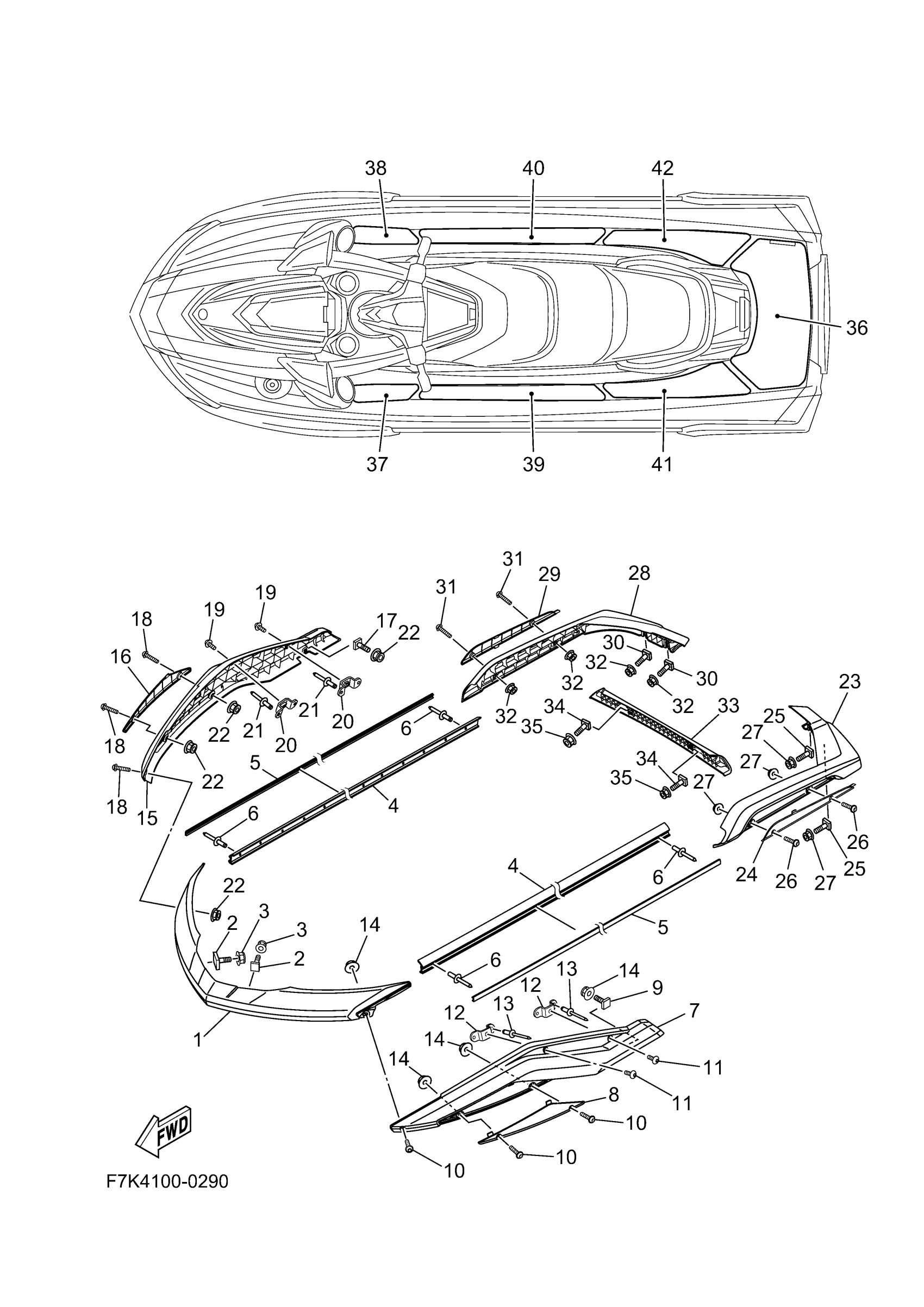

Yamaha FX1900AC (CRUISER HO) F7K8 2026 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F3X-U2511-01-00

Unavailable

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

NUT, LOCK

F2N-U142L-00-00

Unavailable

4

GUNWALE, SIDE

F3X-U2512-00-00

Unavailable

5

INNER,GUNWALE

F3X-U2519-80-00

Unavailable

6

RIVET

F7K-U1454-00-00

Unavailable

7

JOINT, GUNWALE LH

F3X-U252E-00-00

Unavailable

8

GUNWALE INSIDE

F3X-U2514-20-00

Unavailable

9

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

10

SCREW

F3X-U7823-12-00

Unavailable

11

SCREW

F7K-U8198-00-00

$2.99

12

BRACKET

F3X-U4949-00-00

Unavailable

13

RIVET, BLIND

90267-489U6-00

Unavailable

14

NUT, LOCK

F2N-U142L-00-00

Unavailable

15

JOINT, GUNWALE RH

F3X-U252F-00-00

Unavailable

16

GUNWALE INSIDE

F3X-U2514-30-00

Unavailable

17

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

18

SCREW

F3X-U7823-12-00

Unavailable

19

SCREW

F7K-U8198-00-00

$2.99

20

BRACKET

F3X-U4949-00-00

Unavailable

21

RIVET, BLIND

90267-489U6-00

Unavailable

22

NUT, LOCK

F2N-U142L-00-00

Unavailable

23

GUNWALE, STERN 1

F3X-U251D-00-00

Unavailable

24

INNER GUNWALE, AFT

F3X-U255C-20-00

Unavailable

25

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

26

SCREW

F3X-U7823-12-00

Unavailable

27

NUT, LOCK

F2N-U142L-00-00

Unavailable

28

GUNWALE, STERN 2

F3X-U251E-00-00

Unavailable

29

INNER GUNWALE, AFT

F3X-U255C-30-00

Unavailable

30

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

31

SCREW

F3X-U7823-12-00

Unavailable

32

NUT, LOCK

F2N-U142L-00-00

Unavailable

33

COVER, GUNWALE 1

F3X-U252C-01-00

Unavailable

34

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

35

NUT, LOCK

F2N-U142L-00-00

Unavailable

36

MAT, UPPER

F3X-U3581-01-00

Unavailable

37

MAT, STEP 1

F7K-U351H-00-00

Unavailable

38

MAT, STEP 2

F7K-U351J-00-00

Unavailable

39

MAT, STEP 3

F3X-U351K-00-00

Unavailable

40

MAT, STEP 4

F3X-U351M-00-00

Unavailable

41

MAT, STEP 5

F3X-U351N-00-00

Unavailable

42

MAT, STEP 6

F3X-U351P-00-00

Unavailable
