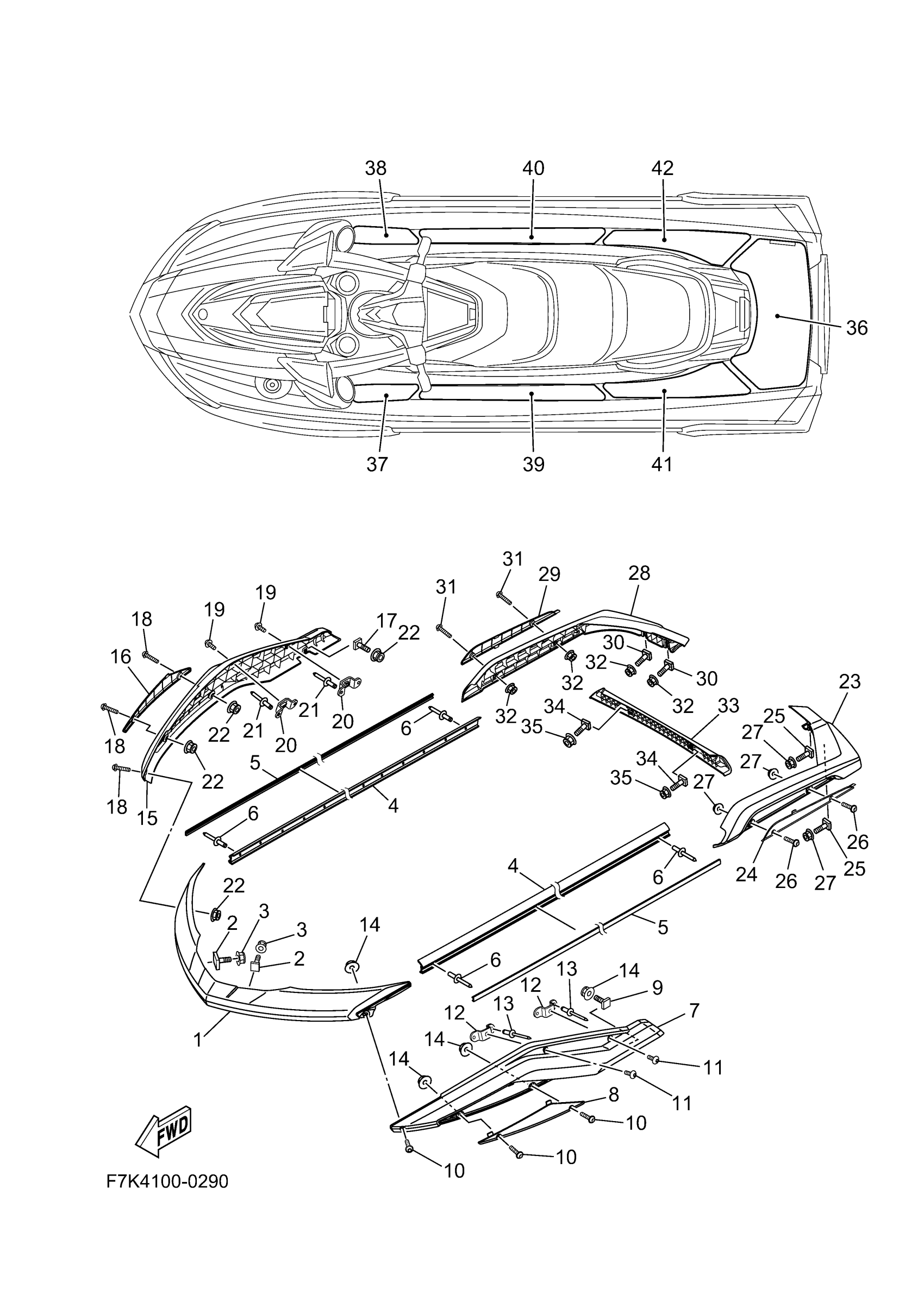

Yamaha FX1900AB (CRUISER HO) F7K4 2025 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F3X-U2511-01-00

$28.77

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

NUT, LOCK

F2N-U142L-00-00

$1.00

4

GUNWALE, SIDE

F3X-U2512-00-00

$25.74

5

INNER,GUNWALE

F3X-U2519-C0-00

Unavailable

5

INNER,GUNWALE

F3X-U2519-E0-00

$36.35

6

RIVET

F7K-U1454-00-00

$4.46

7

JOINT, GUNWALE LH

F3X-U252E-00-00

$28.02

8

GUNWALL INSIDE

F3X-U2514-R0-00

$29.53

8

GUNWALL INSIDE

F3X-U2514-W0-00

$21.20

9

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

10

SCREW

F3X-U7823-12-00

$1.25

11

SCREW

F7K-U8198-00-00

$1.21

12

BRACKET

F3X-U4949-00-00

$2.52

13

RIVET, BLIND

90267-489U6-00

$1.37

14

NUT, LOCK

F2N-U142L-00-00

$1.00

15

JOINT, GUNWALE RH

F3X-U252F-00-00

$28.02

16

GUNWALL INSIDE

F3X-U2514-S0-00

Unavailable

16

GUNWALL INSIDE

F3X-U2514-X0-00

$21.20

17

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

18

SCREW

F3X-U7823-12-00

$1.25

19

SCREW

F7K-U8198-00-00

$1.21

20

BRACKET

F3X-U4949-00-00

$2.52

21

RIVET, BLIND

90267-489U6-00

$1.37

22

NUT, LOCK

F2N-U142L-00-00

$1.00

23

GUNWALE, STERN 1

F3X-U251D-00-00

$24.98

24

INNER GUNWALE, AFT

F3X-U255C-R0-00

Unavailable

24

INNER GUNWALE, AFT

F3X-U255C-W0-00

$21.20

25

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

26

SCREW

F3X-U7823-12-00

$1.25

27

NUT, LOCK

F2N-U142L-00-00

$1.00

28

GUNWALE, STERN 2

F3X-U251E-00-00

$24.98

29

INNER GUNWALE, AFT

F3X-U255C-S0-00

Unavailable

29

INNER GUNWALE, AFT

F3X-U255C-X0-00

$21.20

30

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

31

SCREW

F3X-U7823-12-00

$1.25

32

NUT, LOCK

F2N-U142L-00-00

$1.00

33

COVER, GUNWALE 1

F3X-U252C-01-00

$10.04

34

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

35

NUT, LOCK

F2N-U142L-00-00

$1.00

36

MAT, UPPER

F3X-U3581-01-00

$70.39

37

MAT, STEP 1

F7K-U351H-00-00

Unavailable

38

MAT, STEP 2

F7K-U351J-00-00

$29.53

39

MAT, STEP 3

F3X-U351K-00-00

$45.44

40

MAT, STEP 4

F3X-U351M-00-00

$45.44

41

MAT, STEP 5

F3X-U351N-00-00

$46.95

42

MAT, STEP 6

F3X-U351P-00-00

$46.95
