Partiron

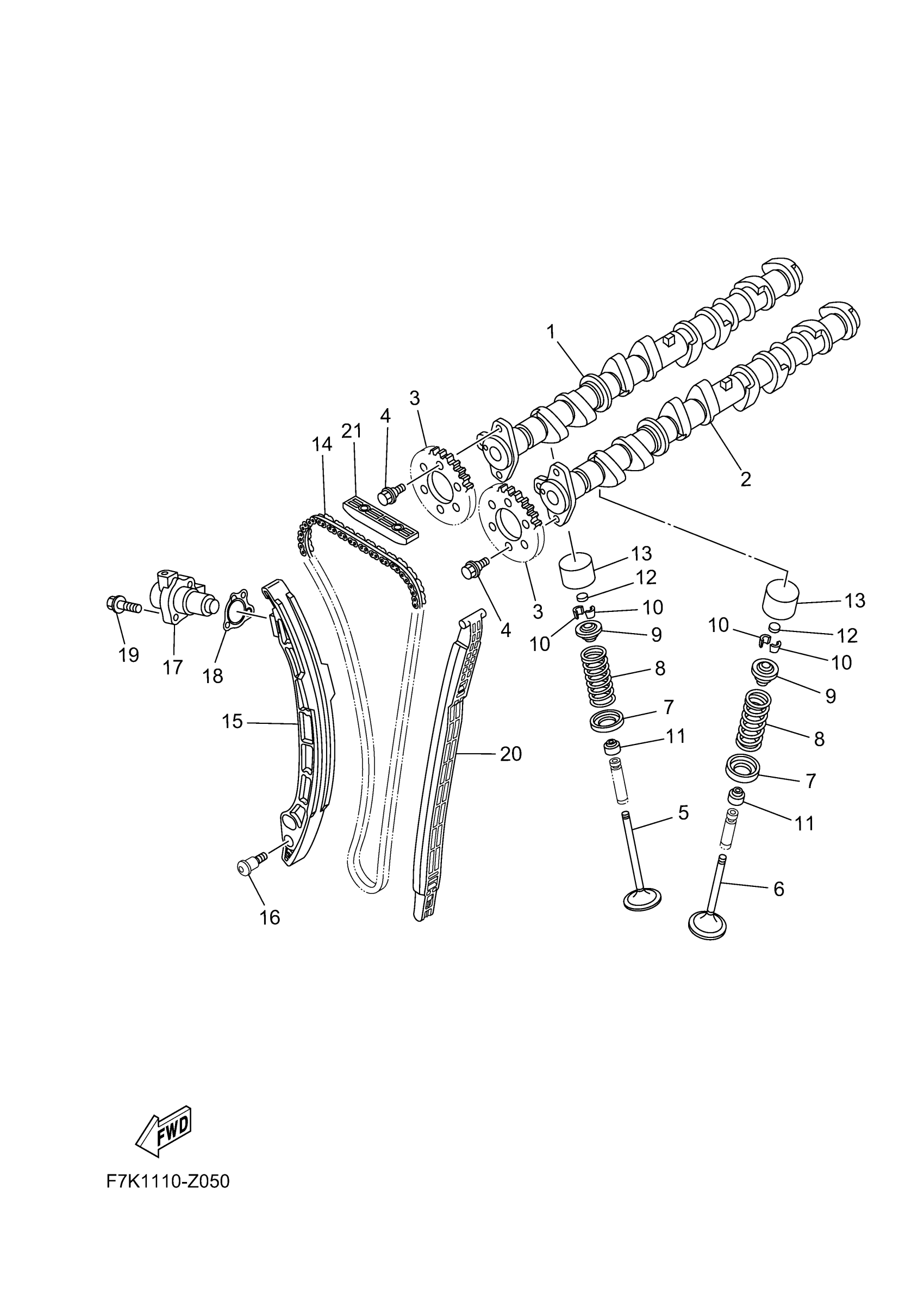

Yamaha FX1900AA (CRUISER HO) F7K1 2024 VALVE Diagram

#

Description
Price

1

CAMSHAFT 1

6LE-12171-00-00

$540.89

2

CAMSHAFT 2

6BH-12181-10-00

$478.77

3

SPROCKET, CAM CHAIN

6ET-12176-00-00

$31.63

4

BOLT, FLANGE

90105-07006-00

$5.84

5

VALVE, INTAKE

6S5-12111-01-00

Unavailable

6

VALVE, EXHAUST

6S5-12121-00-00

$54.53

7

SEAT, VALVE SPRING

6S5-12116-00-00

$2.80

8

SPRING, VALVE INNER

6S5-12113-00-00

$11.48

9

RETAINER, VALVE SPRING

6S5-12117-00-00

$5.91

10

COTTER, VALVE

3LD-12118-00-00

$2.19

11

SEAL, VALVE STEM

51Y-12119-00-00

$4.08

12

PAD, ADJUSTING

3LD-12168-00-00

$14.64

12

PAD, ADJUSTING

3LD-12168-20-00

$10.44

12

PAD, ADJUSTING

3LD-12168-40-00

$15.59

12

PAD, ADJUSTING (1.35)

3LD-12168-60-00

$10.03

12

PAD, ADJUSTING (1.40)

3LD-12168-80-00

$13.94

12

PAD, ADJUSTING (1.45)

3LD-12168-A0-00

$9.41

12

PAD, ADJUSTING (1.50)

3LD-12168-F0-00

$13.23

12

PAD, ADJUSTING (1.55)

3LD-12168-H1-00

$14.23

12

PAD, ADJUSTING (1.60)

3LD-12168-K1-00

$10.56

12

PAD, ADJUSTING (1.65)

3LD-12168-M1-00

$10.89

12

PAD, ADJUSTING

3LD-12168-R1-00

Unavailable

12

PAD, ADJUSTING

3LD-12168-U1-00

Unavailable

12

PAD, ADJUSTING

3LD-12168-W1-00

Unavailable

12

PAD, ADJUSTING

3LD-12168-Y1-00

Unavailable

12

PAD, ADJUSTING

3LD-12169-11-00

Unavailable

12

PAD, ADJUSTING

3LD-12169-31-00

Unavailable

12

PAD, ADJUSTING

3LD-12169-50-00

Unavailable

12

PAD, ADJUSTING

3LD-12169-70-00

Unavailable

12

PAD, ADJUSTING (2.10)

3LD-12169-90-00

$14.14

12

PAD, ADJUSTING (2.15)

3LD-12169-E0-00

$14.06

12

PAD, ADJUSTING

3LD-12169-G0-00

Unavailable

12

PAD, ADJUSTING (2.25)

3LD-12169-J0-00

$10.03

12

PAD, ADJUSTING

3LD-12169-L0-00

Unavailable

13

LIFTER, VALVE

6S5-12153-00-00

$22.19

14

CHAIN

94591-74152-00

Unavailable

15

DAMPER, CHAIN 2

6ET-12252-00-00

$129.88

16

BOLT

90109-06345-00

Unavailable

17

TENSIONER ASSY, CA

6LE-12210-00-00

Unavailable

18

GASKET, TENSIONER

6LE-12213-00-00

Unavailable

19

BOLT,SOCKET

91380-06025-00

Unavailable

20

DAMPER, CHAIN 1

6ET-12251-00-00

$40.75

21

GUIDE, STOPPER 2

6BH-12241-00-00

$11.99
