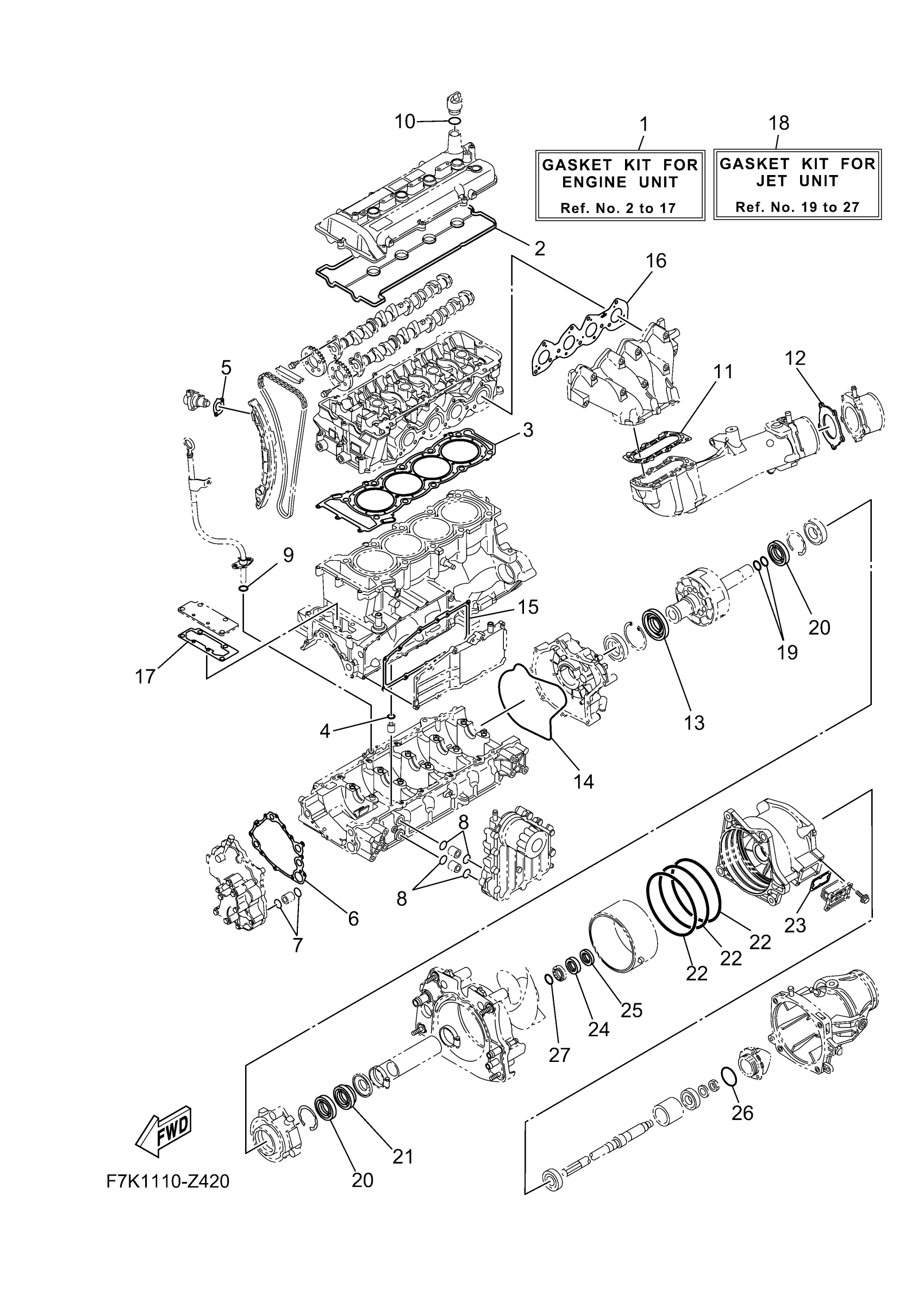

Yamaha FX1900AA (CRUISER HO) F7K1 2024 REPAIR KIT 1 Diagram

#

Description
Price

1

GASKET KIT FOR ENG

6LE-W0001-00-00

Unavailable

2

GASKET, HEAD COVER

6LE-11193-00-00

$89.38

3

GASKET, CYLINDER H

6LE-11181-00-00

$242.41

4

O-RING (4G0)

93210-11453-00

$5.47

5

GASKET, TENSIONER

6LE-12213-00-00

$8.32

6

. GASKET

6S5-13563-00-00

$10.74

7

O-RING (26H)

93210-21631-00

$5.99

8

O-RING (1L9)

93210-18322-00

$4.24

9

. O-RING

93210-12016-00

$2.57

10

O-RING (646)

93210-19123-00

Unavailable

11

. GASKET, MUFFLER DAMPER 1

6S5-14739-00-00

$22.22

12

. GASKET, MUFFLER DAMPER 2

6BH-14749-00-00

$17.77

13

OIL SEAL

6LE-81167-00-00

$54.57

14

. O-RING

6S5-81168-00-00

$32.18

15

. GASKET

6BH-13557-00-00

$27.78

16

GASKET, EXHAUST PI

6LE-14613-00-00

Unavailable

17

. GASKET, COVER

6BH-1131B-00-00

$2.95

18

GASKET KIT FOR JET

6LE-W0001-20-00

Unavailable

19

O-RING(6U1)

93210-22MF1-00

Unavailable

20

. OIL SEAL

93102-29008-00

$22.22

21

OIL SEAL

93102-29009-00

$54.53

22

O-RING

93211-65801-00

$3.43

23

. O-RING

66V-42414-00-00

$5.18

24

. OIL SEAL

93102-31009-00

$80.29

25

. OIL SEAL

93101-31001-00

$32.99

26

O-RING

93210-54010-00

$2.64

27

O-RING (30X)

93210-30611-00

Unavailable
