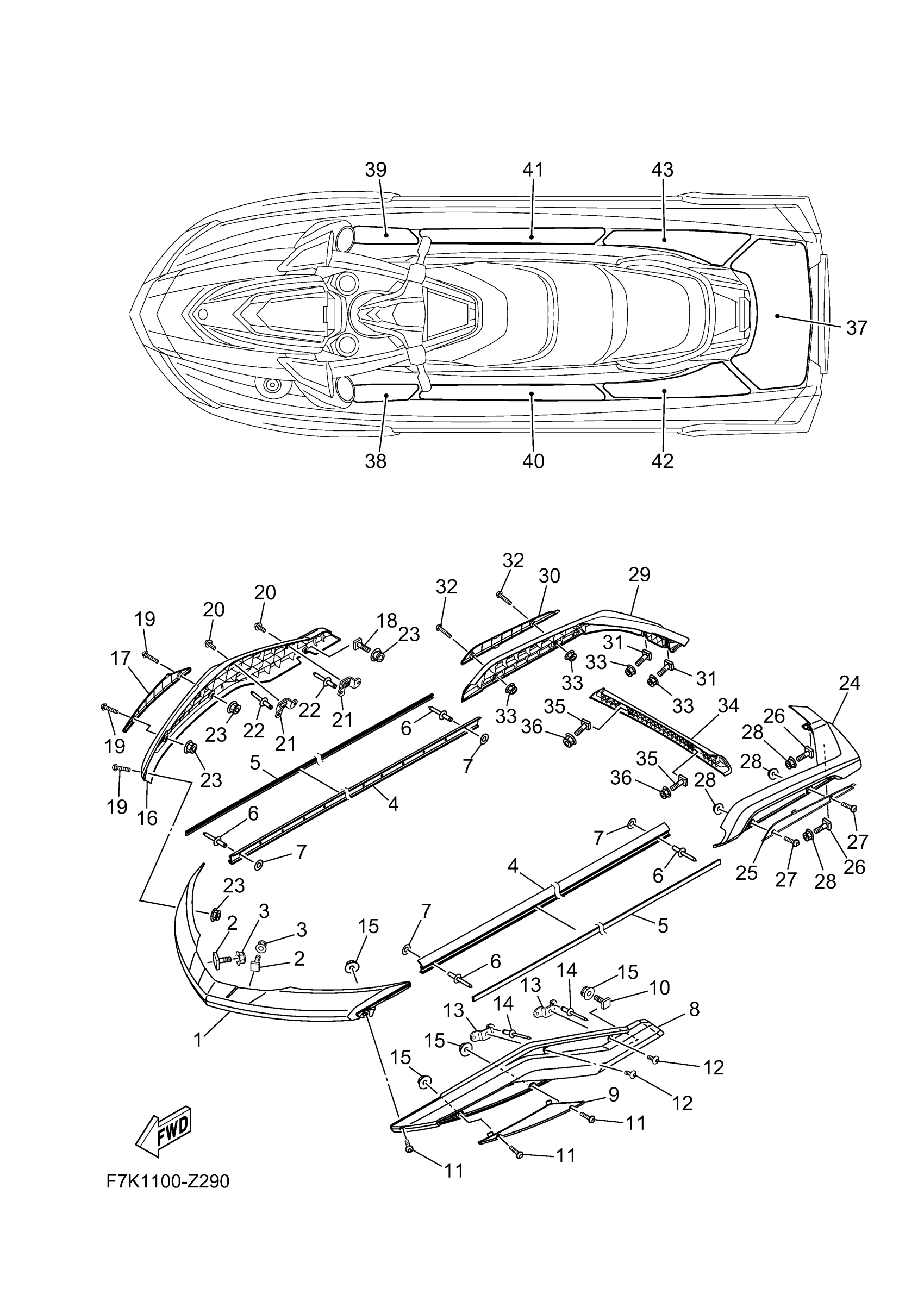

Yamaha FX1900AA (CRUISER HO) F7K1 2024 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F3X-U2511-01-00

$28.34

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

NUT, LOCK

F2N-U142L-00-00

$1.00

4

GUNWALE, SIDE

F3X-U2512-00-00

$25.36

5

INNER,GUNWALE

F3X-U2519-80-00

$30.13

5

INNER,GUNWALE

F3X-U2519-90-00

$64.16

6

RIVET, BLIND

90267-489U8-00

$1.37

7

WASHER

9299R-05200-00

$4.60

8

JOINT, GUNWALE LH

F3X-U252E-00-00

$27.60

9

GUNWALL INSIDE

F3X-U2514-J1-00

$24.61

10

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

11

SCREW

F3X-U7823-12-00

$1.25

12

SCREW

F7K-U8198-00-00

$1.19

13

BRACKET

F3X-U4949-00-00

$2.66

14

RIVET, BLIND

90267-489U6-00

Unavailable

15

NUT, LOCK

F2N-U142L-00-00

$1.00

16

JOINT, GUNWALE RH

F3X-U252F-00-00

$27.60

17

GUNWALL INSIDE

F3X-U2514-K1-00

$24.61

18

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

19

SCREW

F3X-U7823-12-00

$1.25

20

SCREW

F7K-U8198-00-00

$1.19

21

BRACKET

F3X-U4949-00-00

$2.66

22

RIVET, BLIND

90267-489U6-00

Unavailable

23

NUT, LOCK

F2N-U142L-00-00

$1.00

24

GUNWALE, STERN 1

F3X-U251D-00-00

$24.61

25

INNER GUNWALE, AFT

F3X-U255C-J1-00

$29.09

26

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

27

SCREW

F3X-U7823-12-00

$1.25

28

NUT, LOCK

F2N-U142L-00-00

$1.00

29

GUNWALE, STERN 2

F3X-U251E-00-00

$24.61

30

INNER GUNWALE, AFT

F3X-U255C-K1-00

$29.09

31

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

32

SCREW

F3X-U7823-12-00

$1.25

33

NUT, LOCK

F2N-U142L-00-00

$1.00

34

COVER, GUNWALE 1

F3X-U252C-01-00

$10.75

35

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

36

NUT, LOCK

F2N-U142L-00-00

$1.00

37

MAT, UPPER

F3X-U3581-20-00

$97.00

38

MAT, STEP 1

F3V-U351H-20-00

$44.76

39

MAT, STEP 2

F3V-U351J-20-00

$42.63

40

MAT, STEP 3

F3X-U351K-20-00

$53.72

41

MAT, STEP 4

F3X-U351M-20-00

$53.72

42

MAT, STEP 5

F3X-U351N-20-00

$55.80

43

MAT, STEP 6

F3X-U351P-20-00

$58.19
