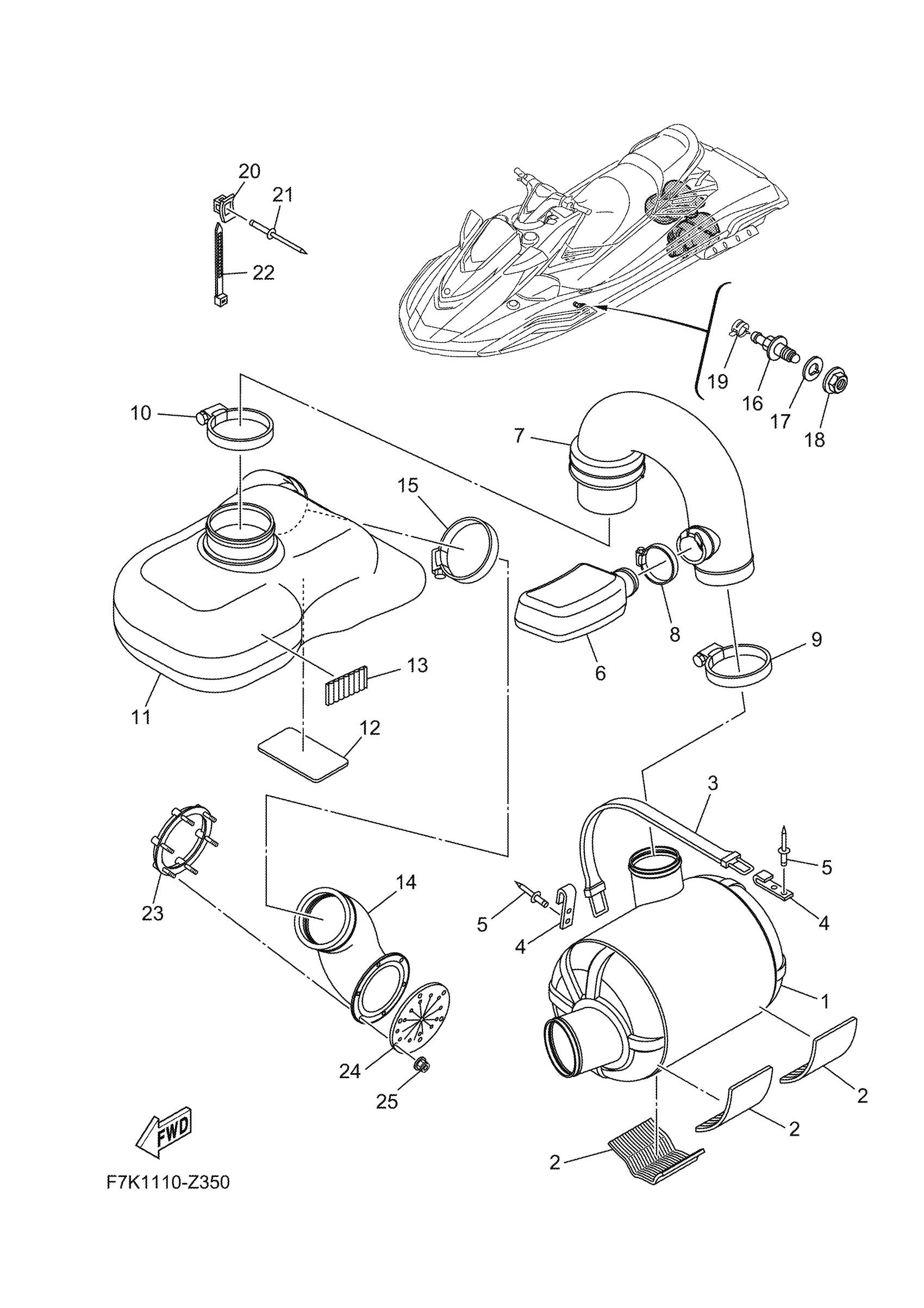

Yamaha FX1900AA (CRUISER HO) F7K1 2024 EXHAUST 3 Diagram

#

Description
Price

1

WATER LOCK COMP.

F4P-U7550-00-00

$322.71

2

PAD, BATTERY

F1S-U8221-00-00

$2.75

3

BAND, FUEL TANK

EW2-67821-00-00

$38.49

4

HOOK A

GA7-65772-00-00

$9.08

5

RIVET (EU0)

90267-48938-00

$5.00

6

RESONATOR 1

F7K-U753C-01-00

$13.63

7

HOSE, EXHAUST

F7K-U7555-01-00

$74.23

8

BAND, HOSE 70

90601-170UG-00

$5.67

9

HOSE CLAMP ASSY

90450-99801-00

$3.79

10

HOSE CLAMP ASSY

90450-99804-00

Unavailable

11

TANK, WATER

F7K-U4261-00-00

$99.98

12

PAD, BATTERY

F1S-U8221-00-00

$2.75

13

MAT 2

F1K-U759C-00-00

$1.72

14

HOSE,EXHAUST 3

F7K-U758D-00-00

$24.98

15

HOSE CLAMP ASSY

90450-99801-00

$3.79

16

PILOT, WATER

F2C-U753B-01-00

$2.44

17

GASKET

F2C-U7564-02-00

$4.77

18

NUT

F2C-U2733-00-00

$1.87

19

CLIP

90467-150A5-00

$2.64

20

BASE, CLAMP

F1W-U828M-00-00

$1.23

21

RIVET, BLIND

90267-48806-00

$2.00

22

CLAMP

90464-32801-00

$1.23

23

PLATE

F1S-U757B-01-00

$22.97

24

VALVE, EXHAUST

F1B-U751G-10-00

Unavailable

25

NUT, LOCK

F2N-U142L-00-00

$1.00
