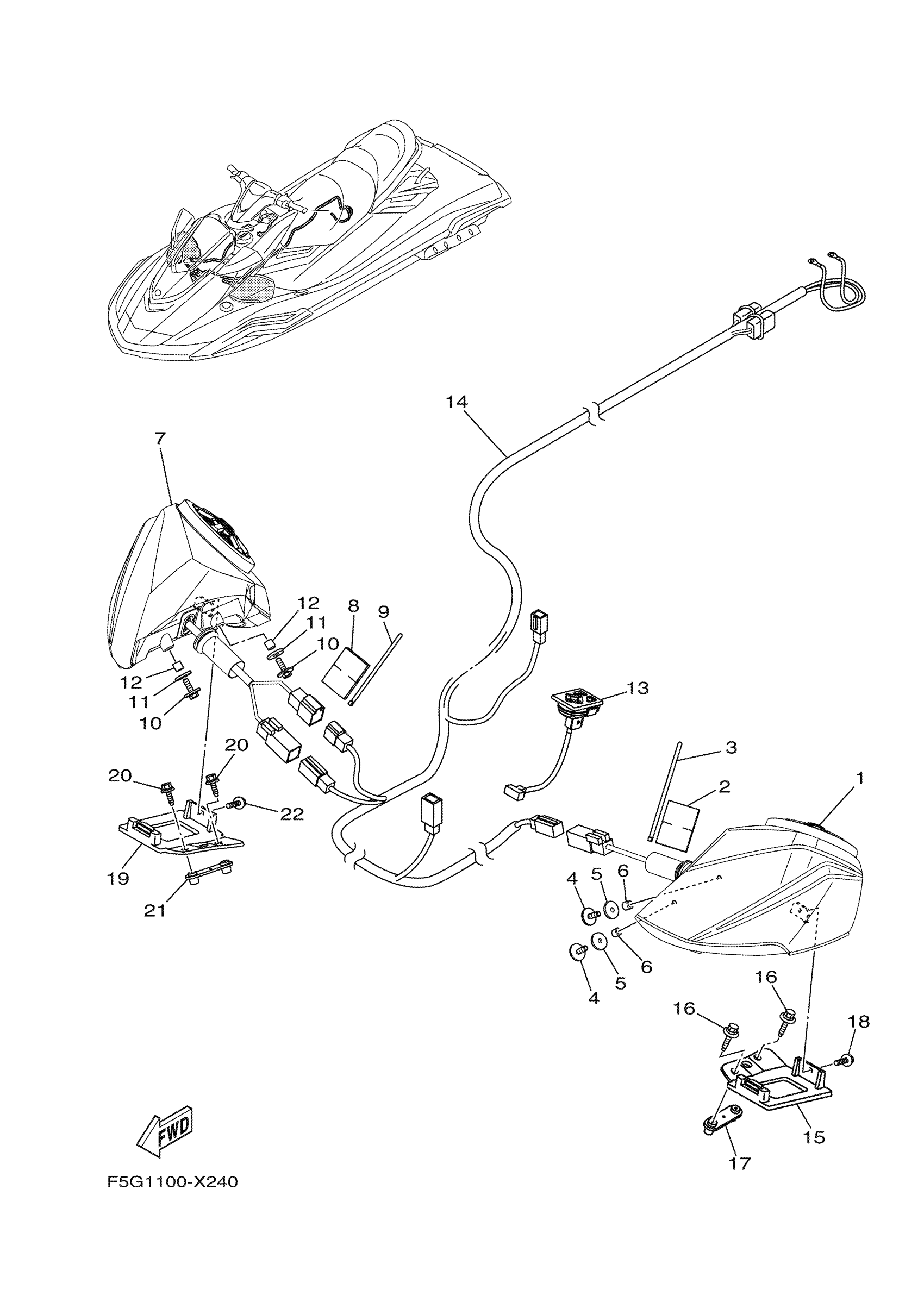

Yamaha FX1900AA (CRUISER HO) F7K1 2024 ELECTRICAL 4 Diagram

#

Description
Price

1

SPEAKER ASSY 1

F5G-U8102-00-00

$586.49

2

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

3

CLAMP

90464-32801-00

$1.23

4

BOLT

F3X-U13B4-00-00

$1.01

5

PACKING

F5G-U143K-00-00

$5.17

6

COLLAR

F5G-U0229-00-00

$2.87

7

SPEAKER ASSY 2

F5G-U8103-00-00

$982.25

8

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

9

CLAMP

90464-32801-00

$1.23

10

BOLT

F3X-U13B4-00-00

$1.01

11

PACKING

F5G-U143K-00-00

$5.17

12

COLLAR

F5G-U0229-00-00

$2.87

13

CONTROLLER, AUDIO

F5G-U81AJ-01-00

$92.41

14

WIRE, HARNESS

F5G-U8275-01-00

$181.80

15

BRACKET, SPEAKER 1

F5G-UE6GA-01-00

$29.53

16

BOLT

F3X-U13B4-00-00

$1.01

17

BRACKET

F5G-U0392-00-00

$13.62

18

BOLT, WITH WASHER

90119-06878-00

$3.43

19

BRACKET, SPEAKER 1

F5G-UE6GA-11-00

$29.53

20

BOLT

F3X-U13B4-00-00

$1.01

21

BRACKET

F5G-U0392-10-00

$13.62

22

BOLT, WITH WASHER

90119-06878-00

$3.43
