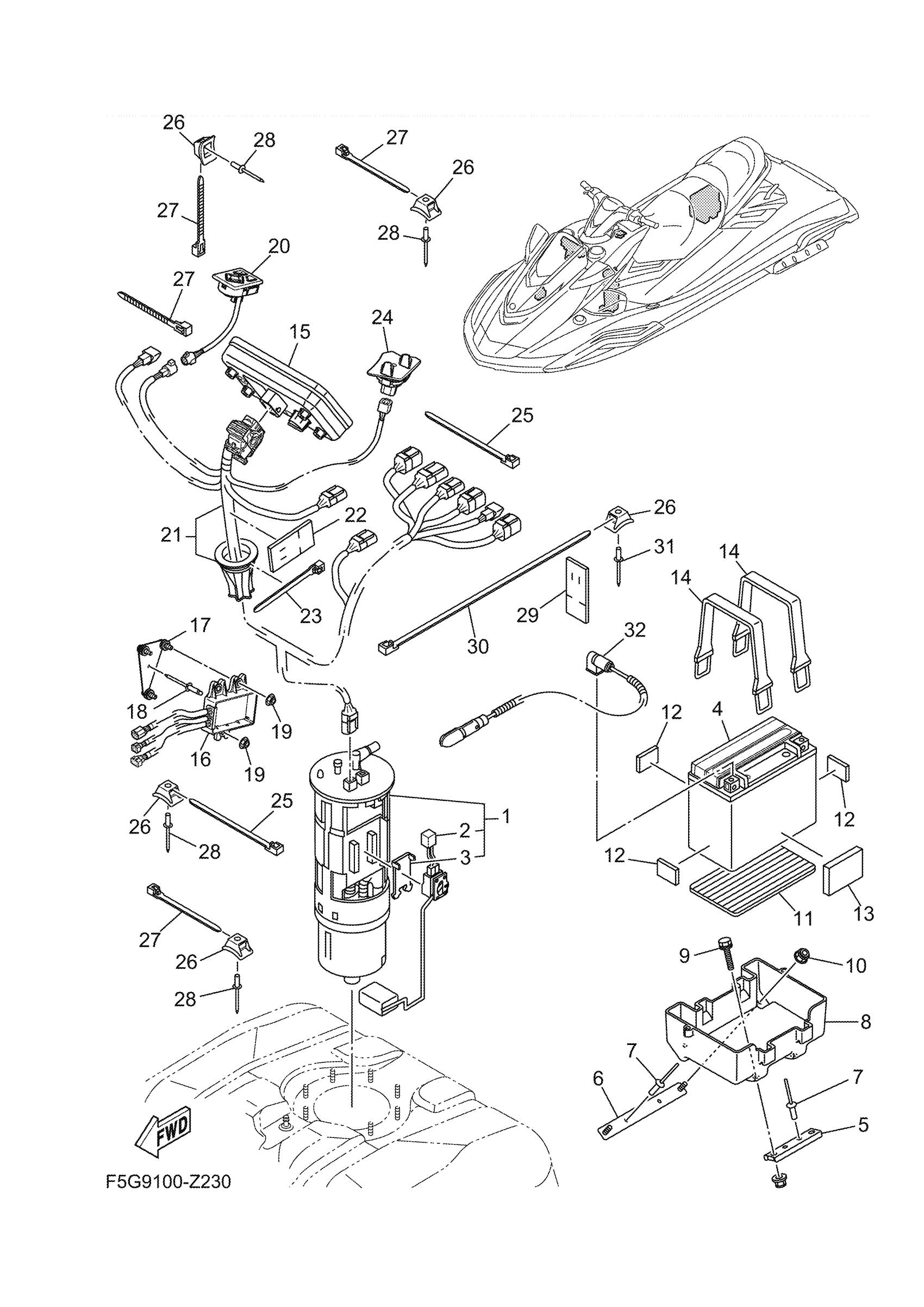

Yamaha FX1900AA (CRUISER HO) F7K1 2024 ELECTRICAL 3 Diagram

#

Description
Price

1

FUEL PUMP COMP.

6S5-13907-05-00

Unavailable

2

FUEL SENDER ASSY

6S5-682E0-10-00

Unavailable

3

DAMPER, STOPPER

60E-82556-10-00

Unavailable

4

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

Unavailable

5

PLATE, BASE 2

F2S-U8592-00-00

Unavailable

6

PLATE, BASE 3

F2S-U8593-00-00

Unavailable

7

RIVET (EU0)

90267-48938-00

Unavailable

8

CASE, BATTERY

F2S-U8211-00-00

Unavailable

9

BOLT, WITH WASHER

90119-06820-00

Unavailable

10

NUT, LOCK

F2N-U142L-00-00

Unavailable

11

PAD, BATTERY

F1S-U8221-00-00

Unavailable

12

PAD, BATTERY

EU0-U8221-31-00

$2.99

13

PACKING

F7K-U1743-00-00

$4.99

14

BAND, BATTERY 1

F4P-U821D-00-00

Unavailable

15

METER ASSY

F7K-U820A-00-00

Unavailable

16

CONVERTING UNIT

F5G-HA260-00-00

Unavailable

17

BRACKET

F5G-U826C-00-00

Unavailable

18

RIVET (EU0)

90267-48938-00

Unavailable

19

NUT, LOCK

F2N-U142L-00-00

Unavailable

20

SWITCH ASSY.

F5G-U8090-01-00

Unavailable

21

WIRE HARNESS,1

F5G-U0891-00-00

Unavailable

22

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

23

CLAMP

90464-32801-00

Unavailable

24

MIC ASSY

F5G-U827A-00-00

Unavailable

25

CLAMP

90464-32801-00

Unavailable

26

BASE, CLAMP

F1W-U828M-00-00

Unavailable

27

CLAMP

90464-32801-00

Unavailable

28

RIVET, BLIND

90267-48806-00

Unavailable

29

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

30

CLAMP

F5G-U4256-00-00

Unavailable

31

RIVET, BLIND

90267-48806-00

Unavailable

32

WIRE, MINUS LEAD

6JP-82116-00-00

Unavailable
