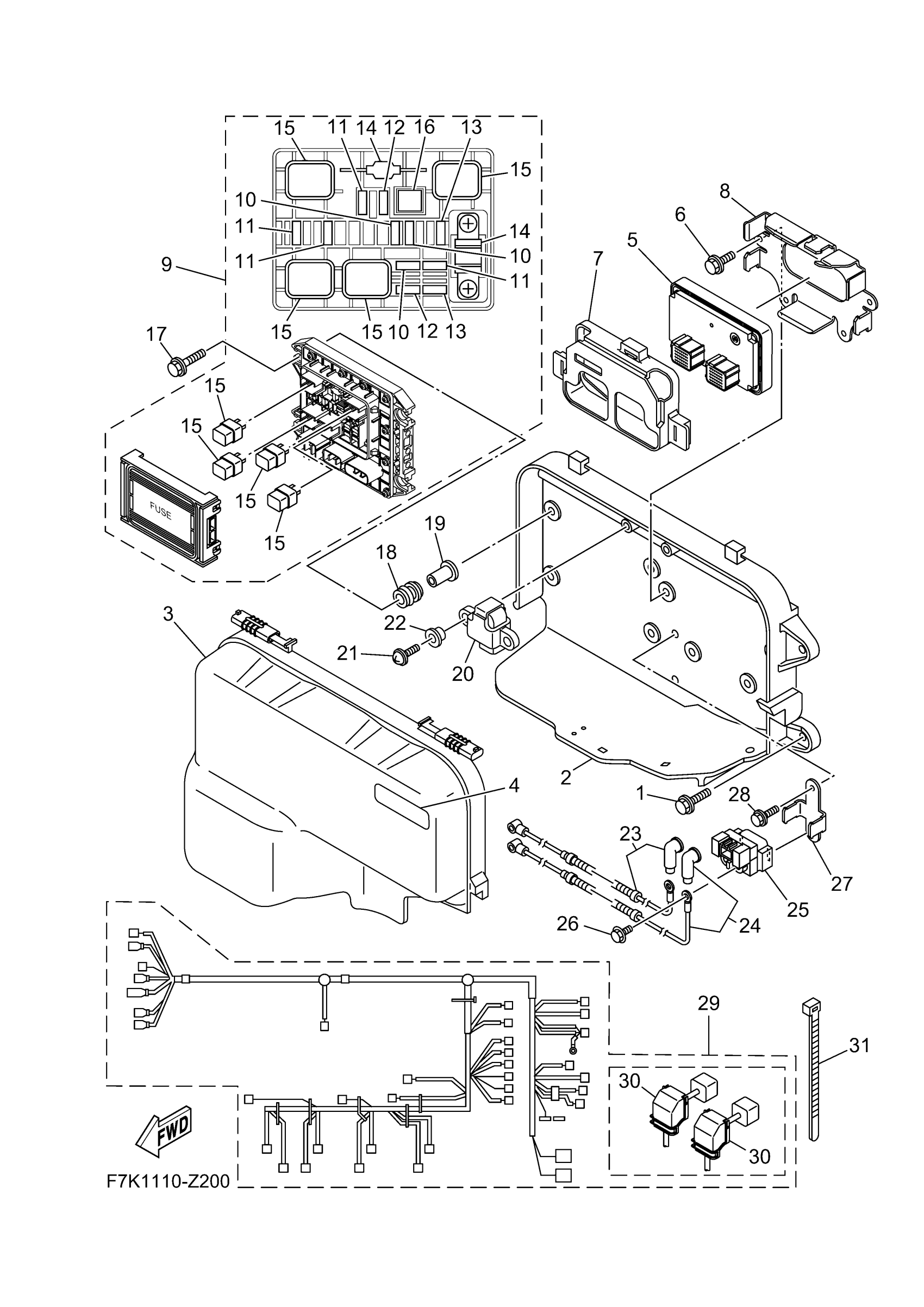

Yamaha FX1900AA (CRUISER HO) F7K1 2024 ELECTRICAL 1 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-089UT-00

Unavailable

2

PLATE

6CS-81845-11-00

Unavailable

3

COVER

6S5-81942-21-00

Unavailable

4

LABEL, CAUTION 7

60E-83627-00-00

Unavailable

5

ENGINE CONTROL UNI

6LE-8591A-00-00

$2,571.99

6

BOLT, FLANGE

95814-06012-00

Unavailable

7

GROMMET, ECU

6EY-8591S-00-00

Unavailable

8

BRACKET

6ET-81948-00-00

Unavailable

9

FUSE BOX ASSY

6EX-82170-02-00

Unavailable

10

. FUSE (3A)

67F-82151-30-00

Unavailable

11

. FUSE (10A)

67F-82151-40-00

Unavailable

12

FUSE

5JJ-82151-20-00

$7.99

13

FUSE

5JJ-82151-60-00

$7.99

14

. FUSE (50A)

6EX-82151-00-00

Unavailable

15

. RELAY ASSY

6EX-8195A-00-00

Unavailable

16

. PULLER, FUSE

6EX-2812A-00-00

Unavailable

17

BOLT, WITH WASHER

90119-06311-00

Unavailable

18

DAMPER, IGNITION C

6A0-82317-01-00

Unavailable

19

. COLLAR

90387-06119-00

Unavailable

20

SENSOR, LEAN ANGLE

6ET-82576-00-00

Unavailable

21

SCREW, TAPPING

97780-60025-00

Unavailable

22

COLLAR

90387-06M05-00

Unavailable

23

WIRE, PLUS LEAD

6JP-82115-00-00

Unavailable

24

WIRE, LEAD

6CS-82117-00-00

Unavailable

25

STARTER RELAY ASSY (2768102-A)

1B7-81940-00-00

Unavailable

26

BOLT, HEXAGON W/W DEEP RECESS

97E95-06612-00

Unavailable

27

STAY, RELAY

6CS-81953-00-00

Unavailable

28

BOLT, FLANGE

95814-06012-00

Unavailable

29

WIRE HARNESS ASSY 1

6LE-8259L-02-00

Unavailable

30

. COVER, CONNECTOR

6EM-82599-00-00

Unavailable

31

CLAMP

90465-14M66-00

Unavailable
