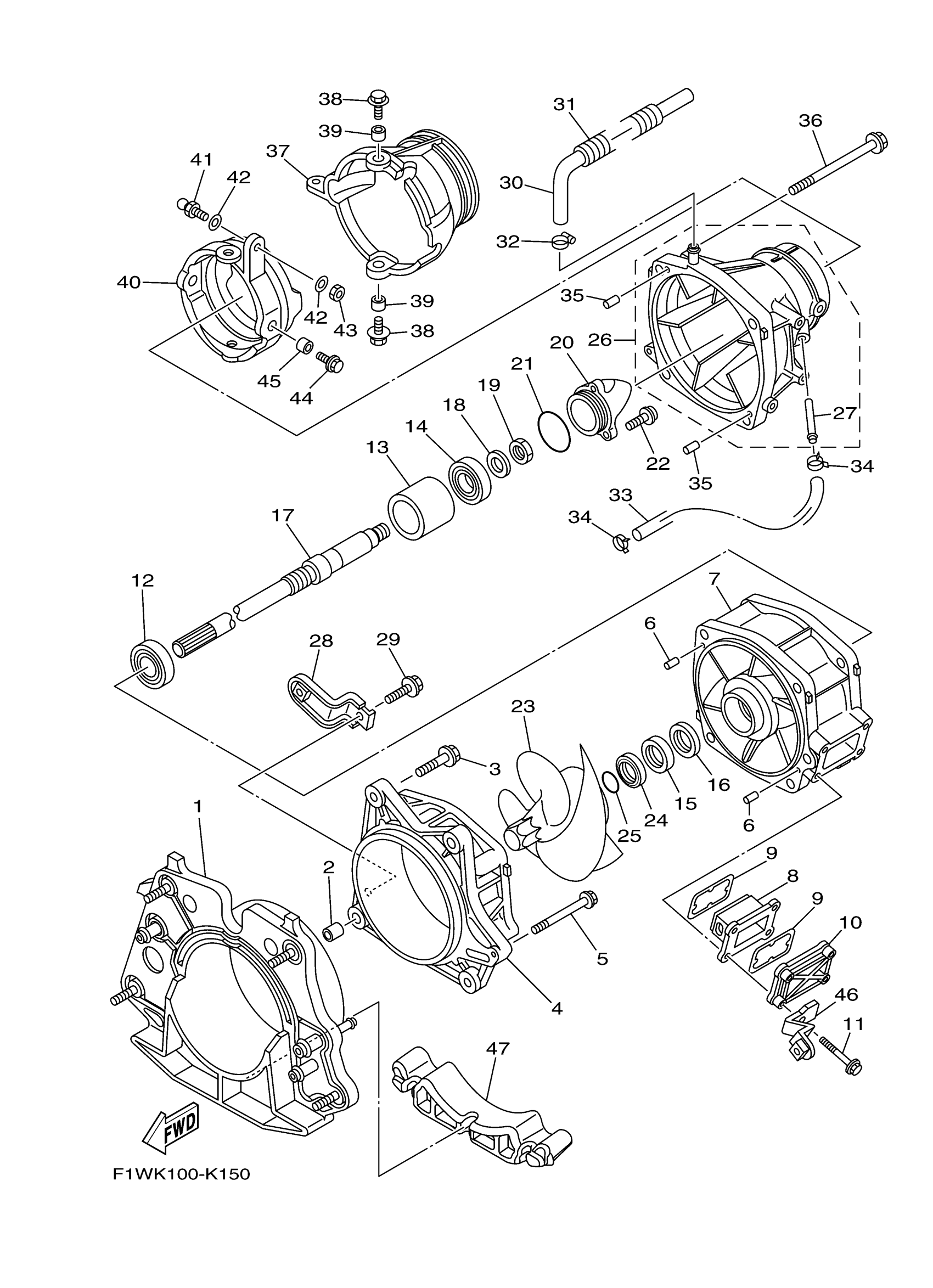

Yamaha FX1800K (FX SUPER HIGH OUTPUT) F1WN 2011 JET UNIT 1 Diagram

#

Description
Price

1

PLATE, TRANSOM

6S5-G5831-02-00

$137.86

2

PIN, DOWEL(4JT)

99590-14016-00

$3.41

3

BOLT, WITH WASHER

90119-10811-00

$1.37

4

HOUSING, IMPELLER

6CR-R1312-00-00

$107.60

5

BOLT, WITH WASHER

90119-06894-00

$1.37

6

PIN, DOWEL (614)

93606-12019-00

$3.05

7

DUCT, IMPELLER

6CR-R1315-00-00

$93.30

8

FILTER

66V-46882-00-00

$5.91

9

. O-RING

66V-42414-00-00

$5.18

10

COVER, WATER INLET 1

66V-45214-00-00

Unavailable

11

BOLT,WITH WASHER

90119-06898-00

$3.43

12

BEARING

93306-20654-00

$62.23

13

SPACER 1

6S5-45538-00-00

$28.52

14

BEARING

93306-30582-00

$48.16

15

. OIL SEAL

93102-31009-00

$80.29

16

. OIL SEAL

93101-31001-00

$32.99

17

SHAFT, DRIVE

6S5-G5511-00-00

$276.63

18

WASHER

9290P-20600-00

$0.57

19

NUT

90170-20802-00

$14.35

20

CAP

6S5-51326-00-00

Unavailable

21

O-RING

93210-54010-00

$2.64

22

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.16

23

IMPELLER

6S5-R1321-04-00

$281.52

24

SPACER

6BH-51348-01-00

$61.99

25

O-RING (30X)

93210-30611-00

Unavailable

26

NOZZLE

6S5-51318-00-94

$206.05

27

. NIPPLE,HOSE

63M-51334-00-00

$21.95

28

BRACKET

6B6-R1343-00-00

Unavailable

29

BOLT,WITH WASHER

90119-06890-00

$1.07

30

HOSE (L310)

90445-16806-00

$6.82

31

TUBE (L230)

90447-19015-00

$3.64

32

BAND, HOSE 18

90601-118UF-00

$2.07

33

HOSE (L330)

90445-14804-00

$1.52

34

CLIP

90467-14803-00

$2.58

35

PIN, DOWEL (614)

93606-12019-00

$3.05

36

BOLT, WITH WASHER

90119-10807-00

$5.44

37

NOZZLE, DEFLECTOR

6S5-R1313-01-00

$23.67

38

BOLT, WITH WASHER

90119-08852-00

$3.79

39

COLLAR(6R7)

90387-08M06-00

Unavailable

40

RING,TRIM

60T-51190-00-94

$127.26

41

STUD, JOINT BALL

GH3-U146E-00-00

$6.66

42

WASHER,PLATE

90201-068M4-00

Unavailable

43

NUT

9538R-06700-00

$1.01

44

BOLT, WITH WASHER

90119-08852-00

$3.79

45

COLLAR(6R7)

90387-08M06-00

Unavailable

46

BRACKET 2

6B6-51342-00-00

Unavailable

47

SPACER

F1W-U72C0-01-00

Unavailable
